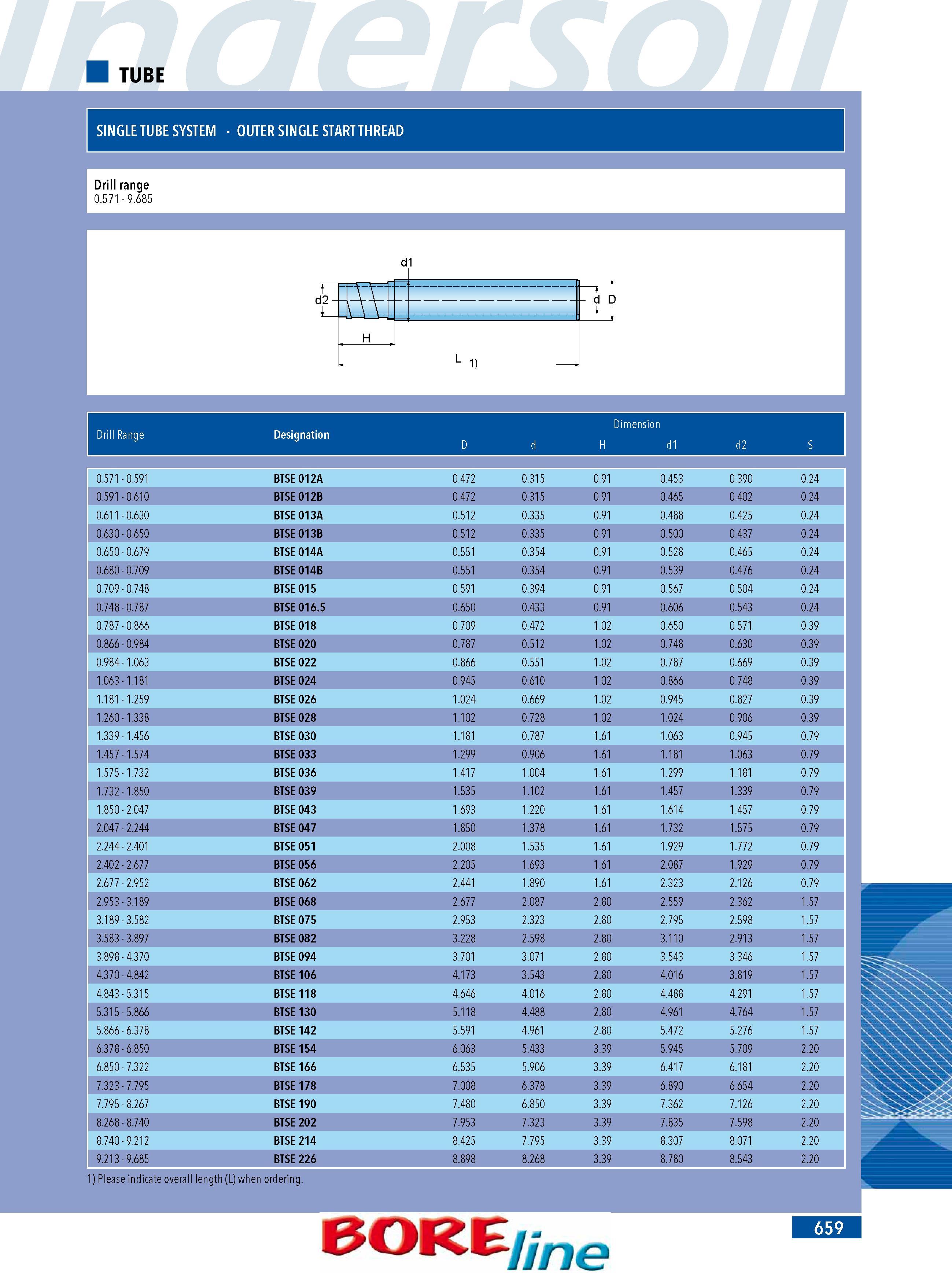

TUBE SINGLE TUBE SYSTEM - OUTER SINGLE START THREAD Drill range 0.571 - 9.685 Dimension Designation D d H d1 d2 S 1) Please indicate overall length (L) when ordering. 0.571 - 0.591 BTSE 012A 0.472 0.315 0.91 0.453 0.390 0.24 0.591 - 0.610 BTSE 012B 0.472 0.315 0.91 0.465 0.402 0.24 0.611 - 0.630 BTSE 013A 0.512 0.335 0.91 0.488 0.425 0.24 0.630 - 0.650 BTSE 013B 0.512 0.335 0.91 0.500 0.437 0.24 0.650 - 0.679 BTSE 014A 0.551 0.354 0.91 0.528 0.465 0.24 0.680 - 0.709 BTSE 014B 0.551 0.354 0.91 0.539 0.476 0.24 0.709 - 0.748 BTSE 015 0.591 0.394 0.91 0.567 0.504 0.24 0.748 - 0.787 BTSE 016.5 0.650 0.433 0.91 0.606 0.543 0.24 0.787 - 0.866 BTSE 018 0.709 0.472 1.02 0.650 0.571 0.39 0.866 - 0.984 BTSE 020 0.787 0.512 1.02 0.748 0.630 0.39 0.984 - 1.063 BTSE 022 0.866 0.551 1.02 0.787 0.669 0.39 1.063 - 1.181 BTSE 024 0.945 0.610 1.02 0.866 0.748 0.39 1.181 - 1.259 BTSE 026 1.024 0.669 1.02 0.945 0.827 0.39 1.260 - 1.338 BTSE 028 1.102 0.728 1.02 1.024 0.906 0.39 1.339 - 1.456 BTSE 030 1.181 0.787 1.61 1.063 0.945 0.79 1.457 - 1.574 BTSE 033 1.299 0.906 1.61 1.181 1.063 0.79 1.575 - 1.732 BTSE 036 1.417 1.004 1.61 1.299 1.181 0.79 1.732 - 1.850 BTSE 039 1.535 1.102 1.61 1.457 1.339 0.79 1.850 - 2.047 BTSE 043 1.693 1.220 1.61 1.614 1.457 0.79 2.047 - 2.244 BTSE 047 1.850 1.378 1.61 1.732 1.575 0.79 2.244 - 2.401 BTSE 051 2.008 1.535 1.61 1.929 1.772 0.79 2.402 - 2.677 BTSE 056 2.205 1.693 1.61 2.087 1.929 0.79 2.677 - 2.952 BTSE 062 2.441 1.890 1.61 2.323 2.126 0.79 2.953 - 3.189 BTSE 068 2.677 2.087 2.80 2.559 2.362 1.57 3.189 - 3.582 BTSE 075 2.953 2.323 2.80 2.795 2.598 1.57 3.583 - 3.897 BTSE 082 3.228 2.598 2.80 3.110 2.913 1.57 3.898 - 4.370 BTSE 094 3.701 3.071 2.80 3.543 3.346 1.57 4.370 - 4.842 BTSE 106 4.173 3.543 2.80 4.016 3.819 1.57 4.843 - 5.315 BTSE118 4.646 4.016 2.80 4.488 4.291 1.57 5.315 - 5.866 BTSE130 5.118 4.488 2.80 4.961 4.764 1.57 5.866 - 6.378 BTSE 142 5.591 4.961 2.80 5.472 5.276 1.57 6.378 - 6.850 BTSE154 6.063 5.433 3.39 5.945 5.709 2.20 6.850 - 7.322 BTSE 166 6.535 5.906 3.39 6.417 6.181 2.20 7.323 - 7.795 BTSE 178 7.008 6.378 3.39 6.890 6.654 2.20 7.795 - 8.267 BTSE190 7.480 6.850 3.39 7.362 7.126 2.20 8.268 - 8.740 BTSE 202 7.953 7.323 3.39 7.835 7.598 2.20 8.740 - 9.212 BTSE 214 8.425 7.795 3.39 8.307 8.071 2.20 9.213 - 9.685 BTSE 226 8.898 8.268 3.39 8.780 8.543 2.20
