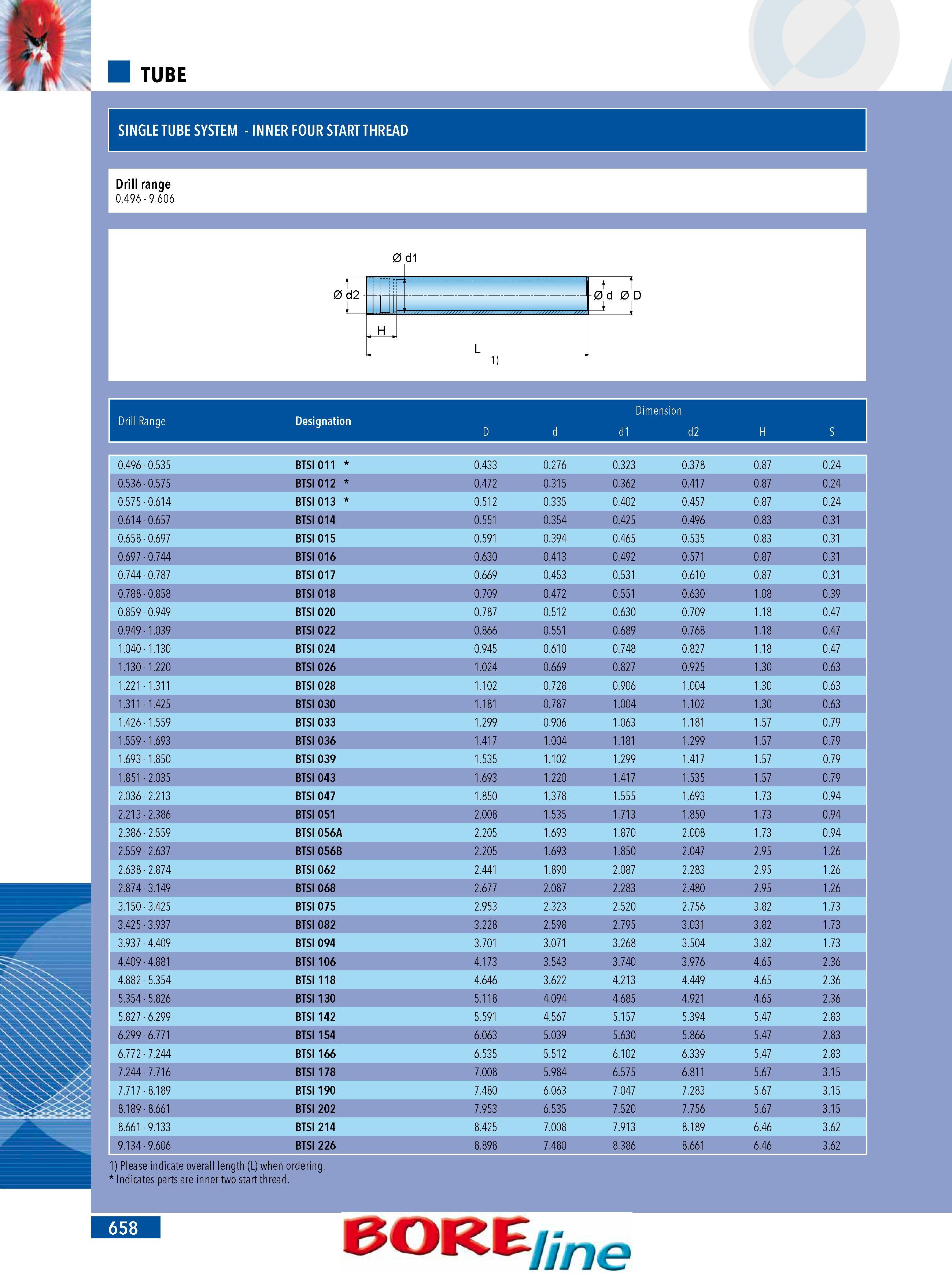

TUBE SINGLE TUBE SYSTEM - INNER FOUR START THREAD Drill range 0.496 - 9.606 Dimension Designation D d d1 d2 H S 0.496 - 0.535 BTSI 011 0.433 0.276 0.323 0.378 0.87 0.24 0.536 - 0.575 BTSI 012 0.472 0.315 0.362 0.417 0.87 0.24 0.575 - 0.614 BTSI 013 0.512 0.335 0.402 0.457 0.87 0.24 0.614 - 0.657 BTSI014 0.551 0.354 0.425 0.496 0.83 0.31 0.658 - 0.697 BTSI 015 0.591 0.394 0.465 0.535 0.83 0.31 0.697 - 0.744 BTSI 016 0.630 0.413 0.492 0.571 0.87 0.31 0.744 - 0.787 BTSI 017 0.669 0.453 0.531 0.610 0.87 0.31 0.788 - 0.858 BTSI 018 0.709 0.472 0.551 0.630 1.08 0.39 0.859 - 0.949 BTSI 020 0.787 0.512 0.630 0.709 1.18 0.47 0.949 - 1.039 BTSI 022 0.866 0.551 0.689 0.768 1.18 0.47 1.040 - 1.130 BTSI 024 0.945 0.610 0.748 0.827 1.18 0.47 1.130 - 1.220 BTSI 026 1.024 0.669 0.827 0.925 1.30 0.63 1.221 - 1.311 BTSI 028 1.102 0.728 0.906 1.004 1.30 0.63 1.311 - 1.425 BTSI 030 1.181 0.787 1.004 1.102 1.30 0.63 1.426 - 1.559 BTSI 033 1.299 0.906 1.063 1.181 1.57 0.79 1.559 - 1.693 BTSI 036 1.417 1.004 1.181 1.299 1.57 0.79 1.693 - 1.850 BTSI 039 1.535 1.102 1.299 1.417 1.57 0.79 1.851 - 2.035 BTSI 043 1.693 1.220 1.417 1.535 1.57 0.79 2.036 - 2.213 BTSI 047 1.850 1.378 1.555 1.693 1.73 0.94 2.213 - 2.386 BTSI 051 2.008 1.535 1.713 1.850 1.73 0.94 2.386 - 2.559 BTSI 056A 2.205 1.693 1.870 2.008 1.73 0.94 2.559 - 2.637 BTSI 056B 2.205 1.693 1.850 2.047 2.95 1.26 2.638 - 2.874 BTSI 062 2.441 1.890 2.087 2.283 2.95 1.26 2.874 - 3.149 BTSI 068 2.677 2.087 2.283 2.480 2.95 1.26 3.150 - 3.425 BTSI 075 2.953 2.323 2.520 2.756 3.82 1.73 3.425 - 3.937 BTSI 082 3.228 2.598 2.795 3.031 3.82 1.73 3.937 - 4.409 BTSI 094 3.701 3.071 3.268 3.504 3.82 1.73 4.409 - 4.881 BTSI 106 4.173 3.543 3.740 3.976 4.65 2.36 4.882 - 5.354 BTSI 118 4.646 3.622 4.213 4.449 4.65 2.36 5.354 - 5.826 BTSI 130 5.118 4.094 4.685 4.921 4.65 2.36 5.827 - 6.299 BTSI 142 5.591 4.567 5.157 5.394 5.47 2.83 6.299 - 6.771 BTSI 154 6.063 5.039 5.630 5.866 5.47 2.83 6.772 - 7.244 BTSI 166 6.535 5.512 6.102 6.339 5.47 2.83 7.244 - 7.716 BTSI 178 7.008 5.984 6.575 6.811 5.67 3.15 7.717 - 8.189 BTSI 190 7.480 6.063 7.047 7.283 5.67 3.15 8.189 - 8.661 BTSI 202 7.953 6.535 7.520 7.756 5.67 3.15 8.661 - 9.133 BTSI 214 8.425 7.008 7.913 8.189 6.46 3.62 9.134 - 9.606 BTSI 226 8.898 7.480 8.386 8.661 6.46 3.62 1) Please indicate overall length (L) when ordering. Indicates parts are inner two start thread. 658 60KE ne
