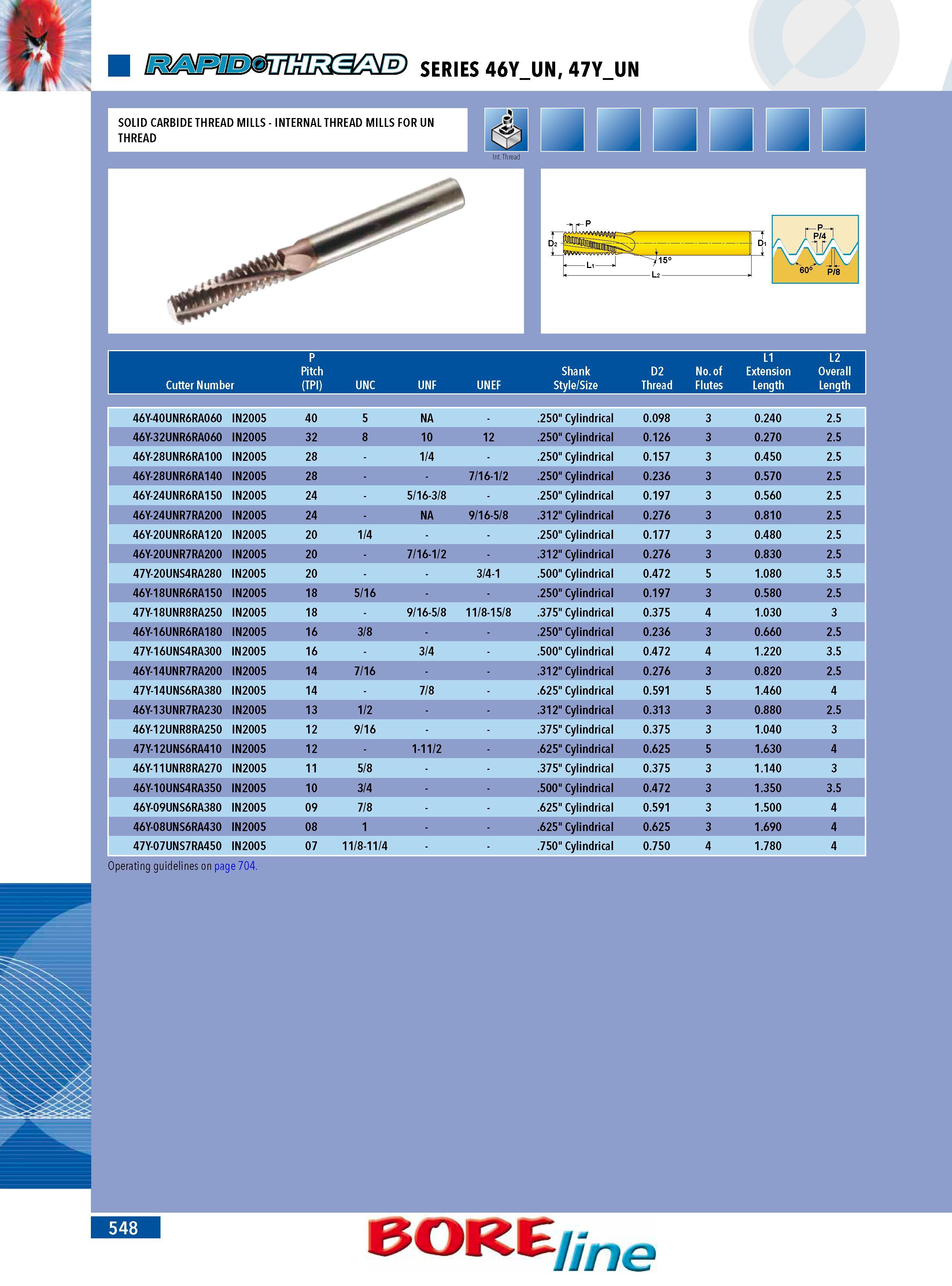

546 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.548

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 548 0546 Lab2u

SERIES 46YUN 47YUN rp 4i rJL 60 p 8 P L1 L2 Pitch Shank D2 No. of Extension Overall Cutter Number (TPI) UNC UNF UNEF Style Size Thread Flutes Length Length Operating guidelines on page 704. 46Y-40UNR6RA060 IN2005 40 5 NA .250" Cyl indrical 0.098 3 0.240 2.5 46Y-32UNR6RA060 IN2005 32 8 10 12 .250" Cyl indrical 0.126 3 0.270 2.5 46Y-28UNR6RA100 IN2005 28 1 4 .250" Cyl indrical 0.157 3 0.450 2.5 46Y-28UNR6RA140 IN2005 28 7 16-1 2 .250" Cyl indrical 0.236 3 0.570 2.5 46Y-24UNR6RA150 IN2005 24 5 16-3 8 .250" Cyl indrical 0.197 3 0.560 2.5 46Y-24UNR7RA200 IN2005 24 NA 9 16-5 8 .312" Cyl indrical 0.276 3 0.810 2.5 46Y-20UNR6RA120 IN2005 20 1 4 .250" Cyl indrical 0.177 3 0.480 2.5 46Y-20UNR7RA200 IN2005 20 7 16-1 2 .312" Cyl indrical 0.276 3 0.830 2.5 47Y-20UNS4RA280 IN2005 20 3 4-1 .500" Cyl indrical 0.472 5 1.080 3.5 46Y-18UNR6RA150 IN2005 18 5 16 .250" Cyl indrical 0.197 3 0.580 2.5 47Y-18UNR8RA250 IN2005 18 9 16-5 8 11 8-15 8 .375" Cyl indrical 0.375 4 1.030 3 46Y-16UNR6RA180 IN2005 16 3 8 .250" Cyl indrical 0.236 3 0.660 2.5 47Y-16UNS4RA300 IN2005 16 3 4 .500" Cyl indrical 0.472 4 1.220 3.5 46Y-14UNR7RA200 IN2005 14 7 16 .312" Cyl indrical 0.276 3 0.820 2.5 47Y-14UNS6RA380 IN2005 14 7 8 .625" Cyl indrical 0.591 5 1.460 4 46Y-13UNR7RA230 IN2005 13 1 2 .312" Cyl indrical 0.313 3 0.880 2.5 46Y-12UNR8RA250 IN2005 12 9 16 .375" Cyl indrical 0.375 3 1.040 3 47Y-12UNS6RA410 IN2005 12 1-11 2 .625" Cyl indrical 0.625 5 1.630 4 46Y-11UNR8RA270 IN2005 11 5 8 .375" Cyl indrical 0.375 3 1.140 3 46Y-10UNS4RA350 IN2005 10 3 4 .500" Cyl indrical 0.472 3 1.350 3.5 46Y-09UNS6RA380 IN2005 09 7 8 .625" Cyl ndrical 0.591 3 1.500 4 46Y-08UNS6RA430 IN2005 08 1 .625" Cyl ndrical 0.625 3 1.690 4 47Y-07UNS7RA450 IN2005 07 11 8-11 4 .750" Cyl ndrical 0.750 4 1.780 4
