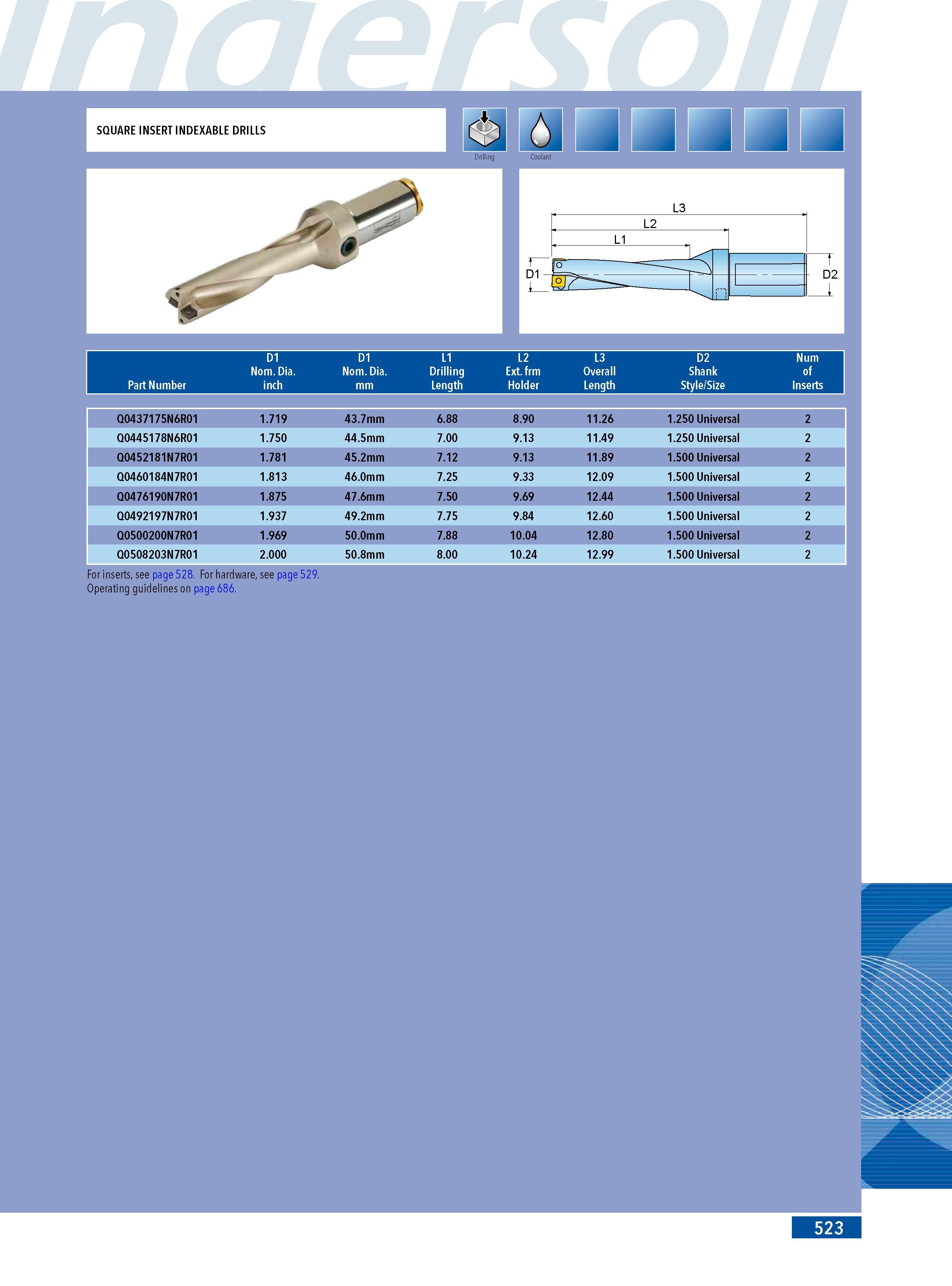

D1 D1 L1 L2 L3 D2 Num Nom. Dia. Nom. Dia. Drilling Ext. frm Overall Shank of Part Number inch mm Length Holder Length Style Size Inserts Q0437175N6R01 1.719 43.7mm 6.88 8.90 11.26 1.250 Universal 2 Q0445178N6R01 1.750 44.5mm 7.00 9.13 11.49 1.250 Universal 2 Q0452181N7R01 1.781 45.2mm 7.12 9.13 11.89 1.500 Universal 2 Q0460184N7R01 1.813 46.0mm 7.25 9.33 12.09 1.500 Universal 2 Q0476190N7R01 1.875 47.6mm 7.50 9.69 12.44 1.500 Universal 2 Q0492197N7R01 1.937 49.2mm 7.75 9.84 12.60 1.500 Universal 2 Q0500200N7R01 1.969 50.0mm 7.88 10.04 12.80 1.500 Universal 2 Q0508203N7R01 2.000 50.8mm 8.00 10.24 12.99 1.500 Universal 2 For inserts see page 528. For hardware see page 529. Operating guidelines on page 686. 523
