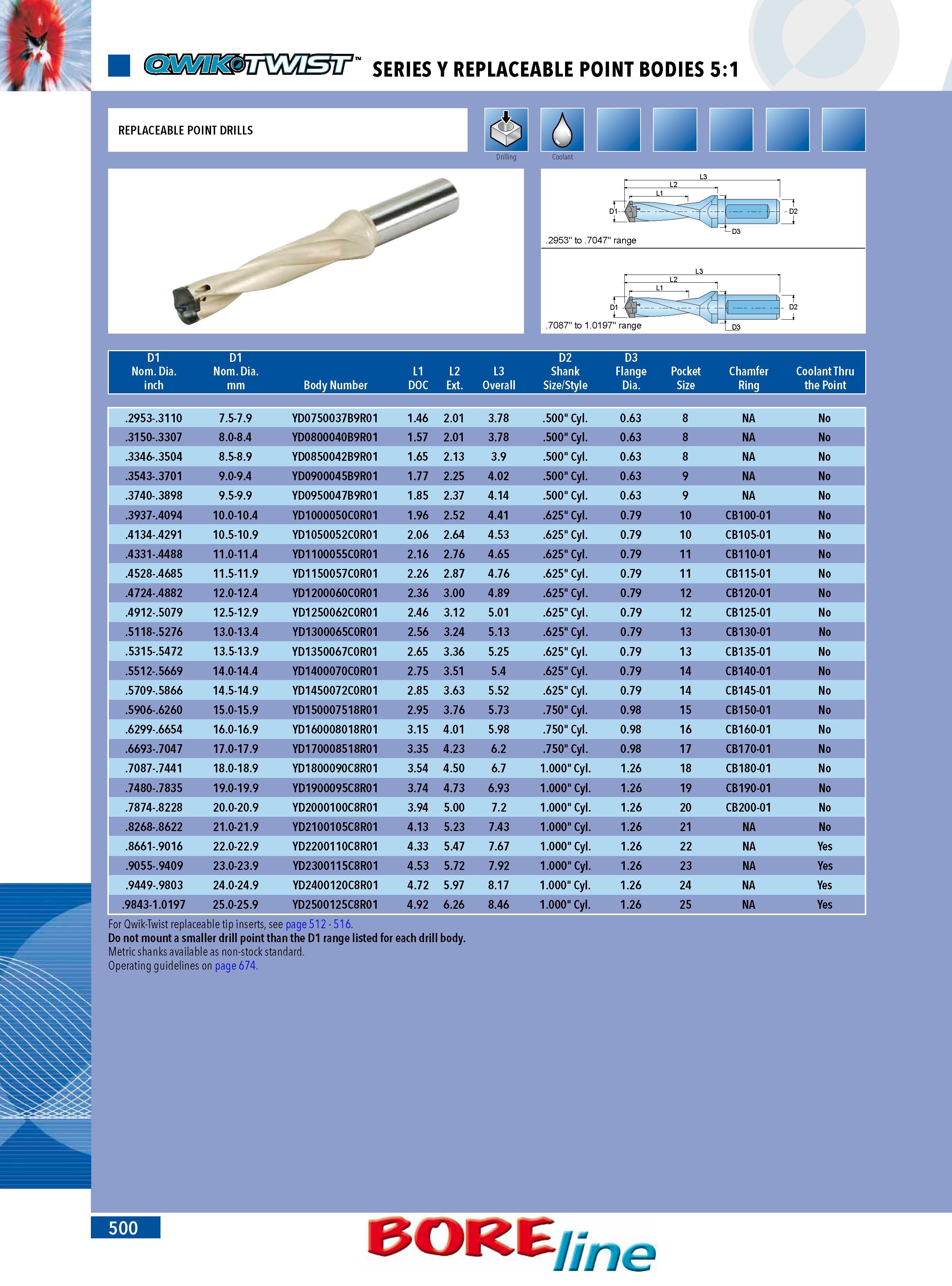

498 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.500

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 500 0498 Lab2u

a .4331-.4488 11.0-11.4 YD1100055C0R01 2.16 2.76 4.65 .625" Cyl. 0.79 11 CB110-01 No .4528-.4685 11.5-11.9 YD1150057C0R01 2.26 2.87 4.76 .625" Cyl. 0.79 11 CB115-01 No .4724-.4882 12.0-12.4 YD1200060C0R01 2.36 3.00 4.89 .625" Cyl. 0.79 12 CB120-01 No .4912-.5079 12.5-12.9 YD1250062C0R01 2.46 3.12 5.01 .625" Cyl. 0.79 12 CB125-01 No .5118-.5276 13.0-13.4 YD1300065C0R01 2.56 3.24 5.13 .625" Cyl. 0.79 13 CB130-01 No .5315-.5472 13.5-13.9 YD1350067C0R01 2.65 3.36 5.25 .625" Cyl. 0.79 13 CB135-01 No .5512-.5669 14.0-14.4 YD1400070C0R01 2.75 3.51 5.4 .625" Cyl. 0.79 14 CB140-01 No .5709-.5866 14.5-14.9 YD1450072C0R01 2.85 3.63 5.52 .625" Cyl. 0.79 14 CB145-01 No .5906-.6260 15.0-15.9 YD150007518R01 2.95 3.76 5.73 .750" Cyl. 0.98 15 CB150-01 No .6299-.6654 16.0-16.9 YD160008018R01 3.15 4.01 5.98 .750" Cyl. 0.98 16 CB160-01 No .6693-.7047 17.0-17.9 YD170008518R01 3.35 4.23 6.2 .750" Cyl. 0.98 17 CB170-01 No .7087-.7441 18.0-18.9 YD1800090C8R01 3.54 4.50 6.7 1.000" Cyl. 1.26 18 CB180-01 No .7480-.7835 19.0-19.9 YD1900095C8R01 3.74 4.73 6.93 1.000" Cyl. 1.26 19 CB190-01 No .7874-.8228 20.0-20.9 YD2000100C8R01 3.94 5.00 7.2 1.000" Cyl. 1.26 20 CB200-01 No .8268-.8622 21.0-21.9 YD2100105C8R01 4.13 5.23 7.43 1.000" Cyl. 1.26 21 NA No .8661-.9016 22.0-22.9 YD2200110C8R01 4.33 5.47 7.67 1.000" Cyl. 1.26 22 NA Yes .9055-.9409 23.0-23.9 YD2300115C8R01 4.53 5.72 7.92 1.000" Cyl. 1.26 23 NA Yes .9449-.9803 24.0-24.9 YD2400120C8R01 4.72 5.97 8.17 1.000" Cyl. 1.26 24 NA Yes .9843-1.0197 25.0-25.9 YD2500125C8R01 4.92 6.26 8.46 1.000" Cyl. 1.26 25 NA Yes For Qwik-Twist replaceable tip inserts see page 512 - 516. Do not mount a smaller drill point than the D1 range listed for each drill body. Metric shanks available as non-stock standard. Operating guidelines on page 674. 500 BOKBine anmism SERIES Y REPLACEABLE POINT BODIES 5:1 REPLACEABLE POINT DRILLS Drilling D1 Nom. Dia. inch D1 Nom. Dia. mm Body Number D2 L1 L2 L3 Shank DOC Ext. Overall Size Style .2953-.3110 7.5-7.9 YD0750037B9R01 1.46 2.01 3.78 .500" Cyl. 0.63 8 NA No .3150-.3307 8.0-8.4 YD0800040B9R01 1.57 2.01 3.78 .500" Cyl. 0.63 8 NA No .3346-.3504 8.5-8.9 YD0850042B9R01 1.65 2.13 3.9 .500" Cyl. 0.63 8 NA No .3543-.3701 9.0-9.4 YD0900045B9R01 1.77 2.25 4.02 .500" Cyl. 0.63 9 NA No .3740-.3898 9.5-9.9 YD0950047B9R01 1.85 2.37 4.14 .500" Cyl. 0.63 9 NA No .3937-.4094 10.0-10.4 YD1000050C0R01 1.96 2.52 4.41 .625" Cyl. 0.79 10 CB100-01 No .4134-.4291 10.5-10.9 YD1050052C0R01 2.06 2.64 4.53 .625" Cyl CB105-01
