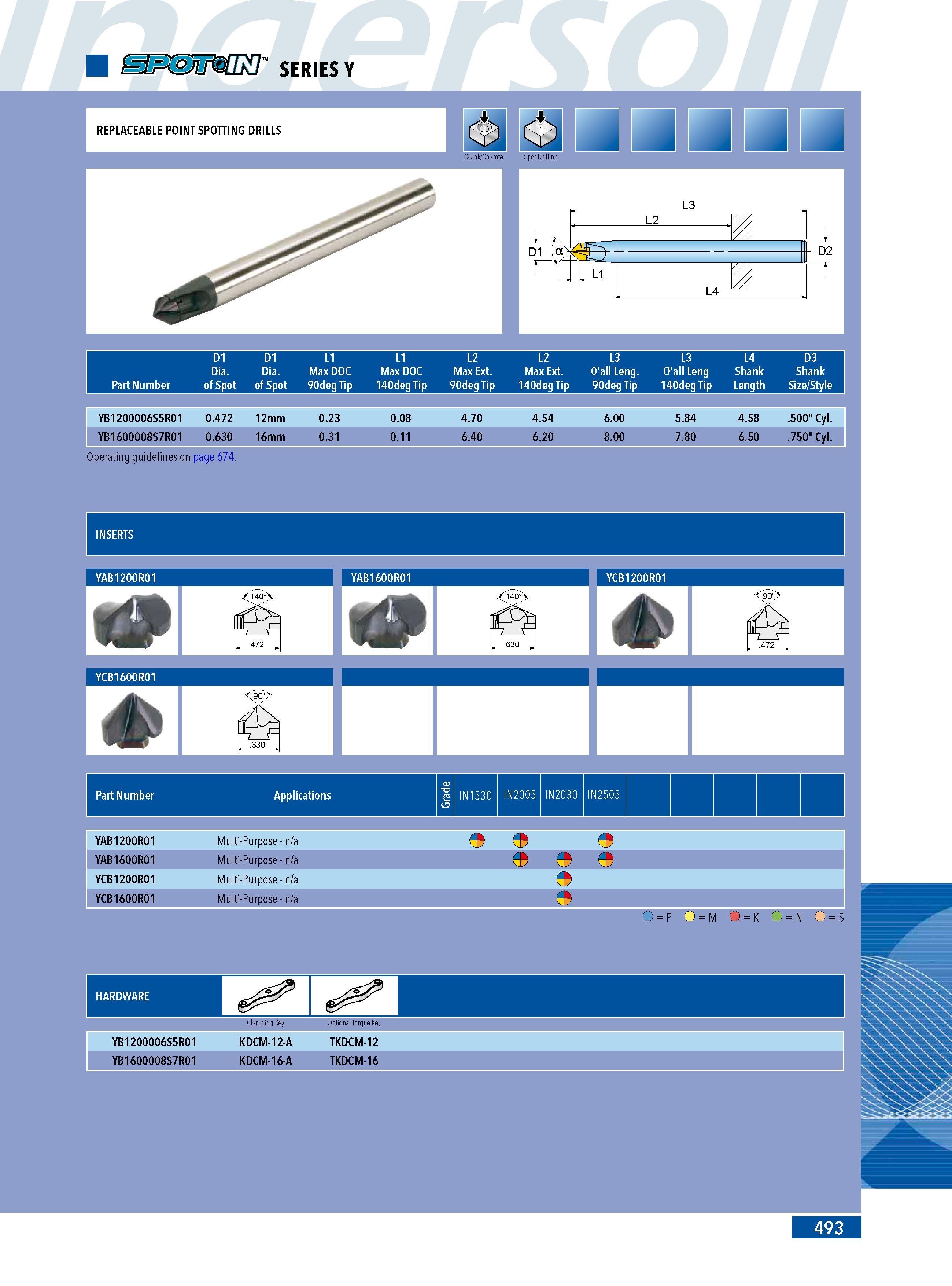

SERIES Y D1 D1 L1 L1 L2 L2 L3 L3 L4 D3 Dia. Dia. Max DOC Max DOC Max Ext. Max Ext. 0'all Leng. O'all Leng Shank Shank Part Number of Spot of Spot 90deg Tip 140deg Tip 90deg Tip 140deg Tip 90deg Tip 140deg Tip Length Size Style YB1200006S5R01 0.472 12mm 0.23 0.08 4.70 4.54 6.00 5.84 4.58 .500" Cyl. YB1600008S7R01 0.630 16mm 0.31 0.11 6.40 6.20 8.00 7.80 6.50 .750" Cyl. Operating guidelines on page 674. YAB1200R01 YAB1600R01 YCB1200R01 YAB1200R01 Multi-Purpose - n a YAB1600R01 Multi-Purpose - n a YCB1200R01 Multi-Purpose - n a YCB1600R01 Multi-Purpose - n a O P O M O K O N O S HARDWARE Clamping Key Optional Torque Key YB1200006S5R01 KDCM-12-A TKDCM-12 YB1600008S7R01 KDCM-16-A TKDCM-16 493
