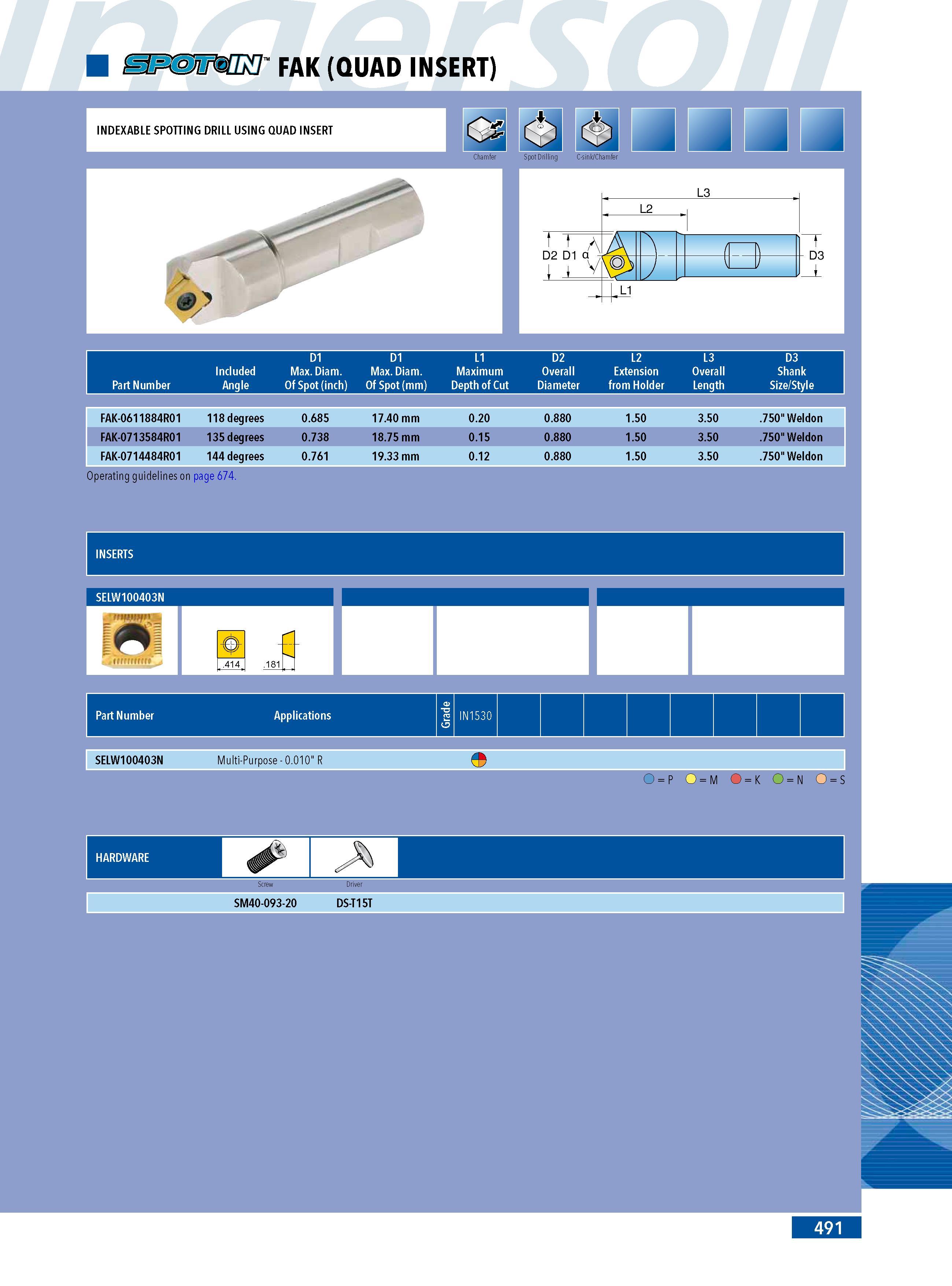

FAK (QUAD INSERT) D1 D1 L1 D2 L2 L3 D3 Included Max. Diam. Max. Diam. Maximum Overall Extension Overall Shank Part Number Angle Of Spot (inch) Of Spot (mm) Depth of Cut Diameter from Holder Length Size Style FAK-0611884R01 118 degrees 0.685 17.40 mm 0.20 0.880 1.50 3.50 .750" Weldon FAK-0713584R01 135 degrees 0.738 18.75 mm 0.15 0.880 1.50 3.50 .750" Weldon FAK-0714484R01 144 degrees 0.761 19.33 mm 0.12 0.880 1.50 3.50 .750" Weldon Operating guidelines on page 674. INSERTS & Part Number Applications 1 IN1530 SELW100403N Multi-Purpose - 0.010" R O p O M O K O N O S 491
