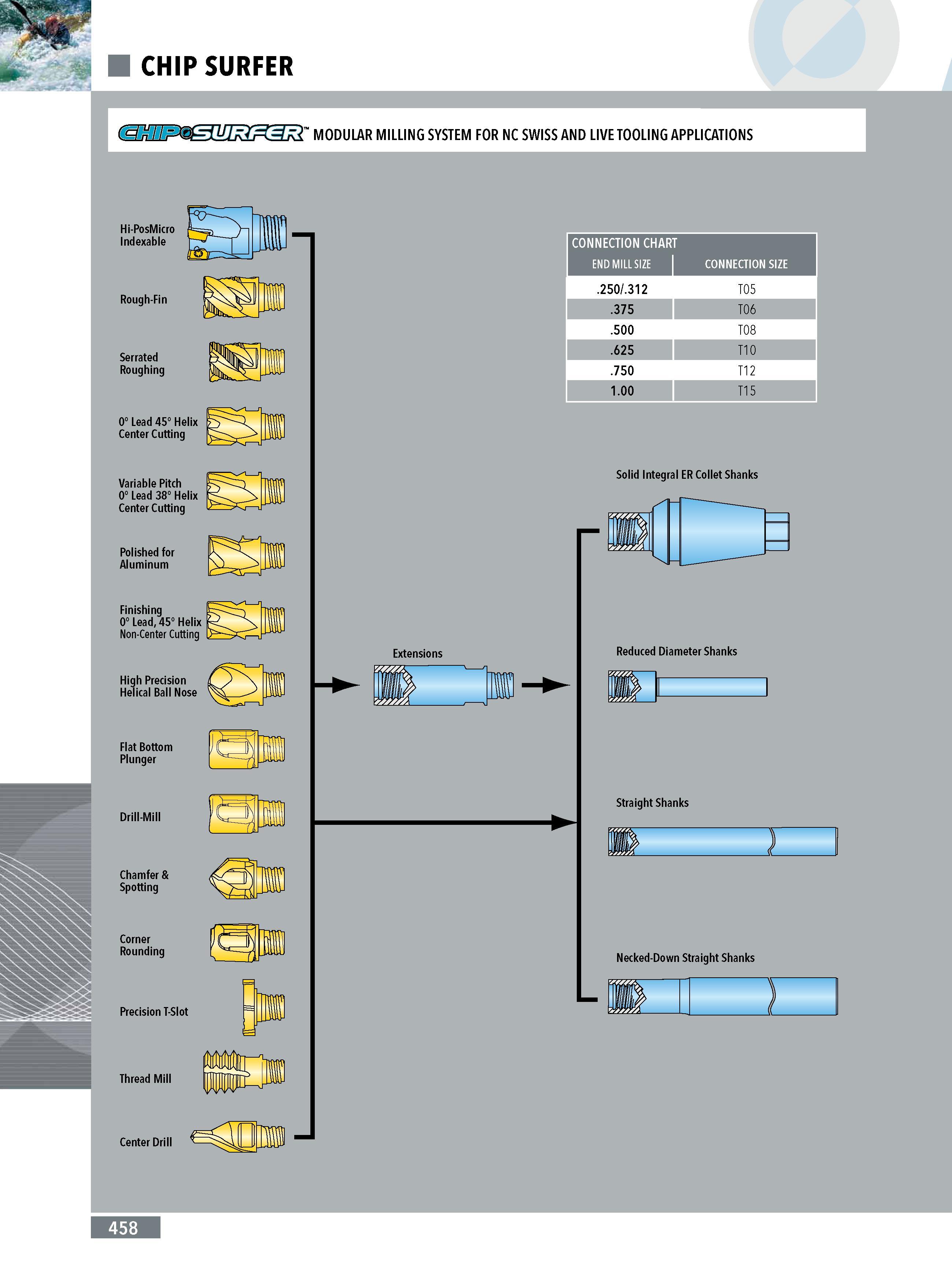

CHIP SURFER GHIBMSURilSER MODULAR MILLING SYSTEM FOR NC SWISS AND LIVE TOOLING APPLICATIONS Hi-PosMicro Indexable Rough-Fin Serrated Roughing 0 Lead 45 Helix Center Cutting Variable Pitch 0 Lead 38 Helix Center Cutting Polished for Aluminum Finishing 0 Lead 45 Helix Non-Center Cutting High Precision Helical Ball Nose Flat Bottom Plunger Drill-Mill Chamfer & Spotting Corner Rounding Precision T-Slot Thread Mill Center Drill Extensions CONNECTION CHART END MILL SIZE CONNECTION SIZE .250 .312 T05 .375 T06 .500 T08 .625 T10 .750 T12 1.00 T15 Solid Integral ER Collet Shanks Reduced Diameter Shanks Straight Shanks Necked-Down Straight Shanks 458
