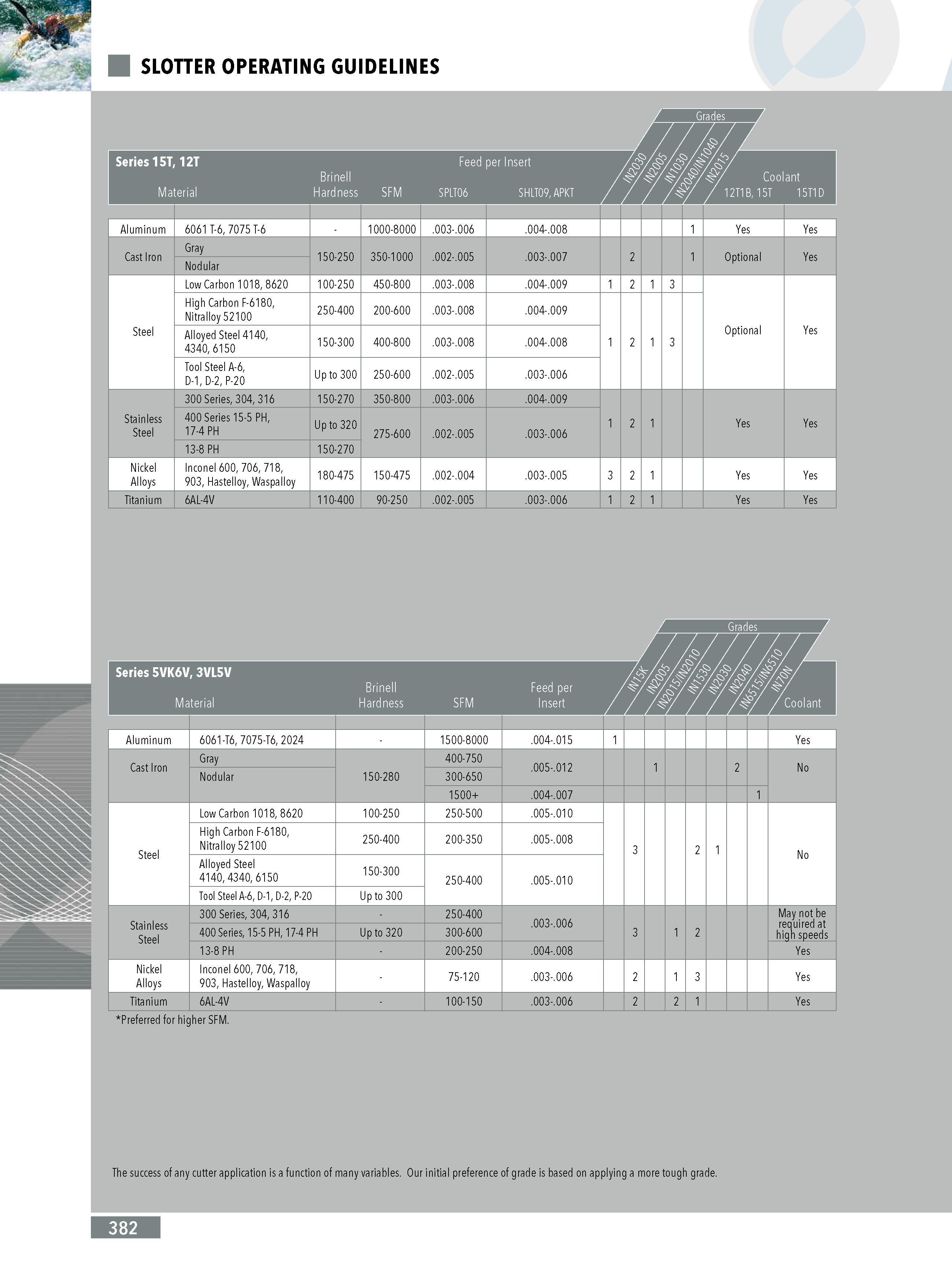

SLOTTER OPERATING GUIDELINES Series 15T 12T Material Brinell Hardness SFM Feed per Insert SPLT06 SHLT09 APKT sQ YV' 4 f Coolant 12T1B 15T 15T1D Aluminum 6061 T-6 7075 T-6 1000-8000 .003-.006 .004-.008 1 Yes Yes Cast Iron Gray Nodular 150-250 350-1000 .002-.005 .003-.007 2 1 Optional Yes Steel Low Carbon 1018 8620 100-250 450-800 .003-.008 .004-.009 1 2 1 3 Optional Yes High Carbon F-6180 Nitralloy 52100 250-400 200-600 .003-.008 .004-.009 1 2 1 3 Alloyed Steel 4140 4340 6150 150-300 400-800 .003-.008 .004-.008 Tool Steel A-6 D-1 D-2 P-20 Up to 300 250-600 .002-.005 .003-.006 Stainless Steel 300 Series 304 316 150-270 350-800 .003-.006 .004-.009 1 2 1 Yes Yes 400 Series 15-5 PH 17-4 PH Up to 320 275-600 .002-.005 .003-.006 13-8 PH 150-270 Nickel Alloys Inconel 600 706 718 903 Hastelloy Waspalloy 180-475 150-475 .002-.004 .003-.005 3 2 1 Yes Yes Titanium 6AL-4V 110-400 90-250 .002-.005 .003-.006 1 2 1 Yes Yes Series 5VK6V 3VL5V Material Hardness Aluminum 6061-T6 7075-T6 2024 1500-8000 .004-.015 1 Yes Cast Iron Gray 400-750 .005-.012 2 No Nodular 150-280 300-650 1 1500+ .004-.007 1 Low Carbon 1018 8620 100-250 250-500 .005-.010 Steel High Carbon F-6180 Nitralloy 52100 250-400 200-350 .005-.008 3 2 1 No Alloyed Steel 4140 4340 6150 150-300 250-400 .005-.010 Tool Steel A-6 D-1 D-2 P-20 Up to 300 Stainless Steel 300 Series 304 316 250-400 .003-.006 May not be required at high speeds 400 Series 15-5 PH 17-4 PH Up to 320 300-600 3 1 2 13-8 PH 200-250 .004-.008 Yes Nickel Alloys Inconel 600 706 718 903 Hastelloy Waspalloy 75-120 .003-.006 2 1 3 Yes Titanium 6AL-4V 100-150 .003-.006 2 2 1 Yes Preferred for higher SFM. The success of any cutter application is a function of many variables. Our initial preference of grade is based on applying a more tough grade. 382
