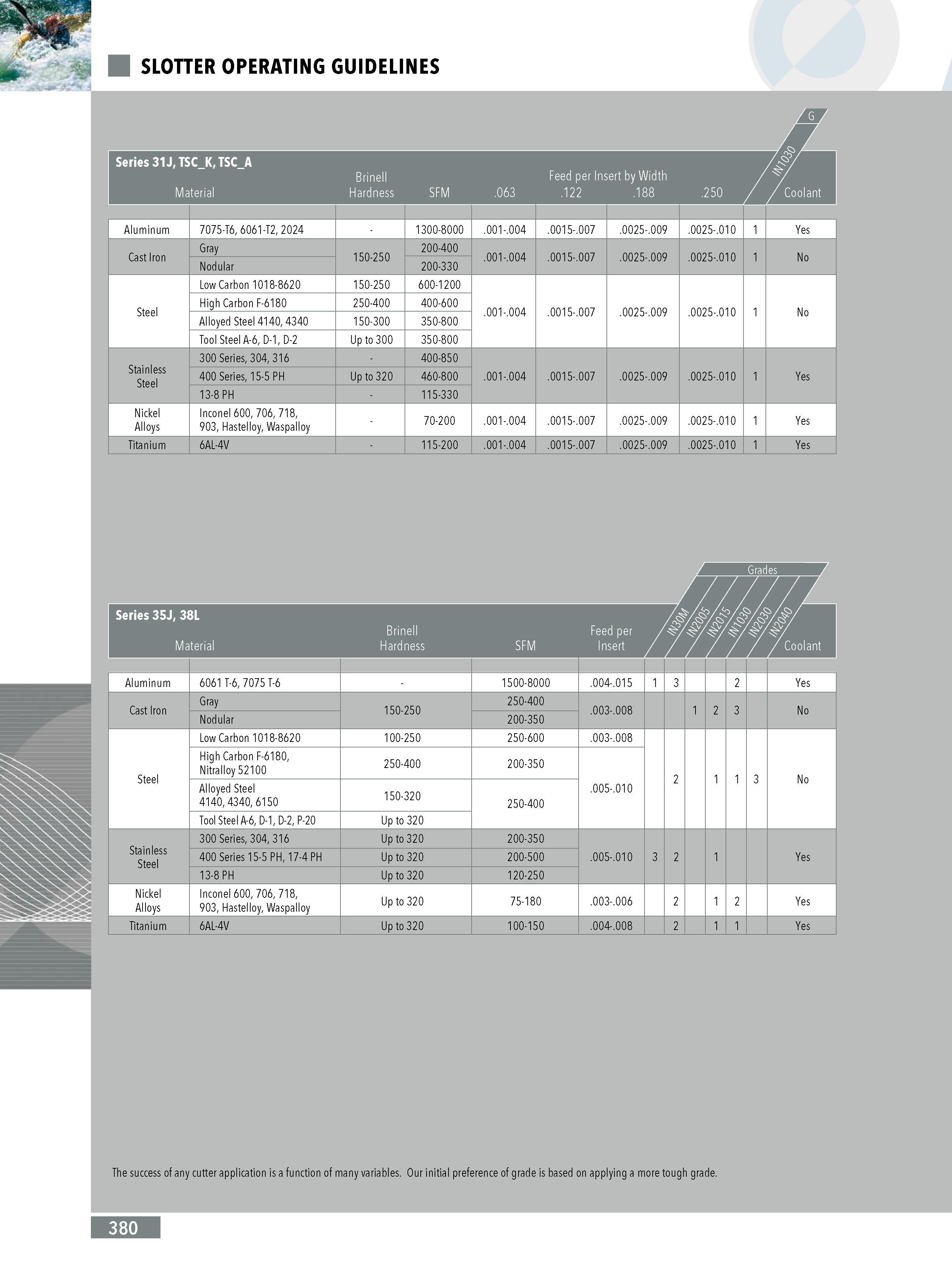

SLOTTER OPERATING GUIDELINES Series 31J TSCK TSCA Material Hardness Feed per Insert by Width Aluminum 7075-T6 6061-T2 2024 1300-8000 .001-.004 .0015-.007 .0025-.009 .0025-.010 1 Yes Cast Iron Gray 150-250 200-400 .001-.004 .0015-.007 .0025-.009 .0025-.010 1 No Nodular 200-330 Steel Low Carbon 1018-8620 150-250 600-1200 .001-.004 .0015-.007 .0025-.009 .0025-.010 1 No High Carbon F-6180 250-400 400-600 Alloyed Steel 4140 4340 150-300 350-800 Tool Steel A-6 D-1 D-2 Up to 300 350-800 Stainless Steel 300 Series 304 316 400-850 .001-.004 .0015-.007 .0025-.009 .0025-.010 1 Yes 400 Series 15-5 PH Up to 320 460-800 13-8 PH 115-330 Nickel Alloys Inconel 600 706 718 903 Hastelloy Waspalloy 70-200 .001-.004 .0015-.007 .0025-.009 .0025-.010 1 Yes Titanium 6AL-4V 115-200 .001-.004 .0015-.007 .0025-.009 .0025-.010 1 Yes Series 35J 38L Material Hardness Aluminum 6061 T-6 7075 T-6 1500-8000 .004-.015 1 3 2 Yes Cast Iron Gray 150-250 250-400 .003-.008 1 1 2 3 No Nodular 200-350 Low Carbon 1018-8620 100-250 250-600 .003-.008 Steel High Carbon F-6180 Nitralloy 52100 250-400 200-350 2 3 No Alloyed Steel 4140 4340 6150 150-320 250-400 .005-.010 1 1 Tool Steel A-6 D-1 D-2 P-20 Up to 320 Stainless Steel 300 Series 304 316 Up to 320 200-350 400 Series 15-5 PH 17-4 PH Up to 320 200-500 .005-.010 3 2 1 Yes 13-8 PH Up to 320 120-250 Nickel Alloys Inconel 600 706 718 903 Hastelloy Waspalloy Up to 320 75-180 .003-.006 2 1 2 Yes Titanium 6AL-4V Up to 320 100-150 .004-.008 2 1 1 Yes The success of any cutter application is a function of many variables. Our initial preference of grade is based on applying a more tough grade. 380
