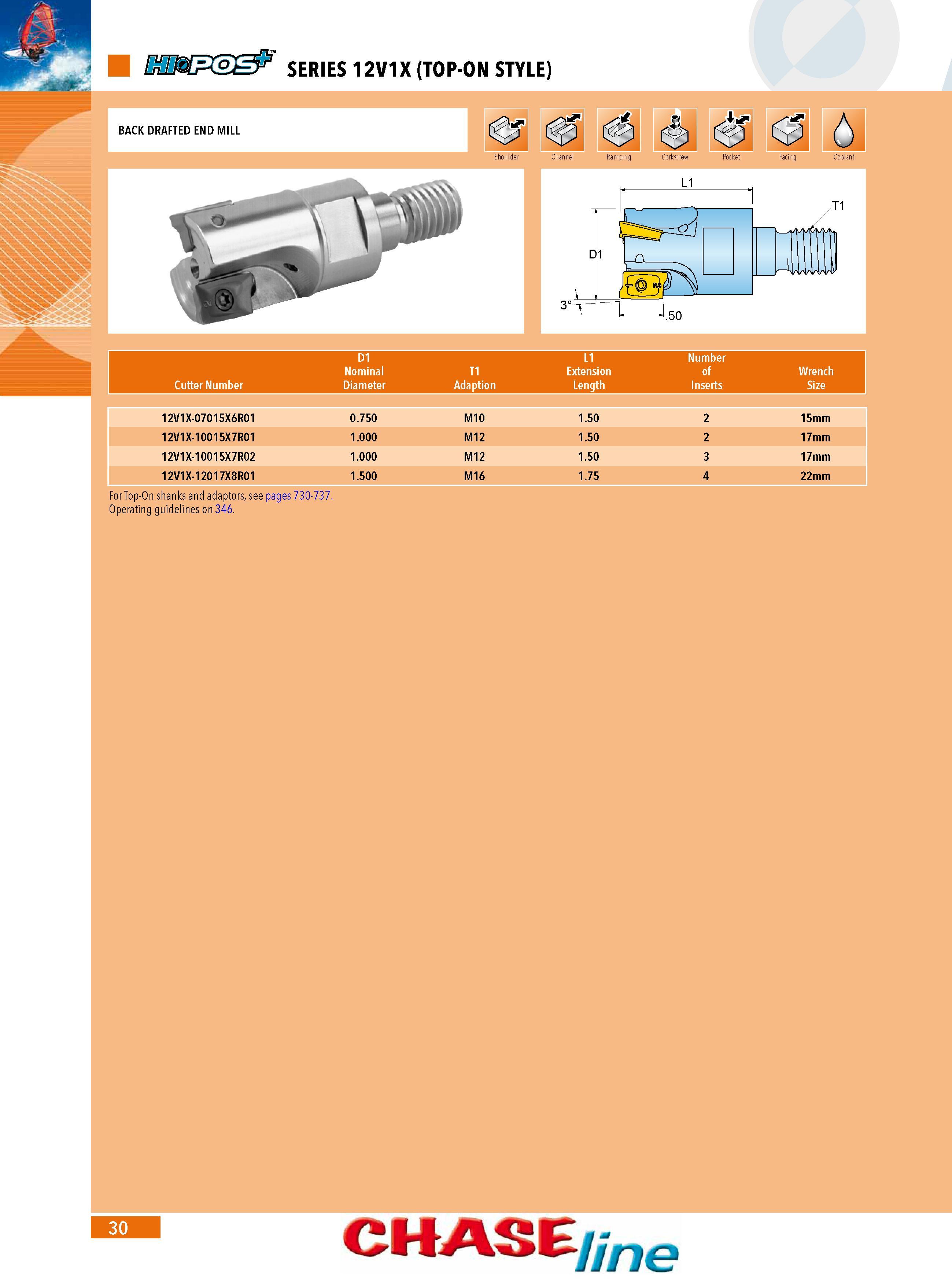

SERIES 12V1X (TOP-ON STYLE) BACK DRAFTED END MILL Shoulder Channel D1 Uo. L1 L J .50 damping Corkscrew Pocket Facing Coolant T1 rT' 4 D1 L1 Number Nominal T1 Extension of Wrench Cutter Number Diameter Adaption Length Inserts Size 12V1X-07015X6R01 0.750 M10 1.50 2 15mm 12V1X-10015X7R01 1.000 M12 1.50 2 17mm 12V1X-10015X7R02 1.000 M12 1.50 3 17mm 12V1X-12017X8R01 1.500 M16 1.75 4 22mm For Top-On shanks and adaptors see pages 730-737. Operating guidelines on 346. 30 CHASE ne
