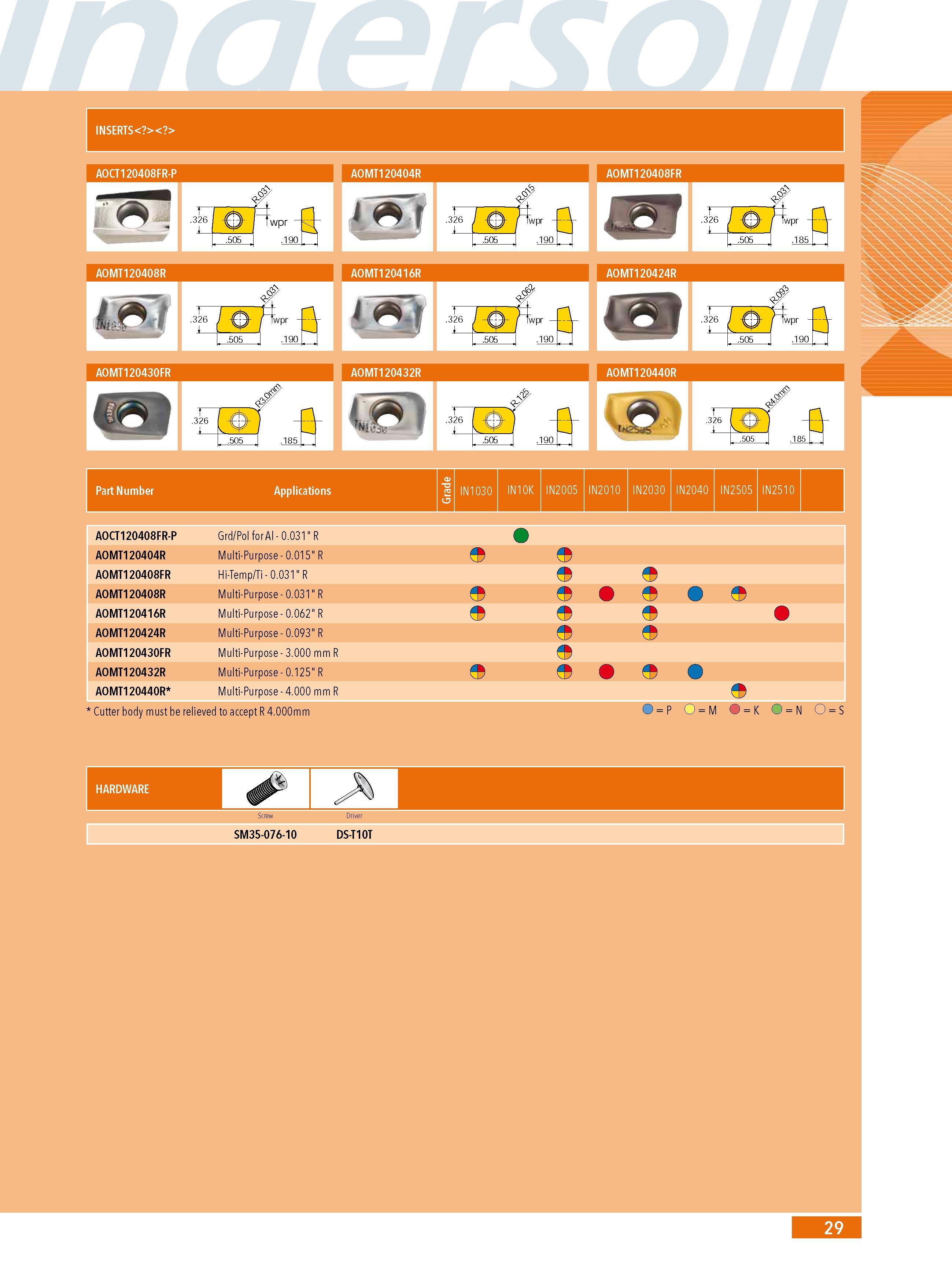

27 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.29

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 29 0027 Lab2u

INSERTS AOCT120408FR-P 1 326 1 -t L .505 . Twpr .190 AOMT120404R AOMT120408FR 326 0 p fi 326 t 1 .505 I AOMT120408R AOMT120416R AOMT120424R T .326 Twpr .505 .190 .326 -fcj" I Iwl .505 r .326 i Tw .505 I AOMT120430FR AOMT120432R v .326 n .505 I .185 r- .326 n .505 I .190 AOMT120440R r .326 .505 I .185 Part Number Applications e d IN1030 IN10K IN2005 IN2010 IN2030 IN2040 IN2505 IN2510 Gr AOCT120408FR-P Grd Pol for Al - 0.031" R AOMT120404R Multi-Purpose - 0.015" R AOMT120408FR Hi-Temp Ti - 0.031" R AOMT120408R Multi-Purpose - 0.031" R AOMT120416R Multi-Purpose - 0.062" R AOMT120424R Multi-Purpose - 0.093" R AOMT120430FR Multi-Purpose - 3.000 mm R AOMT120432R Multi-Purpose - 0.125" R AOMT120440R Multi-Purpose - 4.000 mm R Cutter body must be relieved to accept R 4.000mm O P O M O K O N O S 29
