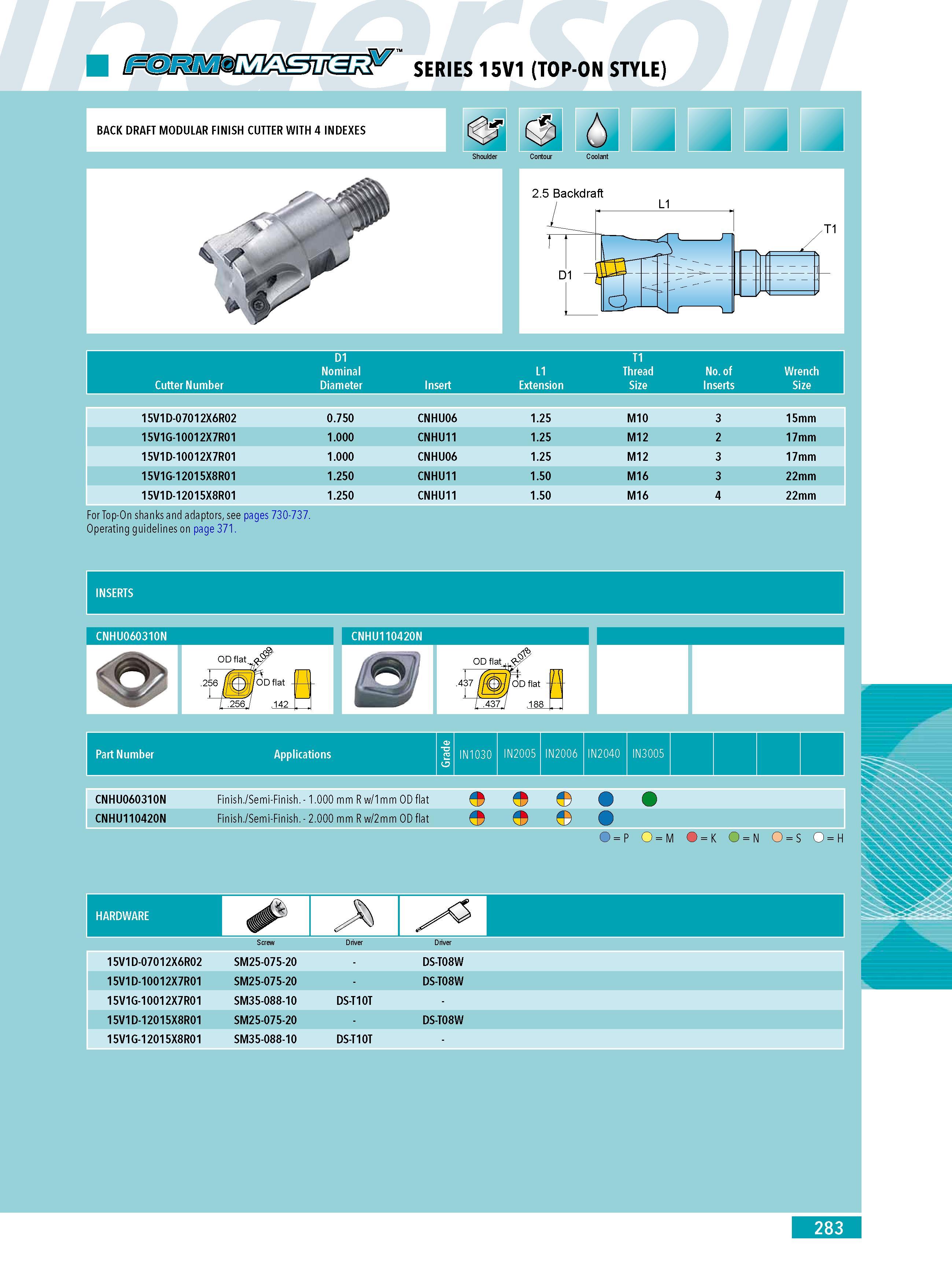

281 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.283

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 283 0281 Lab2u

15V1D-07012X6R02 0.750 CNHU06 1.25 M10 3 15mm 15V1G-10012X7R01 1.000 CNHU11 1.25 M12 2 17mm 15V1D-10012X7R01 1.000 CNHU06 1.25 M12 3 17mm 15V1G-12015X8R01 1.250 CNHU11 1.50 M16 3 22mm 15V1D-12015X8R01 1.250 CNHU11 1.50 M16 4 22mm For Top-On shanks and adaptors see pages 730-737. Operating guidelines on page 371. INSERTS Part Number Applications IN1030 IN2005 IN2006 IN2040 IN3005 CNHU060310N Finish. Semi-Finish. - 1.000 mm R w 1mm OD flat CNHU110420N Finish. Semi-Finish. - 2.000 mm R w 2mm OD flat P O M O K O N O S O H 15V1D-07012X6R02 SM25-075-20 DS-T08W 15V1D-10012X7R01 SM25-075-20 DS-T08W 15V1G-10012X7R01 SM35-088-10 DS-T10T 15V1D-12015X8R01 SM25-075-20 DS-T08W 15V1G-12015X8R01 SM35-088-10 DS-T10T Screw Driver Driver 283
