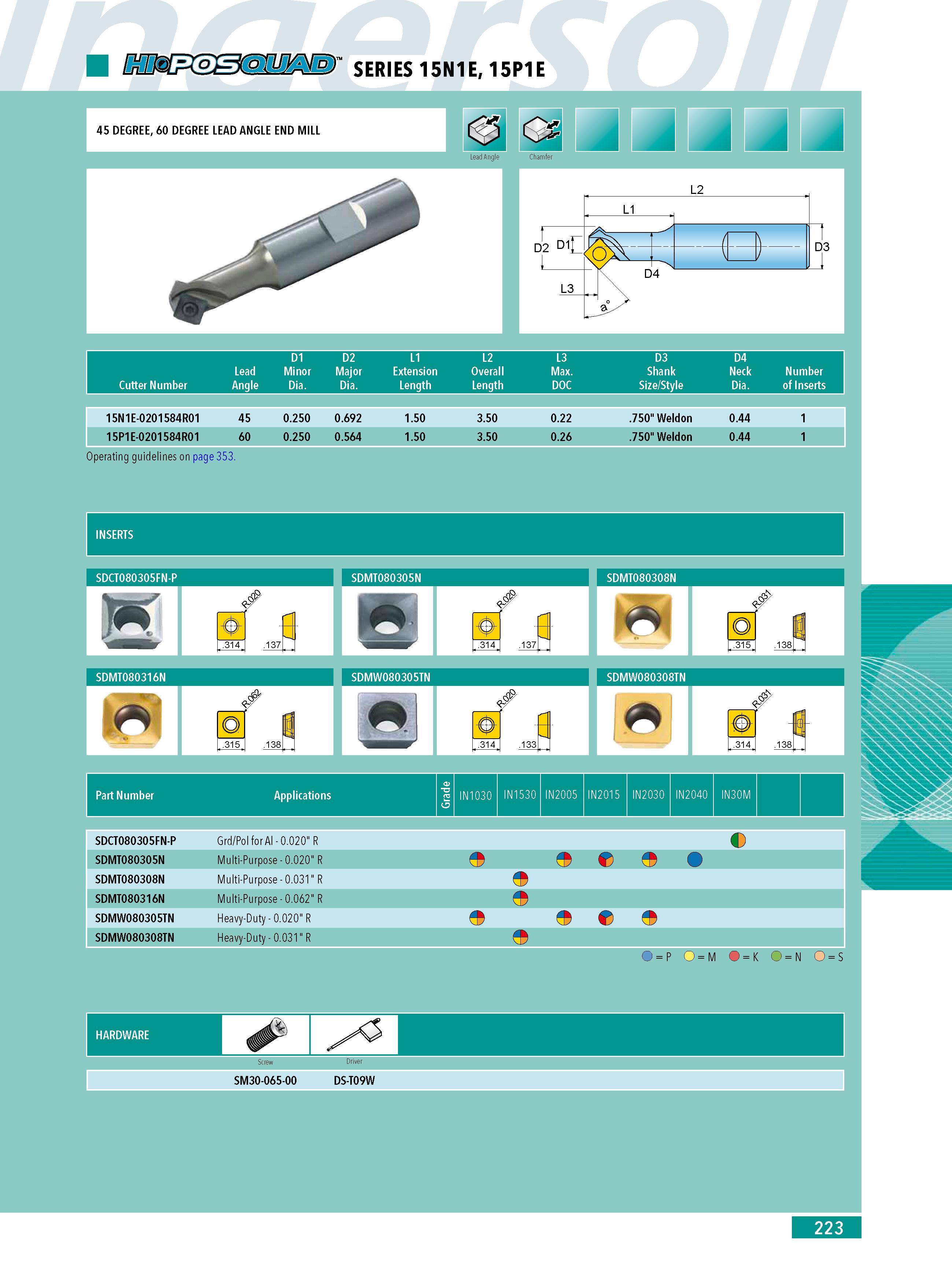

SERIES 15N1E 15P1E D1 D2 L1 L2 L3 D3 D4 Lead Minor Major Extension Overall Max. Shank Neck Number Cutter Number Angle Dia. Dia. Length Length DOC Size Style Dia. of Inserts 15N1E-0201584R01 45 0.250 0.692 1.50 3.50 0.22 .750" Weldon 0.44 1 15P1E-0201584R01 60 0.250 0.564 1.50 3.50 0.26 .750" Weldon 0.44 1 Operating guidelines on page 353. INSERTS SDCT080305FN-P SDMT080305N SDMT080308N SDMT080316N Part Number a SDMW080305TN SDMW080308TN cfS a Applications IN1030 IN1530 IN2005 IN2015 IN2030 IN2040 IN30M SDCT080305FN-P Grd Pol for Al - 0.020" R SDMT080305N Multi-Purpose - 0.020" R c SDMT080308N Multi-Purpose - 0.031" R SDMT080316N Multi-Purpose - 0.062" R SDMW080305TN Heavy-Duty - 0.020" R e SDMW080308TN Heavy-Duty - 0.031" R O P O M O K O N O S 223
