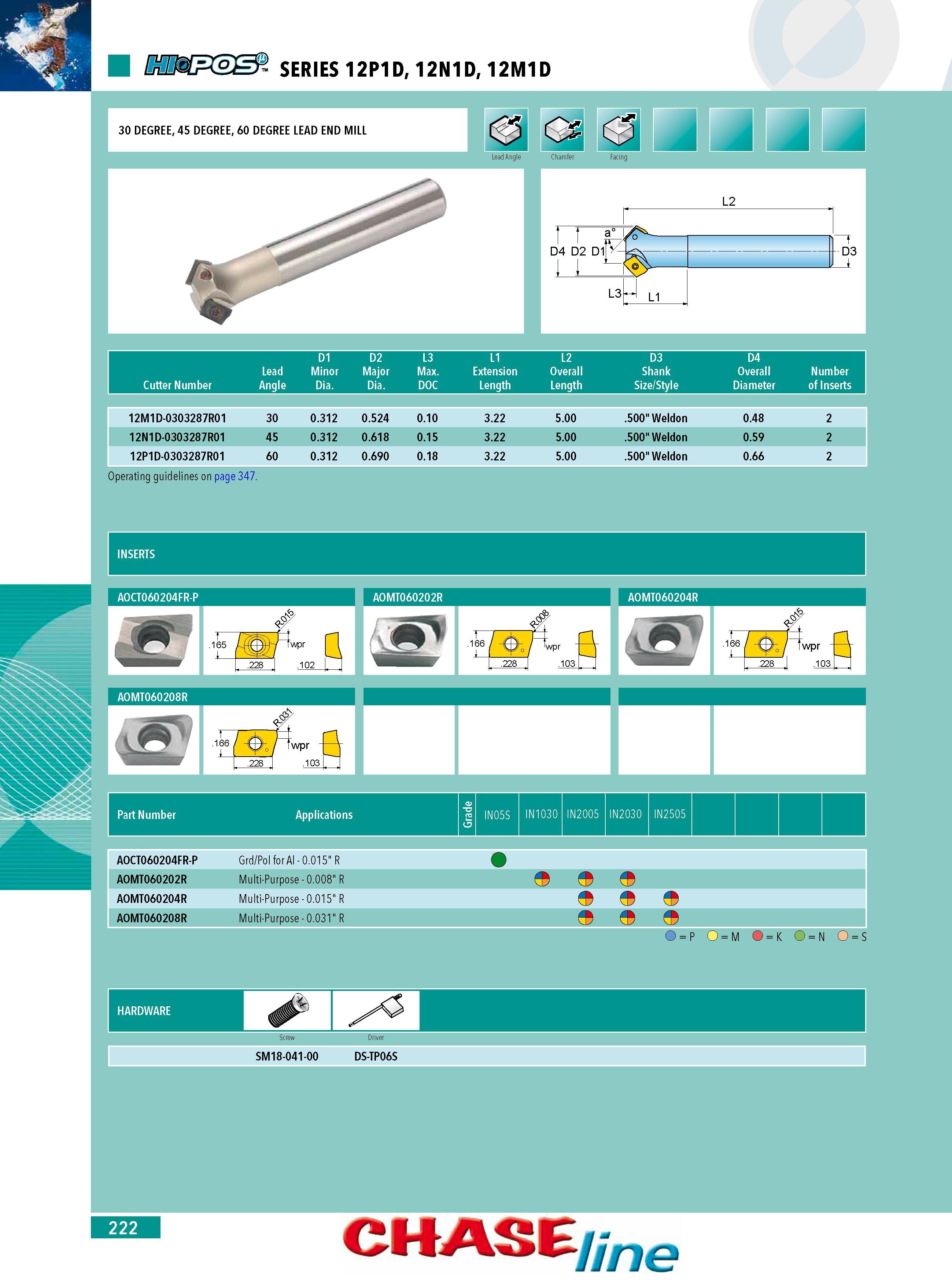

SERIES 12P1D 12N1D 12M1D 30 DEGREE 45 DEGREE 60 DEGREE LEAD END MILL Lead Angle D1 D2 L3 L1 Lead Minor Major Max. Extension Cutter Number Angle Dia. Dia. DOC Length 12M1D-0303287R01 30 0.312 0.524 0.10 3.22 5.00 .500" Weldon 0.48 2 12N1D-0303287R01 45 0.312 0.618 0.15 3.22 5.00 .500" Weldon 0.59 2 12P1D-0303287R01 60 0.312 0.690 0.18 3.22 5.00 .500" Weldon 0.66 2 Operating guidelines on page 347. AOCT060204FR-P AOMT060202R AOMT060204R AOMT060208R Twpr .103 Part Number Applications Grade 0 Cn CO IN1030 IN2005 IN2030 AOCT060204FR-P Grd Pol for Al - 0.015" R AOMT060202R Multi-Purpose - 0.008" R AOMT060204R Multi-Purpose - 0.015" R AOMT060208R Multi-Purpose - 0.031" R o P O M O K O N O S 222 CHASE ne
