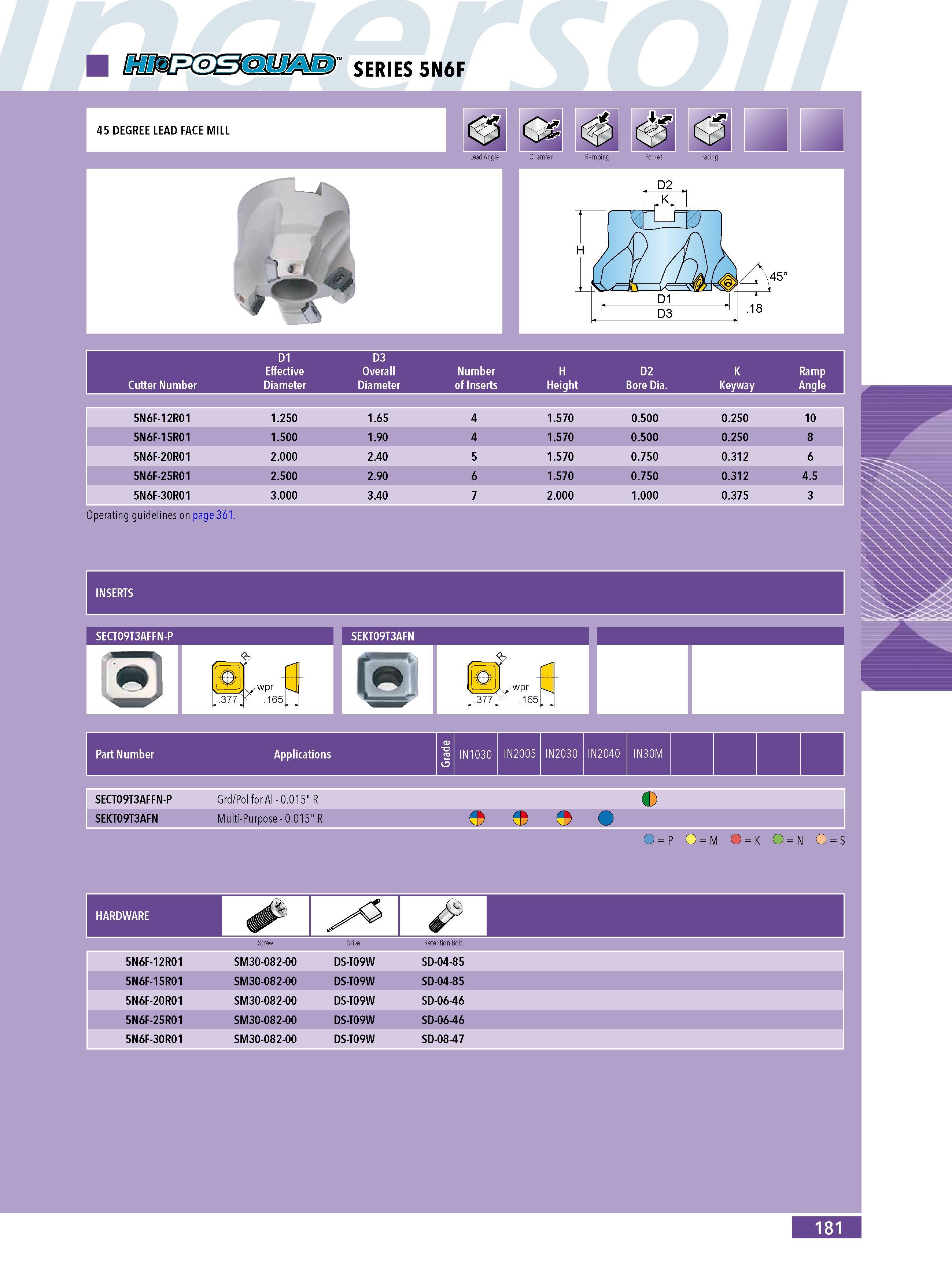

179 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.181

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 181 0179 Lab2u

-Bf SERIES 5N6F D1 D3 Effective Overall Number H D2 K Ramp Cutter Number Diameter Diameter of Inserts Height Bore Dia. Keyway Angle 5N6F-12R01 1.250 1.65 4 1.570 0.500 0.250 10 5N6F-15R01 1.500 1.90 4 1.570 0.500 0.250 8 5N6F-20R01 2.000 2.40 5 1.570 0.750 0.312 6 5N6F-25R01 2.500 2.90 6 1.570 0.750 0.312 4.5 5N6F-30R01 3.000 3.40 7 2.000 1.000 0.375 3 Operating guidelines on page 361. SECT09T3AFFN-P Part Number wpr I .1651 SEKT09T3AFN Applications IN2040 IN30M SECT09T3AFFN-P Grd Pol for Al - 0.015" R SEKT09T3AFN Multi-Purpose - 0.015" R P O M O K O N O S Screw Driver Retention Bolt 5N6F-12R01 SM30-082-00 DS-T09W SD-04-85 5N6F-15R01 SM30-082-00 DS-T09W SD-04-85 5N6F-20R01 SM30-082-00 DS-T09W SD-06-46 5N6F-25R01 SM30-082-00 DS-T09W SD-06-46 5N6F-30R01 SM30-082-00 DS-T09W SD-08-47 181
