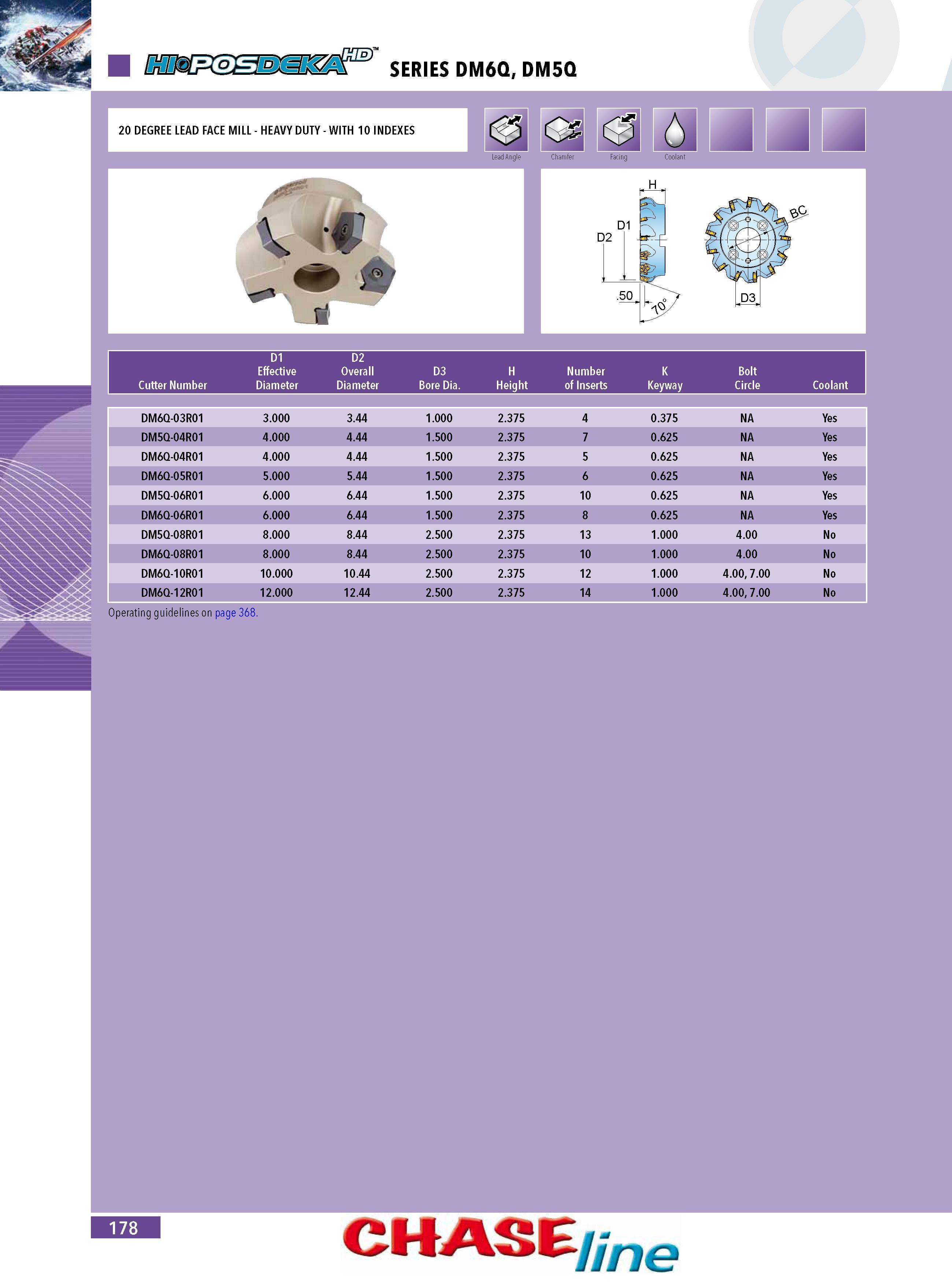

SERIES DM6Q DM5Q 20 DEGREE LEAD FACE MILL - HEAVY DUTY - WITH 10 INDEXES Lead Angle Chamfer Facing Coolant D2 Cutter Number D1 Effective Diameter D2 Overall Diameter D3 Bore Dia. H Height Number of Inserts K Keyway Bolt Circle Coolant DM6Q-03R01 3.000 3.44 1.000 2.375 4 0.375 NA Yes DM5Q-04R01 4.000 4.44 1.500 2.375 7 0.625 NA Yes DM6Q-04R01 4.000 4.44 1.500 2.375 5 0.625 NA Yes DM6Q-05R01 5.000 5.44 1.500 2.375 6 0.625 NA Yes DM5Q-06R01 6.000 6.44 1.500 2.375 10 0.625 NA Yes DM6Q-06R01 6.000 6.44 1.500 2.375 8 0.625 NA Yes DM5Q-08R01 8.000 8.44 2.500 2.375 13 1.000 4.00 No DM6Q-08R01 8.000 8.44 2.500 2.375 10 1.000 4.00 No DM6Q-10R01 10.000 10.44 2.500 2.375 12 1.000 4.00 7.00 No DM6Q-12R01 12.000 12.44 2.500 2.375 14 1.000 4.00 7.00 No Operating guidelines on page 368. 178 CHASE ne
