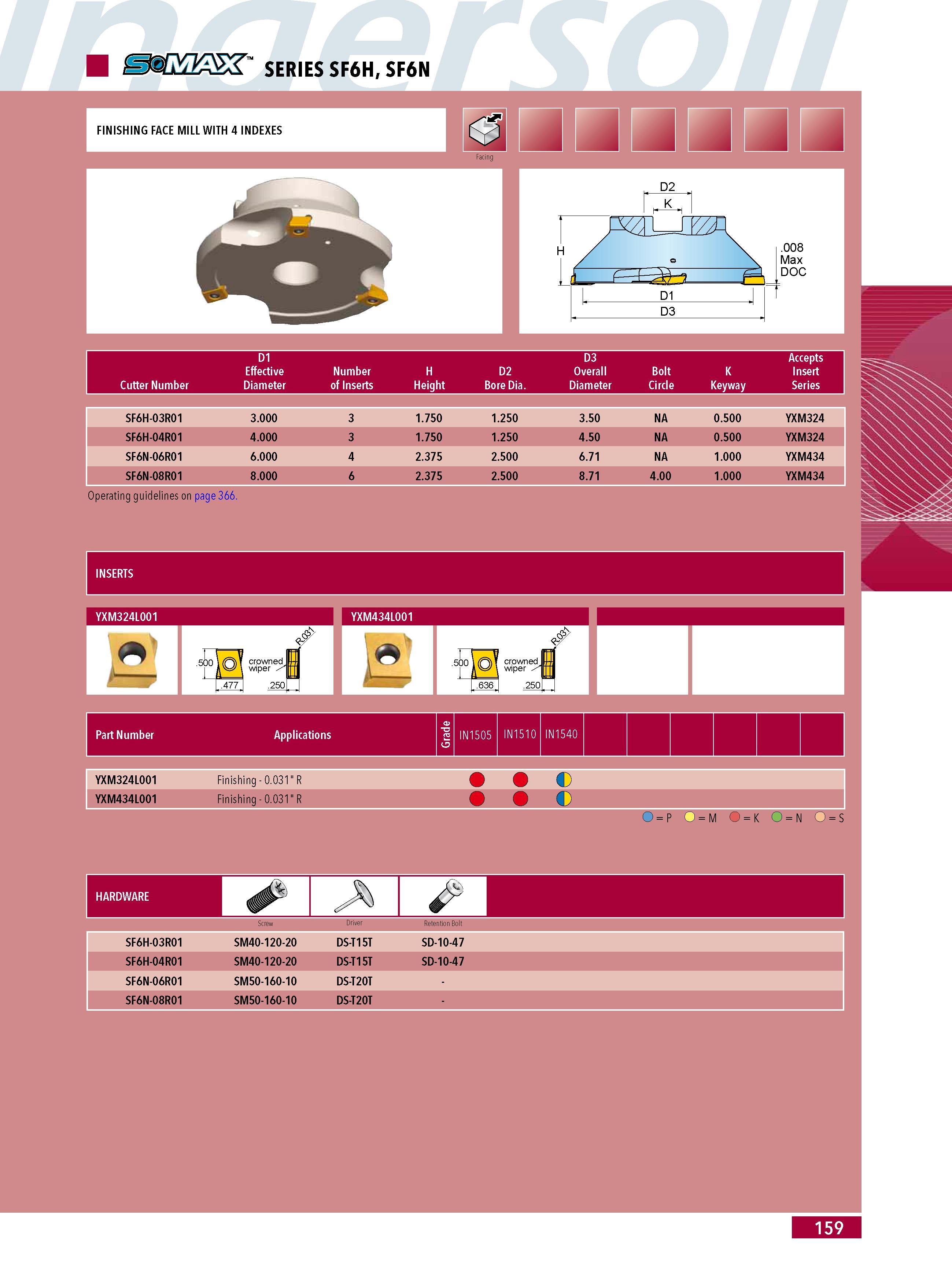

157 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.159

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 159 0157 Lab2u

SERIES SF6H SF6N D1 D3 Accepts Effective Number H D2 Overall Bolt K Insert Cutter Number Diameter of Inserts Height Bore Dia. Diameter Circle Keyway Series SF6H-03R01 3.000 3 1.750 1.250 3.50 NA 0.500 YXM324 SF6H-04R01 4.000 3 1.750 1.250 4.50 NA 0.500 YXM324 SF6N-06R01 6.000 4 2.375 2.500 6.71 NA 1.000 YXM434 SF6N-08R01 8.000 6 2.375 2.500 8.71 4.00 1.000 YXM434 Operating guidelines on page 366. YXM324L001 Finishing - 0.031 R YXM434L001 Finishing - 0.031 R C O P O M O K O N O S HARDWARE Screw Driver Retention Bolt SF6H-03R01 SM40-120-20 DS-T15T SD-10-47 SF6H-04R01 SM40-120-20 DS-T15T SD-10-47 SF6N-06R01 SM50-160-10 DS-T20T SF6N-08R01 SM50-160-10 DS-T20T 159
