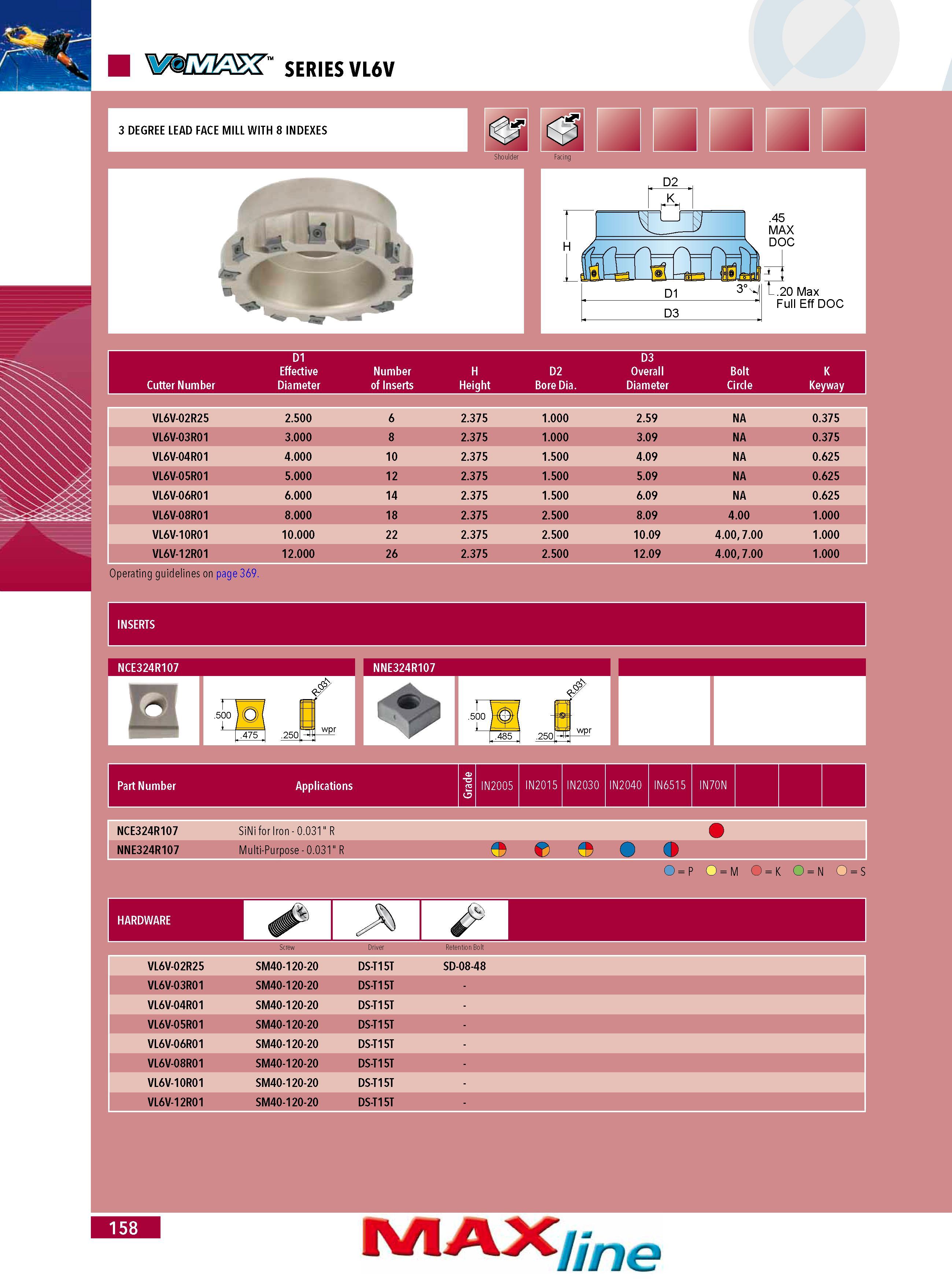

SERIES VL6V 3 DEGREE LEAD FACE MILL WITH 8 INDEXES Shoulder Facing K 1 .45 MAX V DOC D1 3 V D3 U20 Max Full Eff DOC Cutter Number D1 Effective Diameter Number of Inserts H Height D2 Bore Dia. D3 Overall Diameter Bolt Circle K Keyway VL6V-02R25 2.500 6 2.375 1.000 2.59 NA 0.375 VL6V-03R01 3.000 8 2.375 1.000 3.09 NA 0.375 VL6V-04R01 4.000 10 2.375 1.500 4.09 NA 0.625 VL6V-05R01 5.000 12 2.375 1.500 5.09 NA 0.625 VL6V-06R01 6.000 14 2.375 1.500 6.09 NA 0.625 VL6V-08R01 8.000 18 2.375 2.500 8.09 4.00 1.000 VL6V-10R01 10.000 22 2.375 2.500 10.09 4.00 7.00 1.000 VL6V-12R01 12.000 26 2.375 2.500 12.09 4.00 7.00 1.000 Operating guidelines on page 369. NCE324R107 NNE324R107 Part Number Applications IN2005 IN2015 IN2030 IN2040 IN6515 IN70N NCE324R107 SiNi for Iron - 0.031 R NNE324R107 Multi-Purpose - 0.031 R O P O M O K O N O S VL6V-02R25 SM40-120-20 DS-T15T SD-08-48 VL6V-03R01 SM40-120-20 DS-T15T VL6V-04R01 SM40-120-20 DS-T15T VL6V-05R01 SM40-120-20 DS-T15T VL6V-06R01 SM40-120-20 DS-T15T VL6V-08R01 SM40-120-20 DS-T15T VL6V-10R01 SM40-120-20 DS-T15T VL6V-12R01 SM40-120-20 DS-T15T Driver Retention Bolt 158 MAX me
