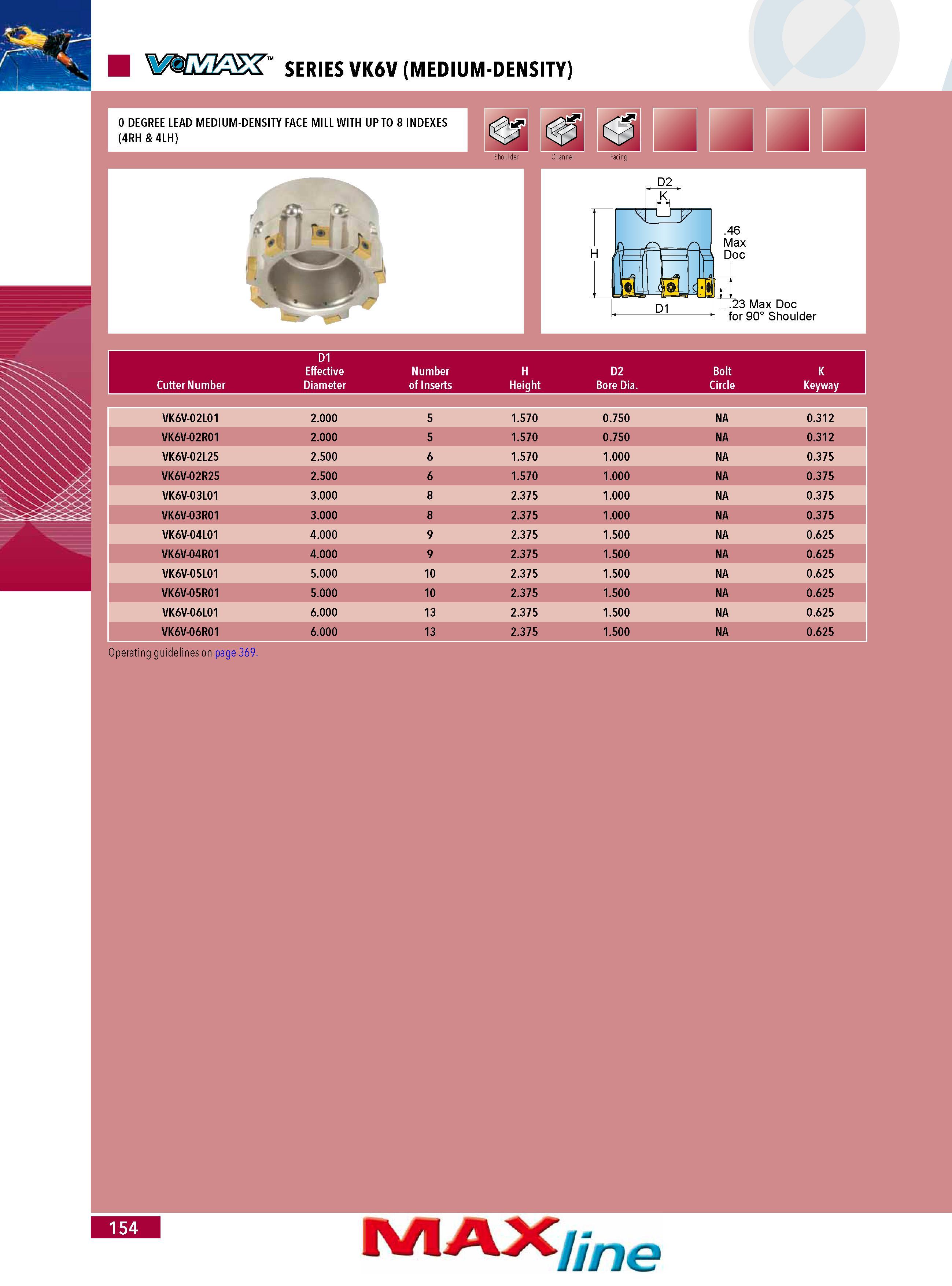

SERIES VK6V (MEDIUM-DENSITY) 0 DEGREE LEAD MEDIUM-DENSITY FACE MILL WITH UP TO 8 INDEXES (4RH & 4LH) Shoulder Channel Facing Cutter Number D1 Effective Diameter Number of Inserts H Height D2 Bore Dia. Bolt Circle K Keyway VK6V-02L01 2.000 5 1.570 0.750 NA 0.312 VK6V-02R01 2.000 5 1.570 0.750 NA 0.312 VK6V-02L25 2.500 6 1.570 1.000 NA 0.375 VK6V-02R25 2.500 6 1.570 1.000 NA 0.375 VK6V-03L01 3.000 8 2.375 1.000 NA 0.375 VK6V-03R01 3.000 8 2.375 1.000 NA 0.375 VK6V-04L01 4.000 9 2.375 1.500 NA 0.625 VK6V-04R01 4.000 9 2.375 1.500 NA 0.625 VK6V-05L01 5.000 10 2.375 1.500 NA 0.625 VK6V-05R01 5.000 10 2.375 1.500 NA 0.625 VK6V-06L01 6.000 13 2.375 1.500 NA 0.625 VK6V-06R01 6.000 13 2.375 1.500 NA 0.625 Operating guidelines on page 369. 154 MAXfc
