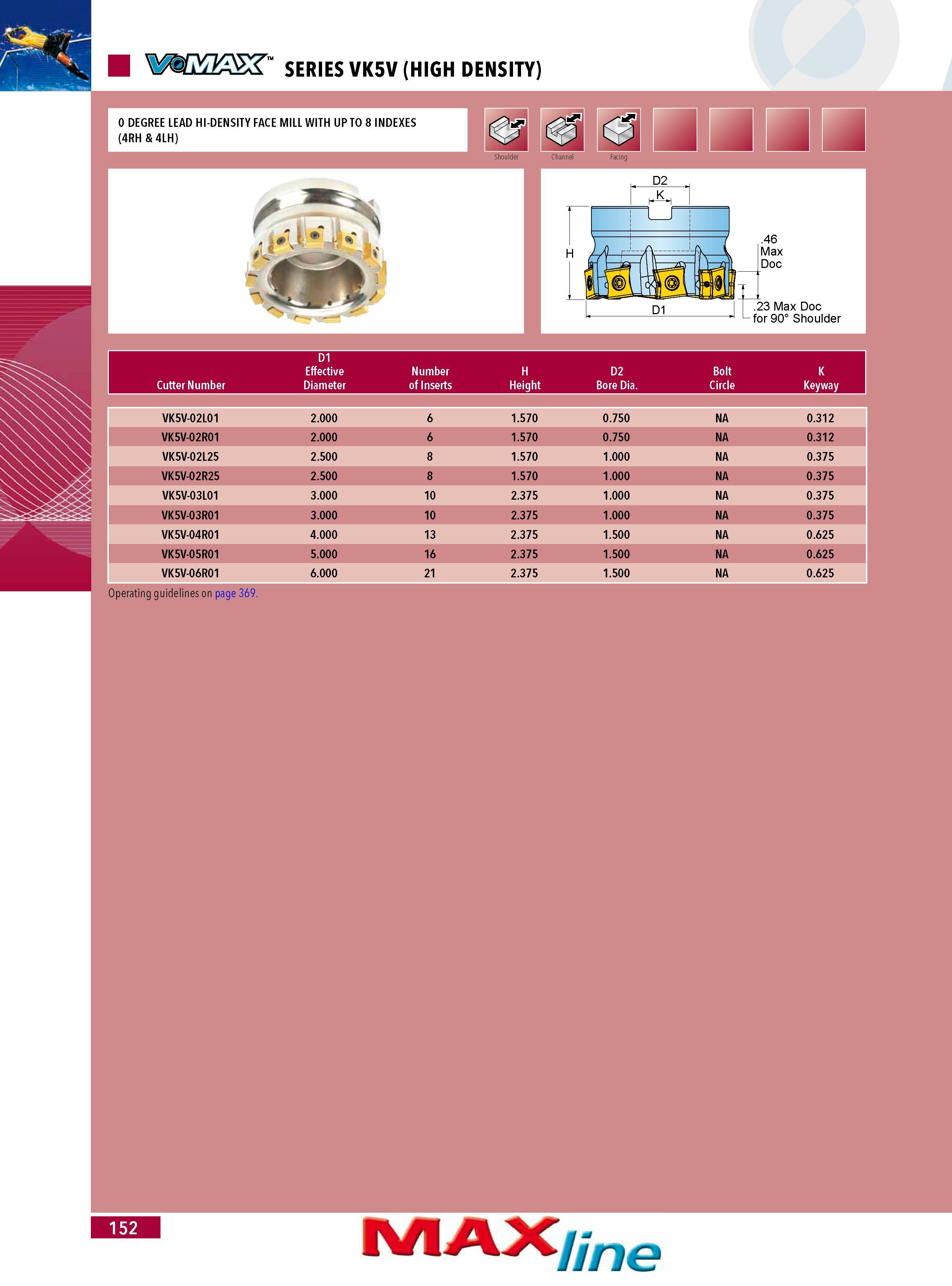

A S SERIES VK5V (HIGH DENSITY) 0 DEGREE LEAD HI-DENSITY FACE MILL WITH UP TO 8 INDEXES (4RH & 4LH) Cutter Number D1 Effective Diameter Number of Inserts H Height D2 Bore Dia. Bolt Circle K Keyway VK5V-02L01 2.000 6 1.570 0.750 NA 0.312 VK5V-02R01 2.000 6 1.570 0.750 NA 0.312 VK5V-02L25 2.500 8 1.570 1.000 NA 0.375 VK5V-02R25 2.500 8 1.570 1.000 NA 0.375 VK5V-03L01 3.000 10 2.375 1.000 NA 0.375 VK5V-03R01 3.000 10 2.375 1.000 NA 0.375 VK5V-04R01 4.000 13 2.375 1.500 NA 0.625 VK5V-05R01 5.000 16 2.375 1.500 NA 0.625 VK5V-06R01 6.000 21 2.375 1.500 NA 0.625 Operating guidelines on page 369. 152 MAX me
