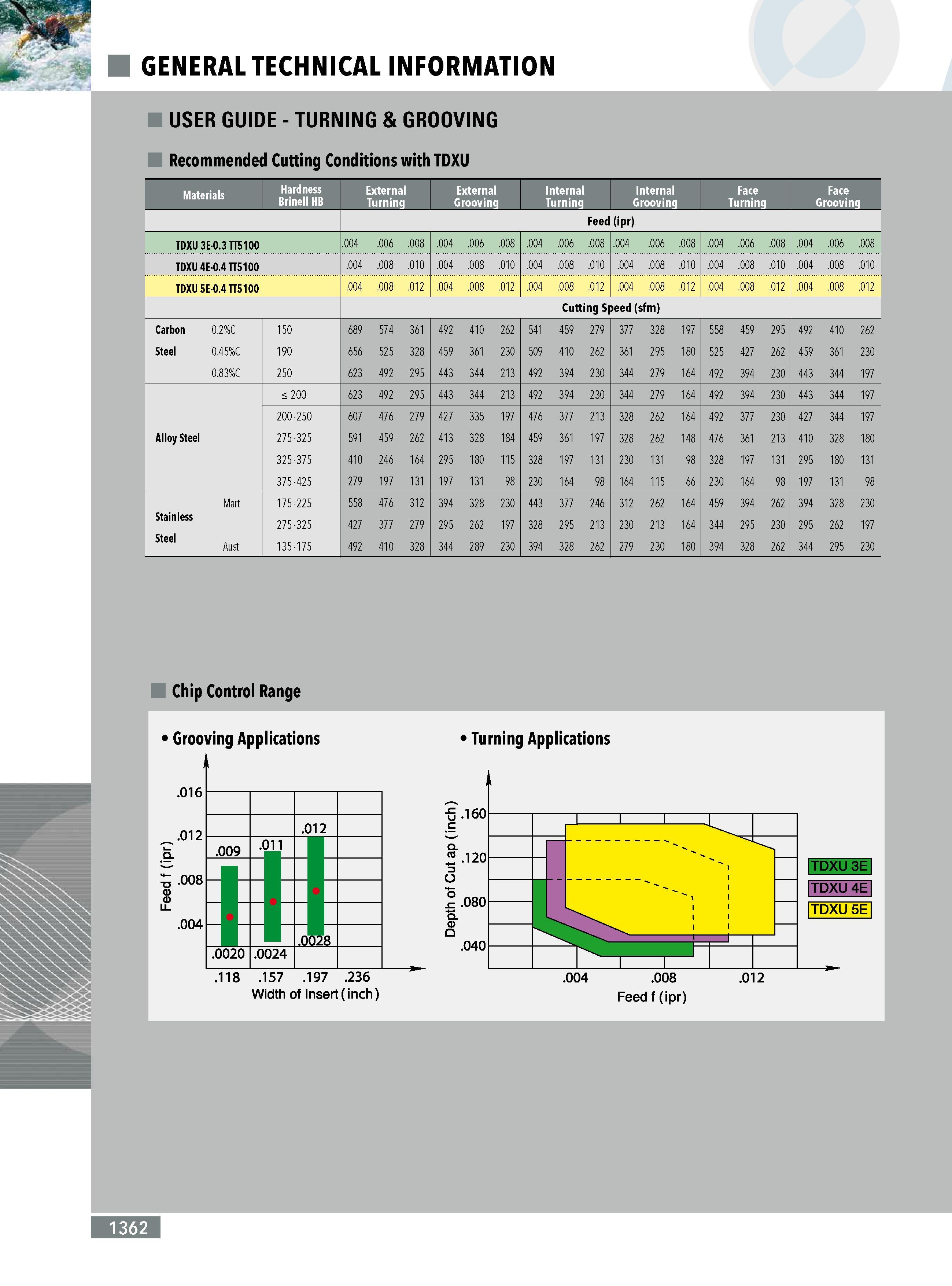

GENERAL TECHNICAL INFORMATION USER GUIDE - TURNING & GROOVING Recommended Cutting Conditions with TDXU Materials Hardness Brinell HB External Turning External Grooving Internal Turning Internal Grooving Face Turning Face Grooving Feed (ipr) TDXU 3E-0.3 TT5100 .004 .006 .008 .004 .006 008 .004 .006 .008 .004 .006 .008 .004 .006 .008 .004 .006 .008 TDXU 4E-0.4 TT5100 .004 .008 .010 .004 .008 010 .004 .008 .010 .004 .008 .010 .004 .008 .010 .004 .008 .010 TDXU 5E-0.4 TT5100 .004 .008 .012 .004 .008 012 .004 .008 .012 .004 .008 .012 .004 .008 .012 .004 .008 .012 Cutting Speed (sfm) Carbon 0.2%C 150 689 574 361 492 410 262 541 459 279 377 328 197 558 459 295 492 410 262 Steel 0.45%C 190 656 525 328 459 361 230 509 410 262 361 295 180 525 427 262 459 361 230 0.83%C 250 623 492 29 5 443 344 213 492 394 230 344 279 164 492 394 230 443 344 197 200 623 492 295 443 344 213 492 394 230 344 279 164 492 394 230 443 344 197 200-250 607 476 279 427 335 197 476 377 213 328 262 164 492 377 230 427 344 197 Alloy Steel 275 -325 591 459 262 413 328 184 459 361 197 328 262 148 476 361 213 410 328 180 325-375 410 246 164 295 180 115 328 197 131 230 131 98 328 197 131 295 180 131 375 -425 279 197 131 197 131 98 230 164 98 164 115 66 230 164 98 197 131 98 Mart 175 -225 558 476 312 394 328 230 443 377 246 312 262 164 459 394 262 394 328 230 Stainless 275 -325 427 377 279 295 262 197 328 295 213 230 213 164 344 295 230 295 262 197 Steel Aust 135 -175 492 410 328 344 289 230 394 328 262 279 230 180 394 328 262 344 295 230 Chip Control Range Grooving Applications .0020 .0024 .118 .157 .197 .236 Width of Insert (inch) Turning Applications .160 2 .120 O M o .080 Q. 0) o .040 .004 .008 Feed f (ipr) TDXU 3E TDXU 4E I TDXU 5EI .012 1362
