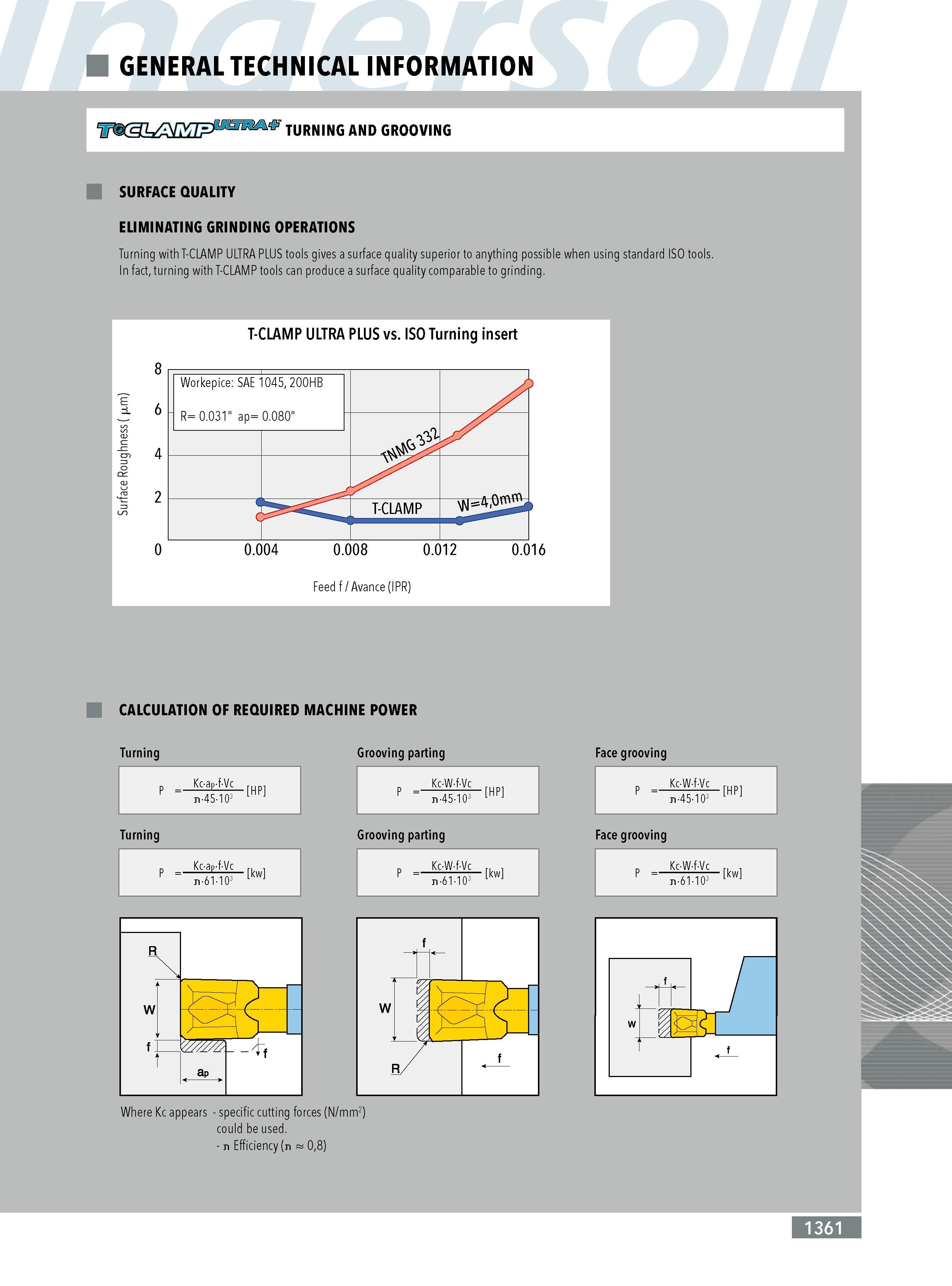

GENERAL TECHNICAL INFORMATION nTMWVNXT JJ TURNING AND GROOVING SURFACE QUALITY ELIMINATING GRINDING OPERATIONS Turning with T-CLAMP ULTRA PLUS tools gives a surface quality superior to anything possible when using standard ISO tools. In fact turning with T-CLAMP tools can produce a surface quality comparable to grinding. T-CLAMP ULTRA PLUS vs. ISO Turning insert Feed f Avance (IPR) CALCULATION OF REQUIRED MACHINE POWER Turning P Kc-ap-f-Vc n-45-103 - HP Turning P Kc-ap-f-Vc n-61-103 Where Kc appears - specific cutting forces (N mm2) could be used. - n Efficiency (n 08) Grooving parting P Kc-W-f-Vc P n -45-103 - HP Grooving parting P Kc-W-f-Vc P n-61-103 kw Face grooving P Kc-W-f-Vc n-45-103 HP Face grooving P Kc-W-f-Vc P n-61-103 kw 1361
