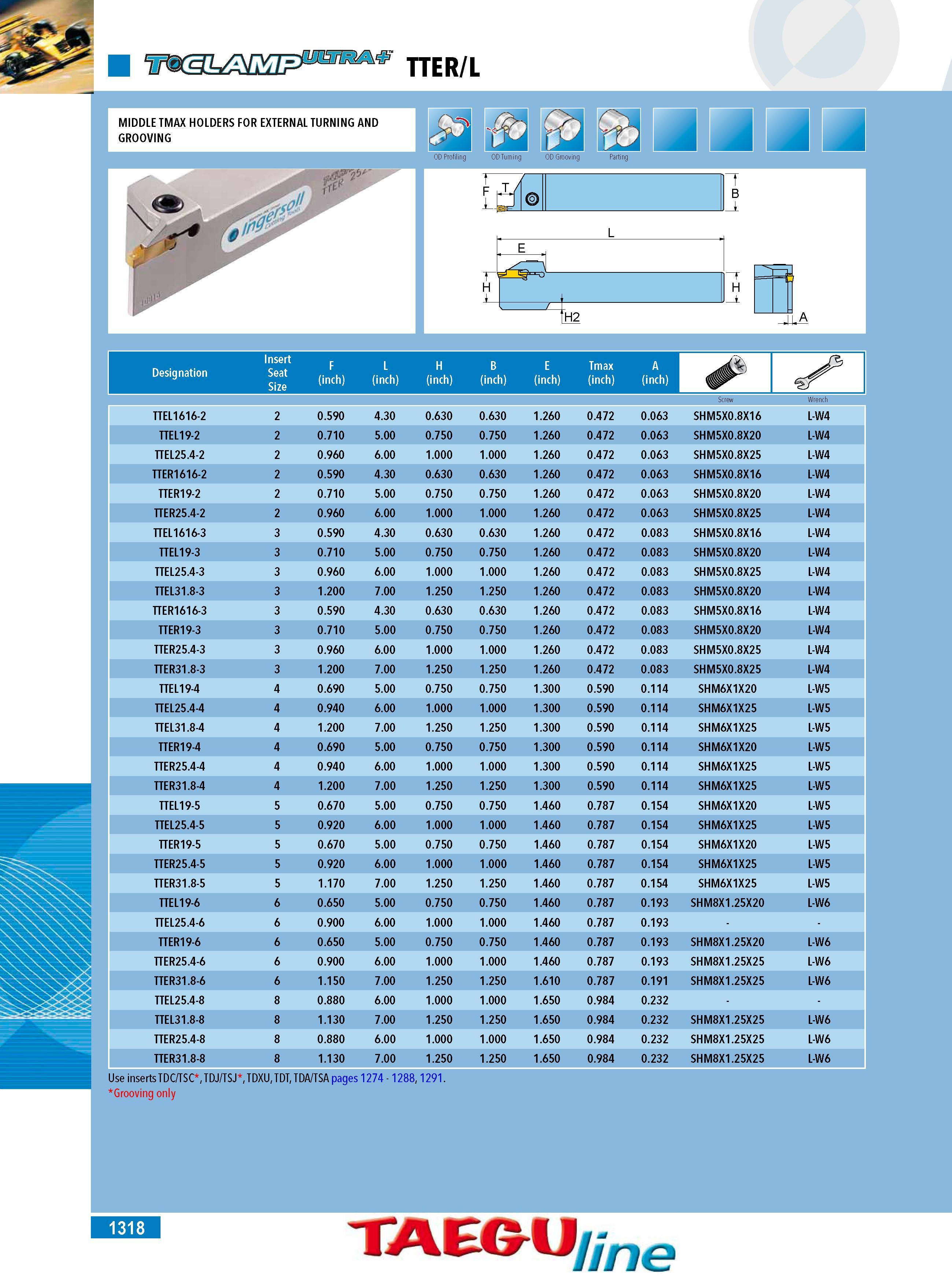

TTER L MIDDLE TMAX HOLDERS FOR EXTERNAL TURNING AND GROOVING OD Profiling OD Turning OD Grooving Parting Designation F L H B E Tmax A (inch) (inch) (inch) (inch) (inch) (inch) (inch) TTEL1616-2 2 0.590 4.30 0.630 0.630 1.260 0.472 0.063 SHM5X0.8X16 L-W4 TTEL19-2 2 0.710 5.00 0.750 0.750 1.260 0.472 0.063 SHM5X0.8X20 L-W4 TTEL25.4-2 2 0.960 6.00 1.000 1.000 1.260 0.472 0.063 SHM5X0.8X25 L-W4 TTER1616-2 2 0.590 4.30 0.630 0.630 1.260 0.472 0.063 SHM5X0.8X16 L-W4 TTER19-2 2 0.710 5.00 0.750 0.750 1.260 0.472 0.063 SHM5X0.8X20 L-W4 TTER25.4-2 2 0.960 6.00 1.000 1.000 1.260 0.472 0.063 SHM5X0.8X25 L-W4 TTEL1616-3 3 0.590 4.30 0.630 0.630 1.260 0.472 0.083 SHM5X0.8X16 L-W4 TTEL19-3 3 0.710 5.00 0.750 0.750 1.260 0.472 0.083 SHM5X0.8X20 L-W4 TTEL25.4-3 3 0.960 6.00 1.000 1.000 1.260 0.472 0.083 SHM5X0.8X25 L-W4 TTEL31.8-3 3 1.200 7.00 1.250 1.250 1.260 0.472 0.083 SHM5X0.8X20 L-W4 TTER1616-3 3 0.590 4.30 0.630 0.630 1.260 0.472 0.083 SHM5X0.8X16 L-W4 TTER19-3 3 0.710 5.00 0.750 0.750 1.260 0.472 0.083 SHM5X0.8X20 L-W4 TTER25.4-3 3 0.960 6.00 1.000 1.000 1.260 0.472 0.083 SHM5X0.8X25 L-W4 TTER31.8-3 3 1.200 7.00 1.250 1.250 1.260 0.472 0.083 SHM5X0.8X25 L-W4 TTEL19-4 4 0.690 5.00 0.750 0.750 1.300 0.590 0.114 SHM6X1X20 L-W5 TTEL25.4-4 4 0.940 6.00 1.000 1.000 1.300 0.590 0.114 SHM6X1X25 L-W5 TTEL31.8-4 4 1.200 7.00 1.250 1.250 1.300 0.590 0.114 SHM6X1X25 L-W5 TTER19-4 4 0.690 5.00 0.750 0.750 1.300 0.590 0.114 SHM6X1X20 L-W5 TTER25.4-4 4 0.940 6.00 1.000 1.000 1.300 0.590 0.114 SHM6X1X25 L-W5 TTER31.8-4 4 1.200 7.00 1.250 1.250 1.300 0.590 0.114 SHM6X1X25 L-W5 TTEL19-5 5 0.670 5.00 0.750 0.750 1.460 0.787 0.154 SHM6X1X20 L-W5 TTEL25.4-5 5 0.920 6.00 1.000 1.000 1.460 0.787 0.154 SHM6X1X25 L-W5 TTER19-5 5 0.670 5.00 0.750 0.750 1.460 0.787 0.154 SHM6X1X20 L-W5 TTER25.4-5 5 0.920 6.00 1.000 1.000 1.460 0.787 0.154 SHM6X1X25 L-W5 TTER31.8-5 5 1.170 7.00 1.250 1.250 1.460 0.787 0.154 SHM6X1X25 L-W5 TTEL19-6 6 0.650 5.00 0.750 0.750 1.460 0.787 0.193 SHM8X1.25X20 L-W6 TTEL25.4-6 6 0.900 6.00 1.000 1.000 1.460 0.787 0.193 TTER19-6 6 0.650 5.00 0.750 0.750 1.460 0.787 0.193 SHM8X1.25X20 L-W6 TTER25.4-6 6 0.900 6.00 1.000 1.000 1.460 0.787 0.193 SHM8X1.25X25 L-W6 TTER31.8-6 6 1.150 7.00 1.250 1.250 1.610 0.787 0.191 SHM8X1.25X25 L-W6 TTEL25.4-8 8 0.880 6.00 1.000 1.000 1.650 0.984 0.232 TTEL31.8-8 8 1.130 7.00 1.250 1.250 1.650 0.984 0.232 SHM8X1.25X25 L-W6 TTER25.4-8 8 0.880 6.00 1.000 1.000 1.650 0.984 0.232 SHM8X1.25X25 L-W6 TTER31.8-8 8 1.130 7.00 1.250 1.250 1.650 0.984 0.232 SHM8X1.25X25 L-W6 Use inserts TDC TSC TDJ TSJ TDXU TDT TDA TSA pages 1274 - 1288 1291. Grooving only TAEGU line Insert Seat Size 1318
