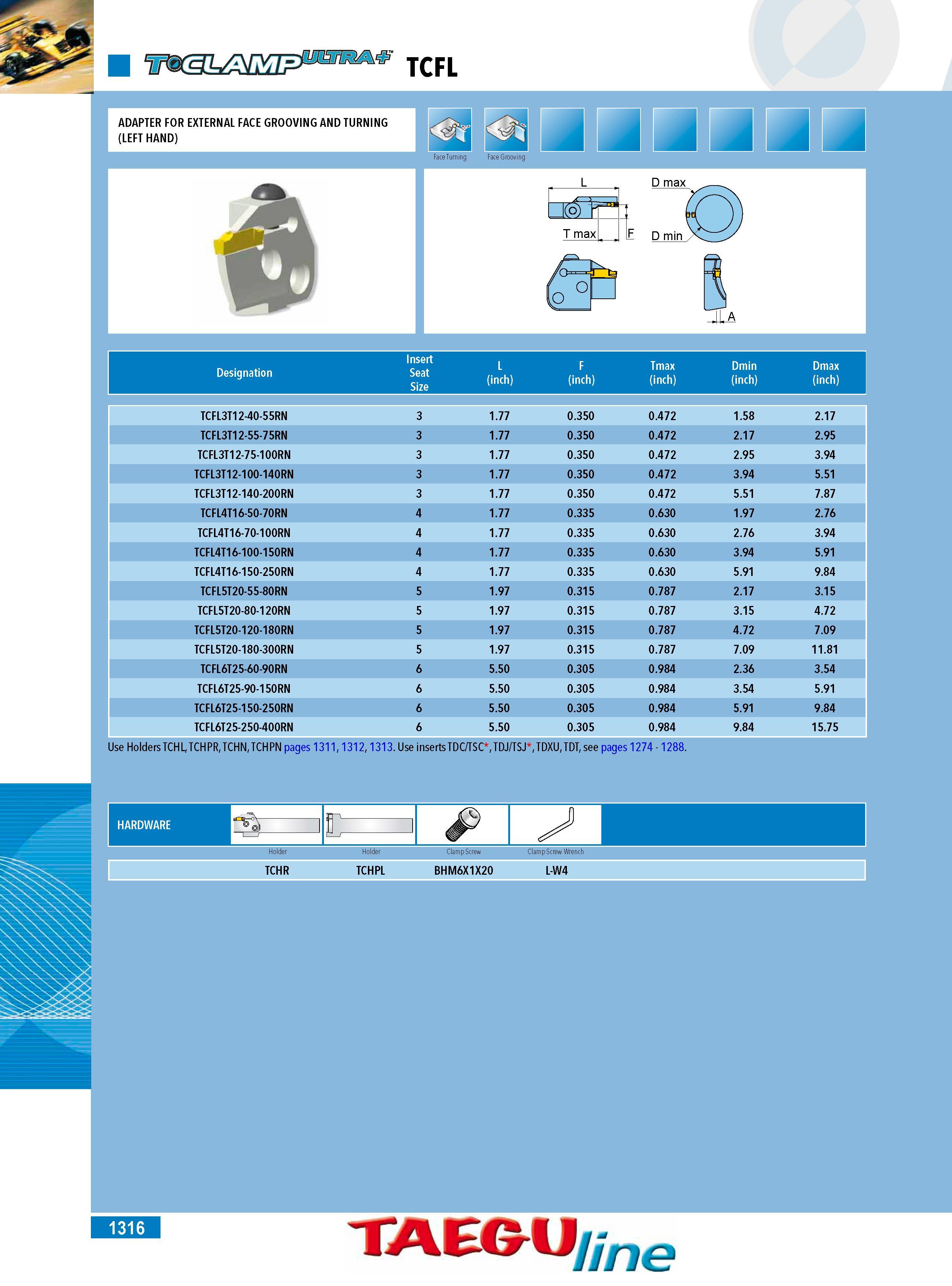

TCFL ADAPTER FOR EXTERNAL FACE GROOVING AND TURNING (LEFT HAND) Face Turning Face Grooving L 1(0) h T max D max F D i Designation Insert Seat Size L (inch) F (inch) Tmax (inch) Dmin (inch) Dmax (inch) TCFL3T12-40-55RN 3 0.350 0.472 1.58 2.17 TCFL3T12-55-75RN 3 0.350 0.472 2.17 2.95 TCFL3T12-75-100RN 3 0.350 0.472 2.95 3.94 TCFL3T12-100-140RN 3 0.350 0.472 3.94 5.51 TCFL3T12-140-200RN 3 0.350 0.472 5.51 7.87 TCFL4T16-50-70RN 4 0.335 0.630 1.97 2.76 TCFL4T16-70-100RN 4 0.335 0.630 2.76 3.94 TCFL4T16-100-150RN 4 0.335 0.630 3.94 5.91 TCFL4T16-150-250RN 4 0.335 0.630 5.91 9.84 TCFL5T20-55-80RN 5 1.97 0.315 0.787 2.17 3.15 TCFL5T20-80-120RN 5 1.97 0.315 0.787 3.15 4.72 TCFL5T20-120-180RN 5 1.97 0.315 0.787 4.72 7.09 TCFL5T20-180-300RN 5 1.97 0.315 0.787 7.09 11.81 TCFL6T25-60-90RN 6 5.50 0.305 0.984 2.36 3.54 TCFL6T25-90-150RN 6 5.50 0.305 0.984 3.54 5.91 TCFL6T25-150-250RN 6 5.50 0.305 0.984 5.91 9.84 TCFL6T25-250-400RN 6 5.50 0.305 0.984 9.84 15.75 Use Holders TCHL TCHPR TCHN TCHPN pages 1311 1312 1313. Use inserts TDC TSC TDJ TSJ TDXU TDT see pages 1274 - 1288. TCHR TCHPL Clamp Screw BHM6X1X20 Clamp Screw Wrench L-W4 Holder Holder TAEGU line 1316
