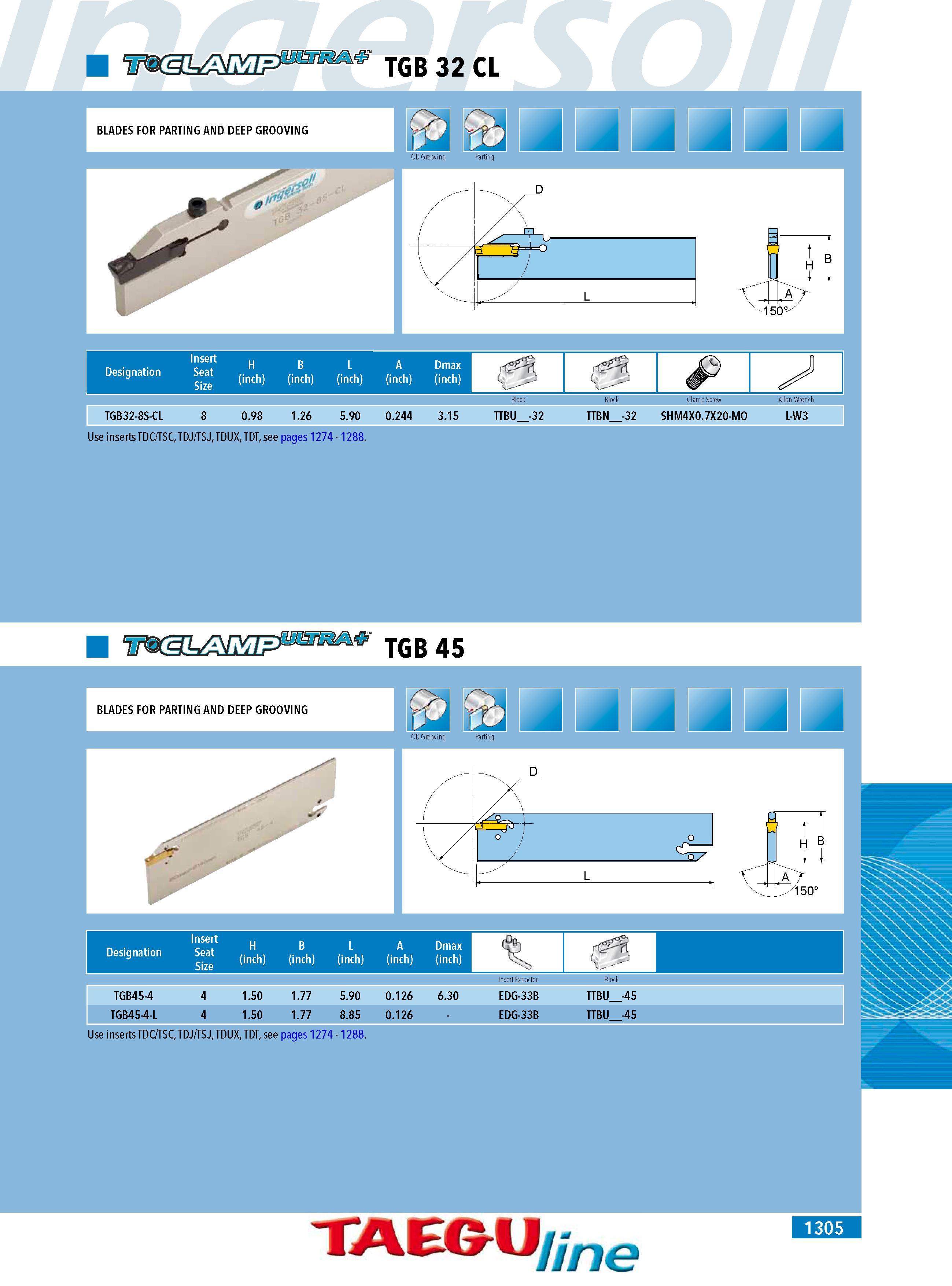

Block Block Clamp Screw Allen Wrench TGB32-8S-CL 8 0.98 1.26 5.90 0.244 3.15 TTBU -32 TTBN -32 SHM4X0.7X20-MO L-W3 Use inserts TDC TSC TDJ TSJ TDUX TDT see pages 1274 - 1288. TGB 45 BLADES FOR PARTING AND DEEP GROOVING o L Insert Designation Seat Size H B L A Dmax (inch) (inch) (inch) (inch) (inch) TGB45-4 4 1.50 1.77 5.90 0.126 6.30 EDG-33B TTBU -45 TGB45-4-L 4 1.50 1.77 8.85 0.126 - EDG-33B TTBU -45 Use inserts TDC TSC TDJ TSJ e e s 5 X U TD pages 1274 8. 8 Insert Extractor Block TAEGU line 1305
