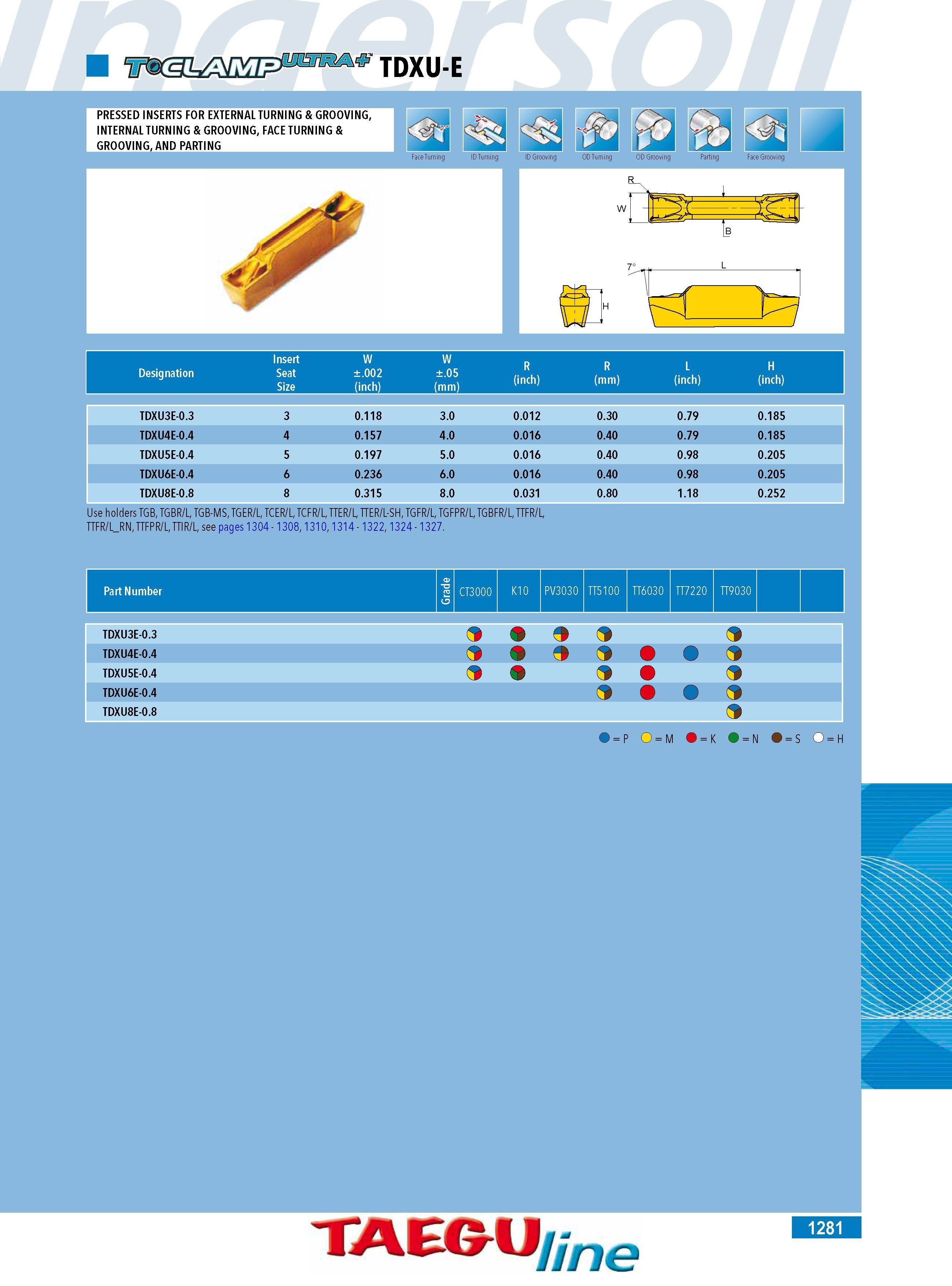

HB(ML G IPS M TDXU-E PRESSED INSERTS FOR EXTERNAL TURNING & GROOVING INTERNAL TURNING & GROOVING FACE TURNING & GROOVING AND PARTING ID Grooving OD Turning OD Grooving Parting Face Grooving TDXU3E-0.3 3 0.118 3.0 0.012 0.30 0.79 0.185 TDXU4E-0.4 4 0.157 4.0 0.016 0.40 0.79 0.185 TDXU5E-0.4 5 0.197 5.0 0.016 0.40 0.98 0.205 TDXU6E-0.4 6 0.236 6.0 0.016 0.40 0.98 0.205 TDXU8E-0.8 8 0.315 8.0 0.031 0.80 1.18 0.252 Use holders TGB TGBR L TGB-MS TGER L TCER L TCFR L TTER L TTER L-SH TGFR L TGFPR L TGBFR L TTFR L TTFR LRN TTFPR L TTIR L see pages 1304 - 1308 1310 1314 - 1322 1324 - 1327. Part Number e d as CT3000 K10 PV3030 TT5100 Gr TDXU3E-0.3 9 TDXU4E-0.4 9 O TDXU5E-0.4 TDXU6E-0.4 TDXU8E-0.8 O P O M O K o N O S O H TAEGU line 1281
