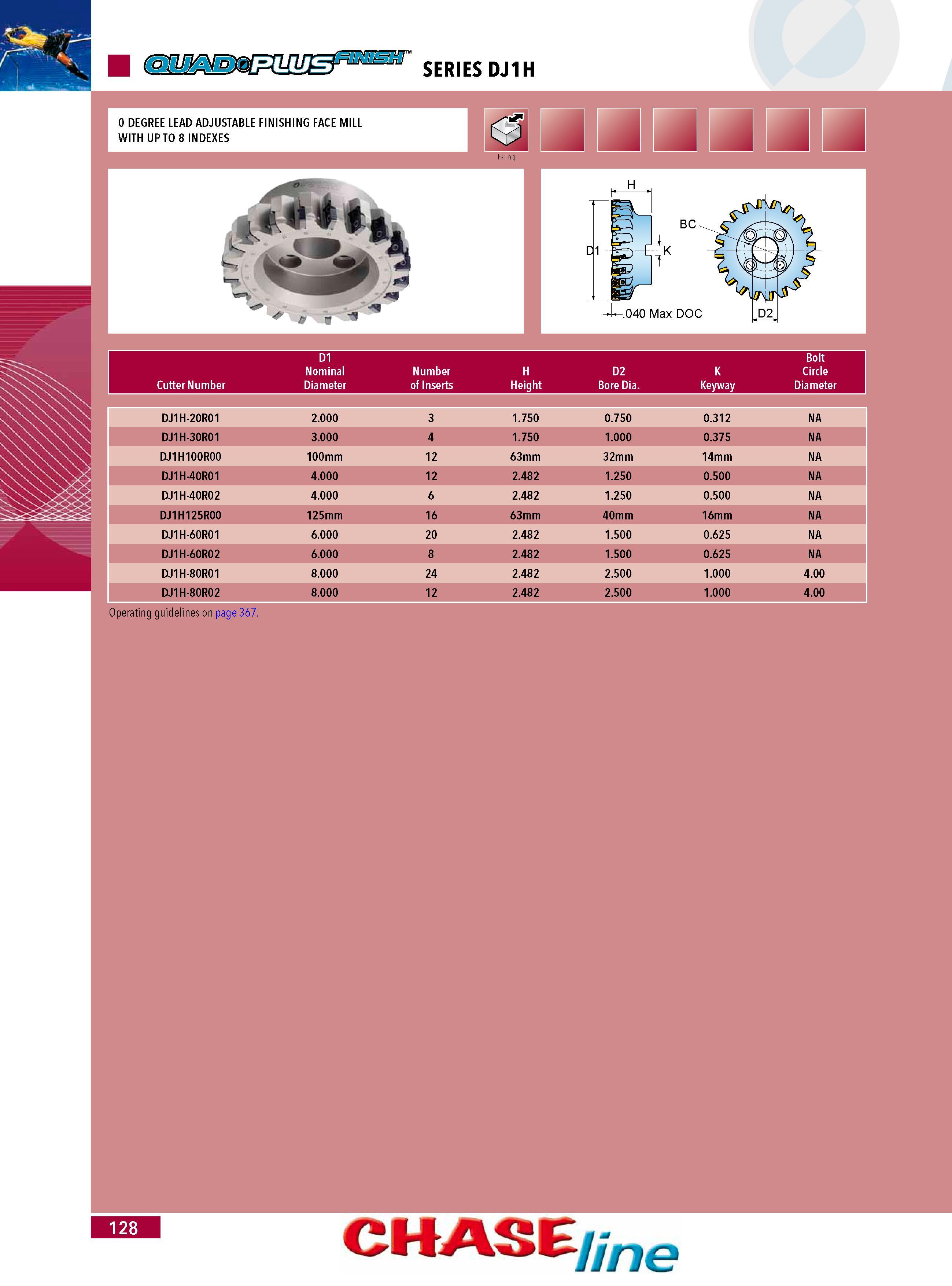

SERIES DJ1H 0 DEGREE LEAD ADJUSTABLE FINISHING FACE MILL WITH UP TO 8 INDEXES Cutter Number D1 Nominal Diameter Number of Inserts DJ1H-20R01 2.000 3 1.750 0.750 0.312 NA DJ1H-30R01 3.000 4 1.750 1.000 0.375 NA DJ1H100R00 100mm 12 63mm 32mm 14mm NA DJ1H-40R01 4.000 12 2.482 1.250 0.500 NA DJ1H-40R02 4.000 6 2.482 1.250 0.500 NA DJ1H125R00 125mm 16 63mm 40mm 16mm NA DJ1H-60R01 6.000 20 2.482 1.500 0.625 NA DJ1H-60R02 6.000 8 2.482 1.500 0.625 NA DJ1H-80R01 8.000 24 2.482 2.500 1.000 4.00 DJ1H-80R02 8.000 12 2.482 2.500 1.000 4.00 Operating guidelines on page 367. 128 CHASt ne
