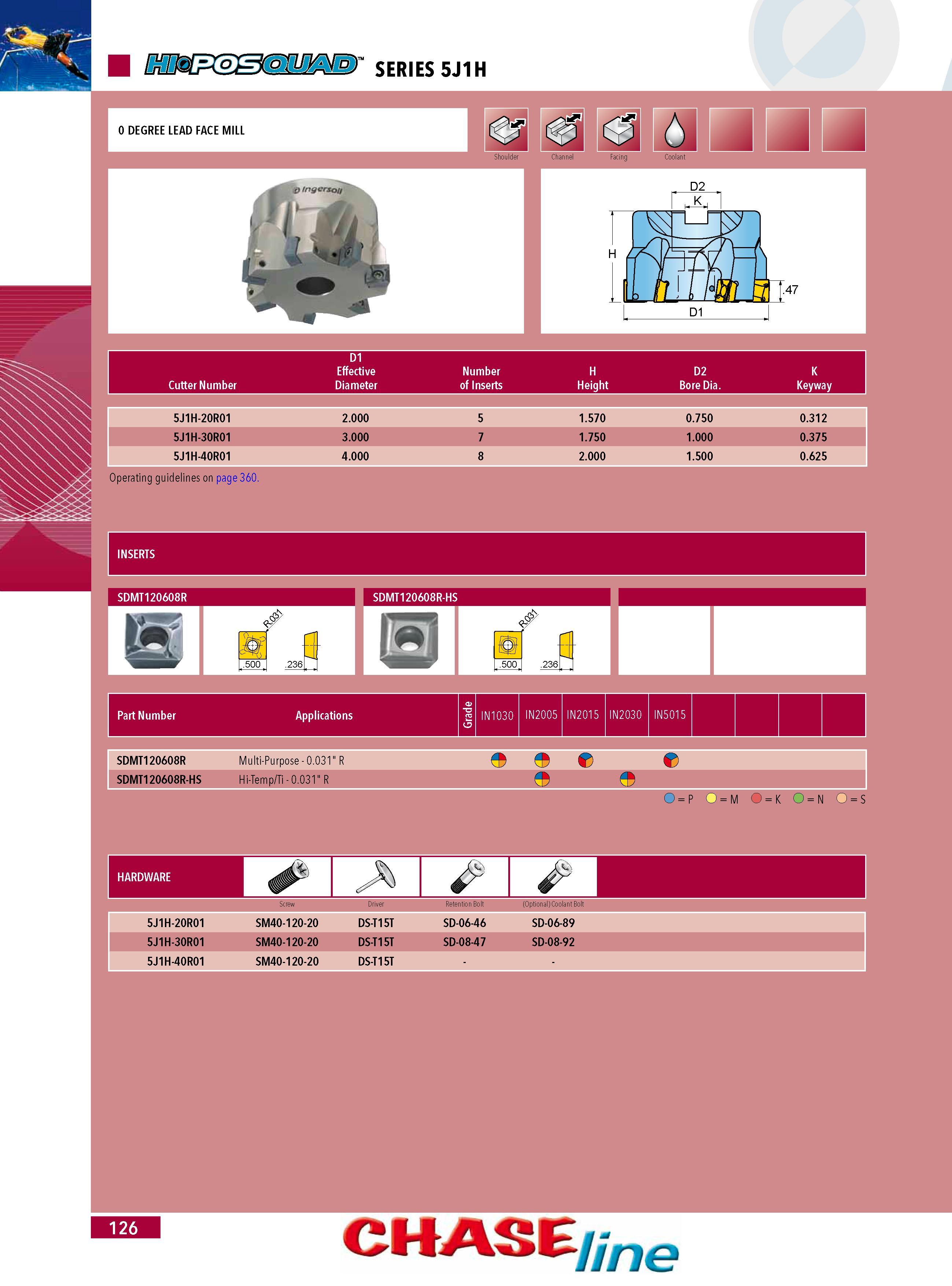

D1 Effective Number H D2 K Cutter Number Diameter of Inserts Height Bore Dia. Keyway 5J1H-20R01 2.000 5 1.570 0.750 0.312 5J1H-30R01 3.000 7 1.750 1.000 0.375 5J1H-40R01 4.000 8 2.000 1.500 0.625 Part Number Applications IN1030 IN2005 IN2015 IN2030 IN5015 SDMT120608R Multi-Purpose - 0.031" R e c SDMT120608R-HS Hi-Temp Ti - 0.031" R O P O M O K O N O S HARDWARE Screw Driver Retention Bolt (Optional) Coolant Bolt 5J1H-20R01 SM40-120-20 DS-T15T SD-06-46 SD-06-89 5J1H-30R01 SM40-120-20 DS-T15T SD-08-47 SD-08-92 5J1H-40R01 SM40-120-20 DS-T15T 126 CHASt ne
