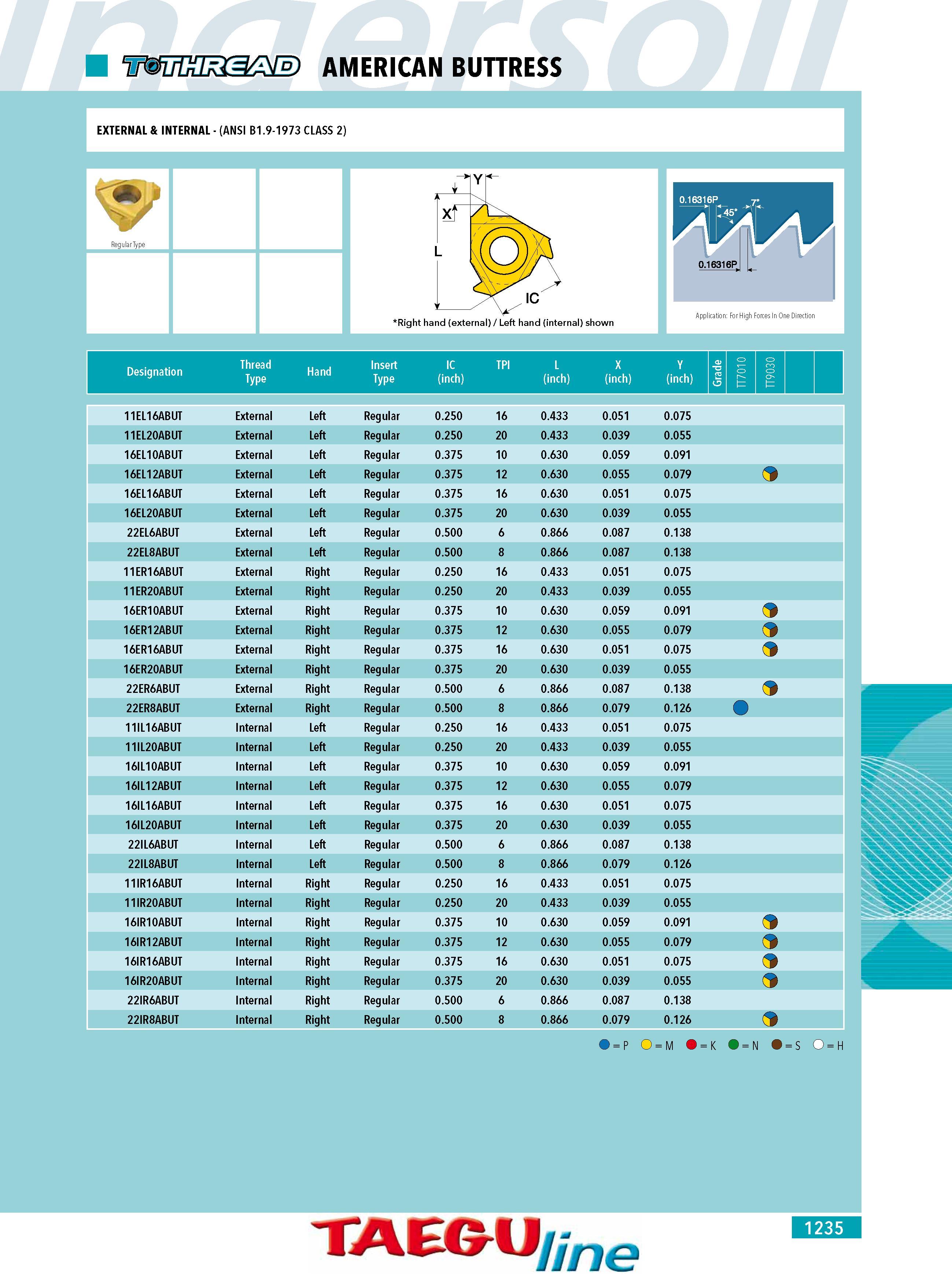

AMERICAN BUTTRESS EXTERNAL & INTERNAL - (ANSI B1.9-1973 CLASS 2) Regular Type Designation Right hand (external) Left hand (internal) shown lIlTv 'l'; j. SS 0.16316P w Application: For High Forces In One Direction L X Y (inch) (inch) (inch) TT7010 TT9030 11EL16ABUT External Left Regular 0.250 16 0.433 0.051 0.075 11EL20ABUT External Left Regular 0.250 20 0.433 0.039 0.055 16EL10ABUT External Left Regular 0.375 10 0.630 0.059 0.091 16EL12ABUT External Left Regular 0.375 12 0.630 0.055 0.079 o 16EL16ABUT External Left Regular 0.375 16 0.630 0.051 0.075 16EL20ABUT External Left Regular 0.375 20 0.630 0.039 0.055 22EL6ABUT External Left Regular 0.500 6 0.866 0.087 0.138 22EL8ABUT External Left Regular 0.500 8 0.866 0.087 0.138 11ER16ABUT External Right Regular 0.250 16 0.433 0.051 0.075 11ER20ABUT External Right Regular 0.250 20 0.433 0.039 0.055 16ER10ABUT External Right Regular 0.375 10 0.630 0.059 0.091 o 16ER12ABUT External Right Regular 0.375 12 0.630 0.055 0.079 16ER16ABUT External Right Regular 0.375 16 0.630 0.051 0.075 o 16ER20ABUT External Right Regular 0.375 20 0.630 0.039 0.055 22ER6ABUT External Right Regular 0.500 6 0.866 0.087 0.138 22ER8ABUT External Right Regular 0.500 8 0.866 0.079 0.126 11IL16ABUT Internal Left Regular 0.250 16 0.433 0.051 0.075 11IL20ABUT Internal Left Regular 0.250 20 0.433 0.039 0.055 16IL10ABUT Internal Left Regular 0.375 10 0.630 0.059 0.091 16IL12ABUT Internal Left Regular 0.375 12 0.630 0.055 0.079 16IL16ABUT Internal Left Regular 0.375 16 0.630 0.051 0.075 16IL20ABUT Internal Left Regular 0.375 20 0.630 0.039 0.055 22IL6ABUT Internal Left Regular 0.500 6 0.866 0.087 0.138 22IL8ABUT Internal Left Regular 0.500 8 0.866 0.079 0.126 11IR16ABUT Internal Right Regular 0.250 16 0.433 0.051 0.075 11IR20ABUT Internal Right Regular 0.250 20 0.433 0.039 0.055 16IR10ABUT Internal Right Regular 0.375 10 0.630 0.059 0.091 16IR12ABUT Internal Right Regular 0.375 12 0.630 0.055 0.079 16IR16ABUT Internal Right Regular 0.375 16 0.630 0.051 0.075 o 16IR20ABUT Internal Right Regular 0.375 20 0.630 0.039 0.055 o 22IR6ABUT Internal Right Regular 0.500 6 0.866 0.087 0.138 22IR8ABUT Internal Right Regular 0.500 8 0.866 0.079 0.126 o ) P O M ) K ) N ) S O H TAEGU line 1235 Insert Type IC (inch) TPI Hand
