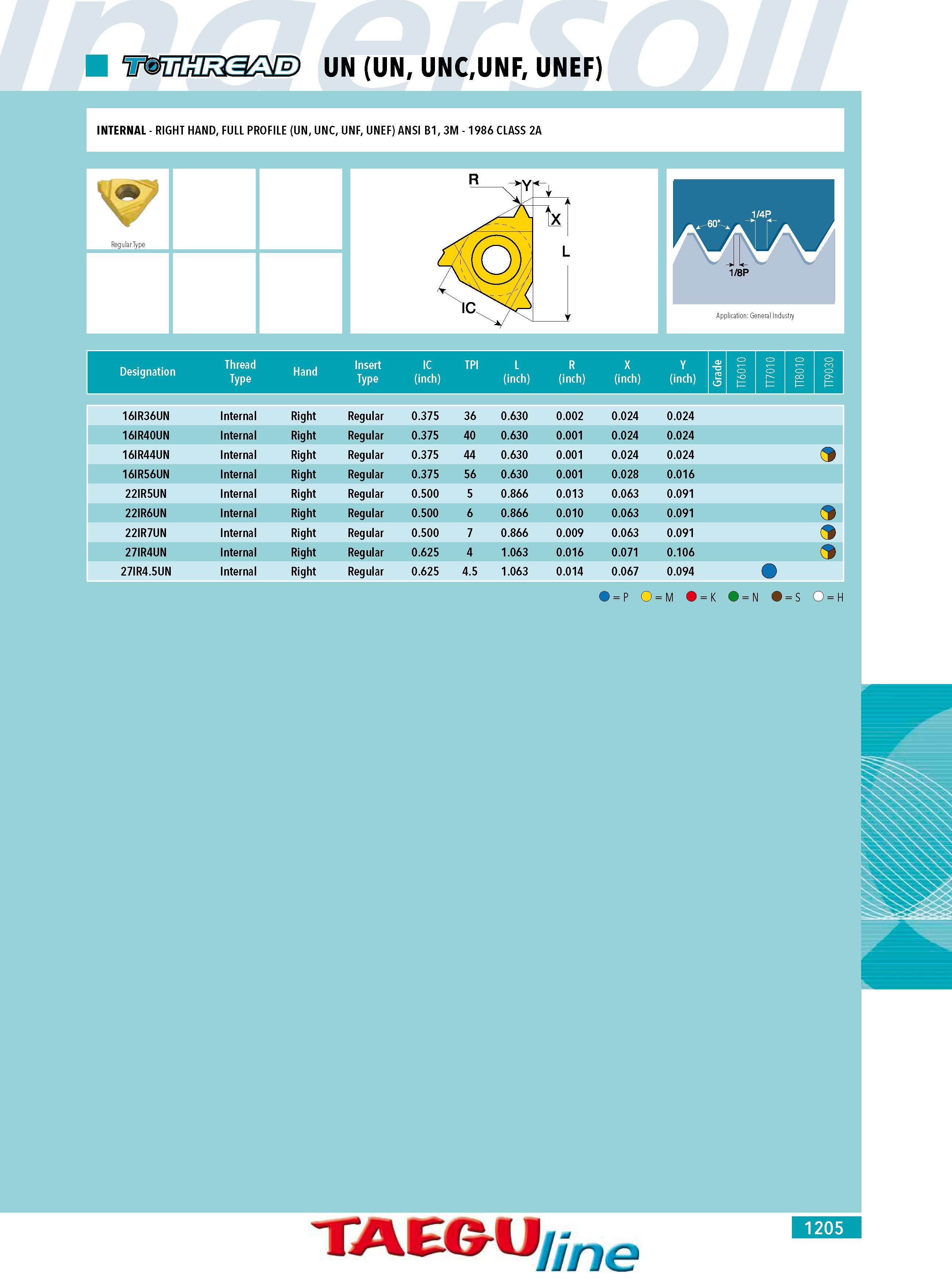

INTERNAL - RIGHT HAND FULL PROFILE (UN UNC UNF UNEF) ANSI B1 3M - 1986 CLASS 2A p1y tx p L IC O V T 1 4P 1 1 8P r Application: General Industry Designation LRXY (inch) (inch) (inch) (inch) t t t t 16IR36UN Internal Right Regular 0.375 36 0.630 0.002 0.024 0.024 16IR40UN Internal Right Regular 0.375 40 0.630 0.001 0.024 0.024 16IR44UN Internal Right Regular 0.375 44 0.630 0.001 0.024 0.024 o 16IR56UN Internal Right Regular 0.375 56 0.630 0.001 0.028 0.016 22IR5UN Internal Right Regular 0.500 5 0.866 0.013 0.063 0.091 22IR6UN Internal Right Regular 0.500 6 0.866 0.010 0.063 0.091 22IR7UN Internal Right Regular 0.500 7 0.866 0.009 0.063 0.091 27IR4UN Internal Right Regular 0.625 4 1.063 0.016 0.071 0.106 27IR4.5UN Internal Right Regular 0.625 4.5 1.063 0.014 0.067 0.094 O P O M O K O N O S O H Insert Type IC (inch) TPI Hand TAEG-1l 7e 1205
