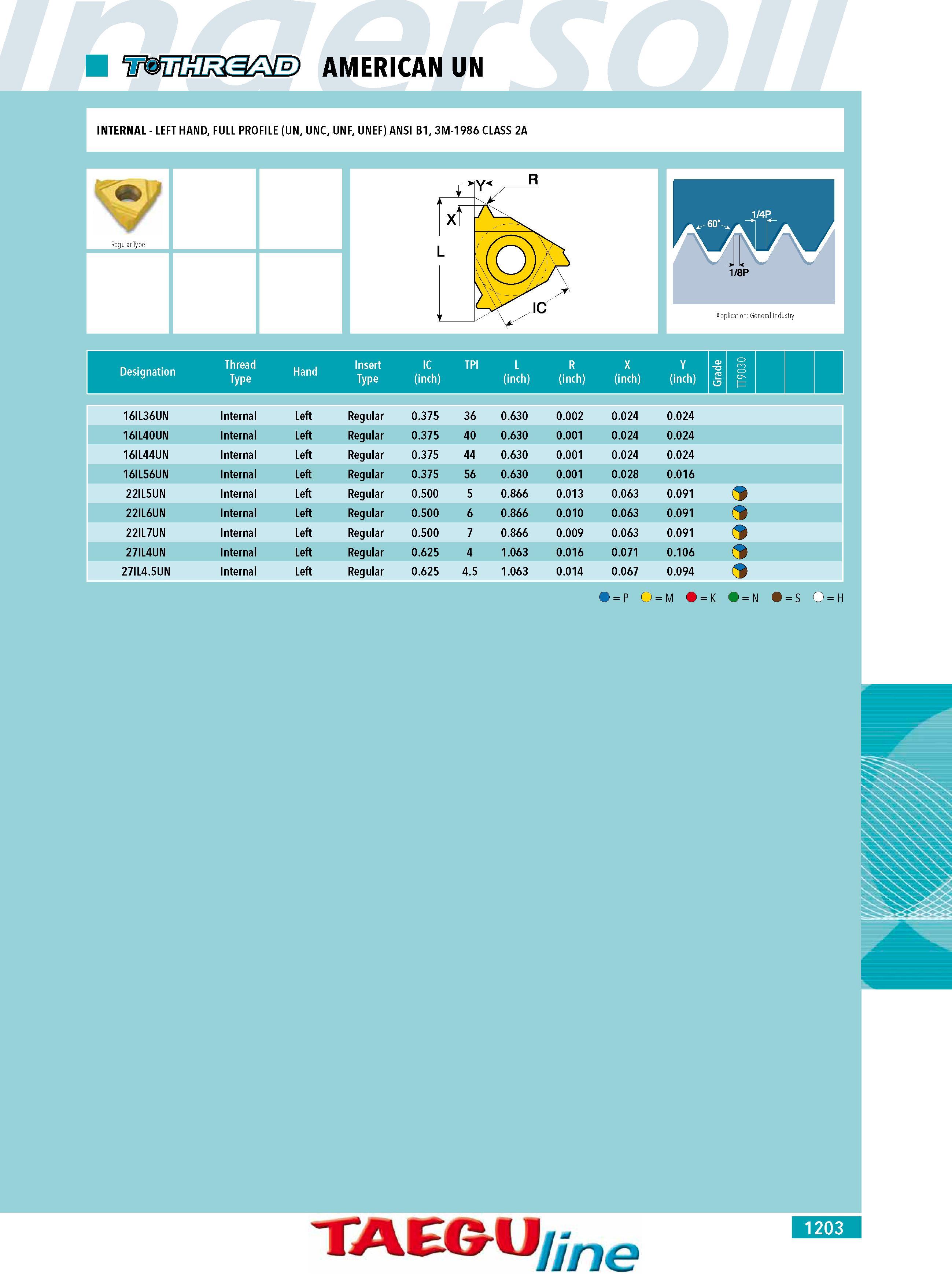

AMERICAN UN Designation t '"xl Y y L 1C 1 4P 1 8P r Application: General Industry L R X Y (inch) (inch) (inch) (inch) 16IL36UN Internal Left Regular 0.375 36 0.630 0.002 0.024 0.024 16IL40UN Internal Left Regular 0.375 40 0.630 0.001 0.024 0.024 16IL44UN Internal Left Regular 0.375 44 0.630 0.001 0.024 0.024 16IL56UN Internal Left Regular 0.375 56 0.630 0.001 0.028 0.016 22IL5UN Internal Left Regular 0.500 5 0.866 0.013 0.063 0.091 9 22IL6UN Internal Left Regular 0.500 6 0.866 0.010 0.063 0.091 22IL7UN Internal Left Regular 0.500 7 0.866 0.009 0.063 0.091 27IL4UN Internal Left Regular 0.625 4 1.063 0.016 0.071 0.106 c 27IL4.5UN Internal Left Regular 0.625 4.5 1.063 0.014 0.067 0.094 o ) P O M O K O N ) S O H Insert Type IC (inch) TPI Hand TAEG-1l 7e 1203
