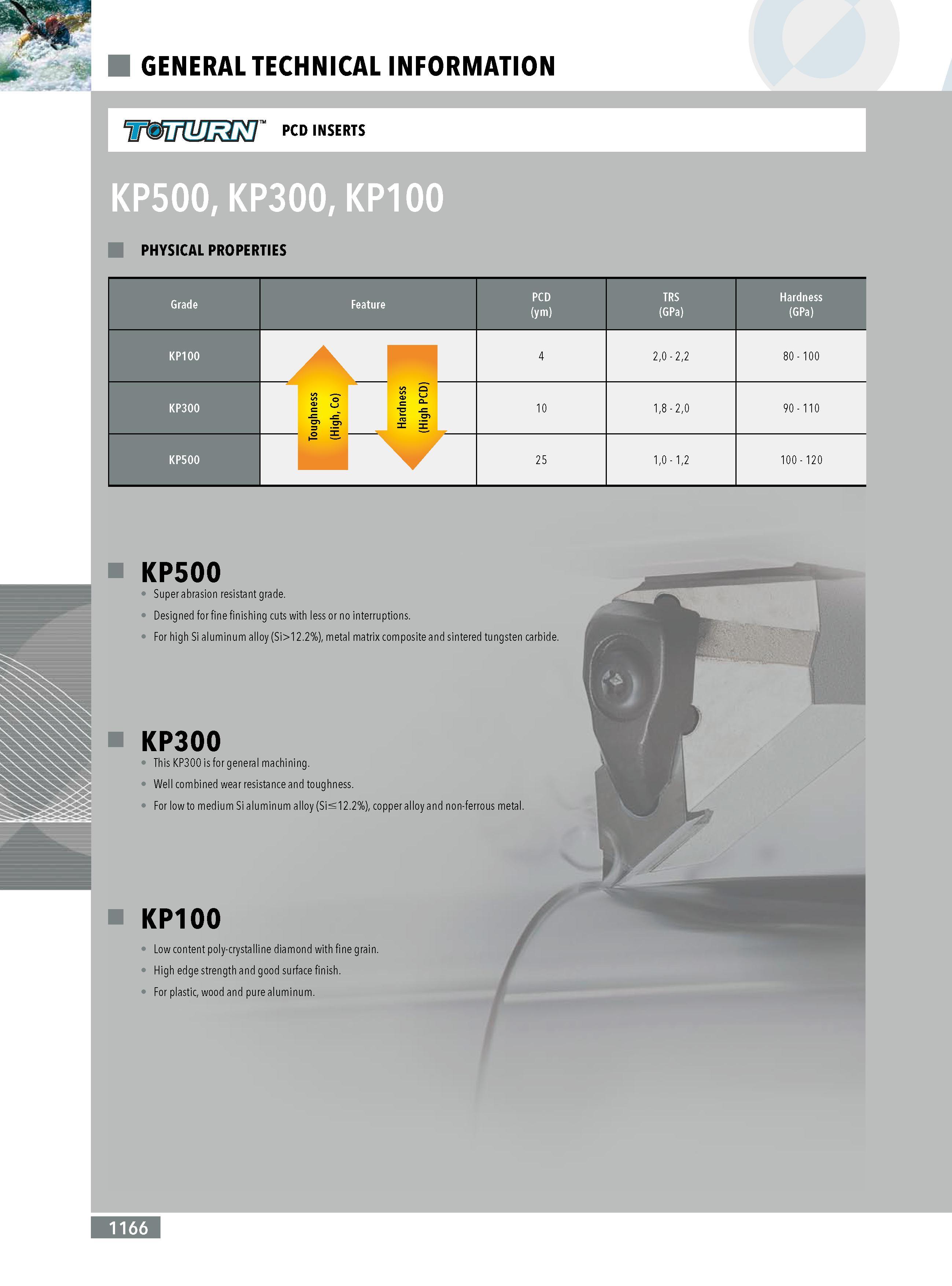

GENERAL TECHNICAL INFORMATION PCD INSERTS KP500 KP300 KP100 PHYSICAL PROPERTIES G rad e Feature PCD (ym) TRS (GPa) Hardness (GPa) K P10 0 4 20-22 80-100 K P30 0 - . S E Hardness (High PCD) 10 18-20 90-110 K P50 0 25 10-12 100-120 KP500 Super abrasion resistant grade. Designed for fine finishing cuts with less or no interruptions. For high Si aluminum alloy (Si12.2%) metal matrix composite and sintered tungsten carbide. KP300 This KP300 is for general machining. Well combined wear resistance and toughness. For low to medium Si aluminum alloy (Si 12.2%) copper alloy and non-ferrous metal. KP100 Low content poly-crystalline diamond with fine grain. High edge strength and good surface finish. For plastic wood and pure aluminum. 1166
