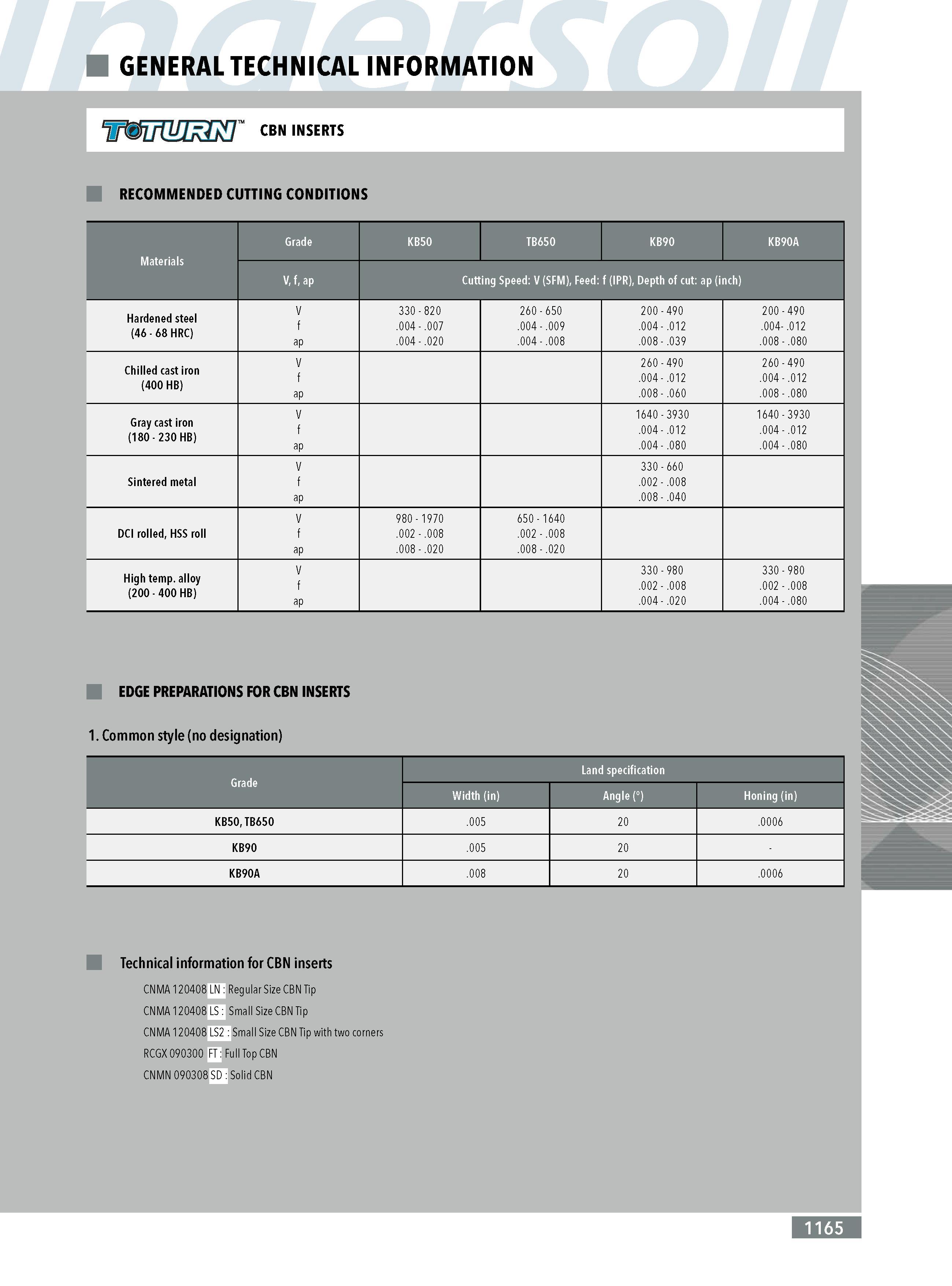

GENERAL TECHNICAL INFORMATION RECOMMENDED CUTTING CONDITIONS Materials Grade KB50 TB650 KB90 KB90A V f ap Cutting Speed: V (SFM) Feed: f (IPR) Depth of cut: ap (inch) Hardened steel (46 - 68 HRC) V f ap 330 - 820 .004 - .007 .004 - .020 260 - 650 .004 - .009 .004 - .008 200 - 490 .004 - .012 .008 - .039 200 - 490 .004- .012 .008 - .080 Chilled cast iron (400 HB) V f ap 260 - 490 .004 - .012 .008 - .060 260 - 490 .004 - .012 .008 - .080 Gray cast iron (180 - 230 HB) V f ap 1640 - 3930 .004 - .012 .004 - .080 1640 - 3930 .004 - .012 .004 - .080 Sintered metal V f ap 330 - 660 .002 - .008 .008 - .040 DCI rolled HSS roll V f ap 980 - 1970 .002 - .008 .008 - .020 650 - 1640 .002 - .008 .008 - .020 High temp. alloy (200 - 400 HB) V f ap 330 - 980 .002 - .008 .004 - .020 330 - 980 .002 - .008 .004 - .080 EDGE PREPARATIONS FOR CBN INSERTS 1. Common style (no designation) Grade Land specification Width (in) Angle () Honing (in) KB50TB650 .005 20 .0006 KB90 .005 20 KB90A .008 20 .0006 I Technical information for CBN inserts CNMA 120408 LN Regular Size CBN Tip CNMA 120408 LS Small Size CBN Tip CNMA 120408 LS2 Small Size CBN Tip with two corners RCGX 090300 FT Full Top CBN CNMN 090308 SD Solid CBN 1165
