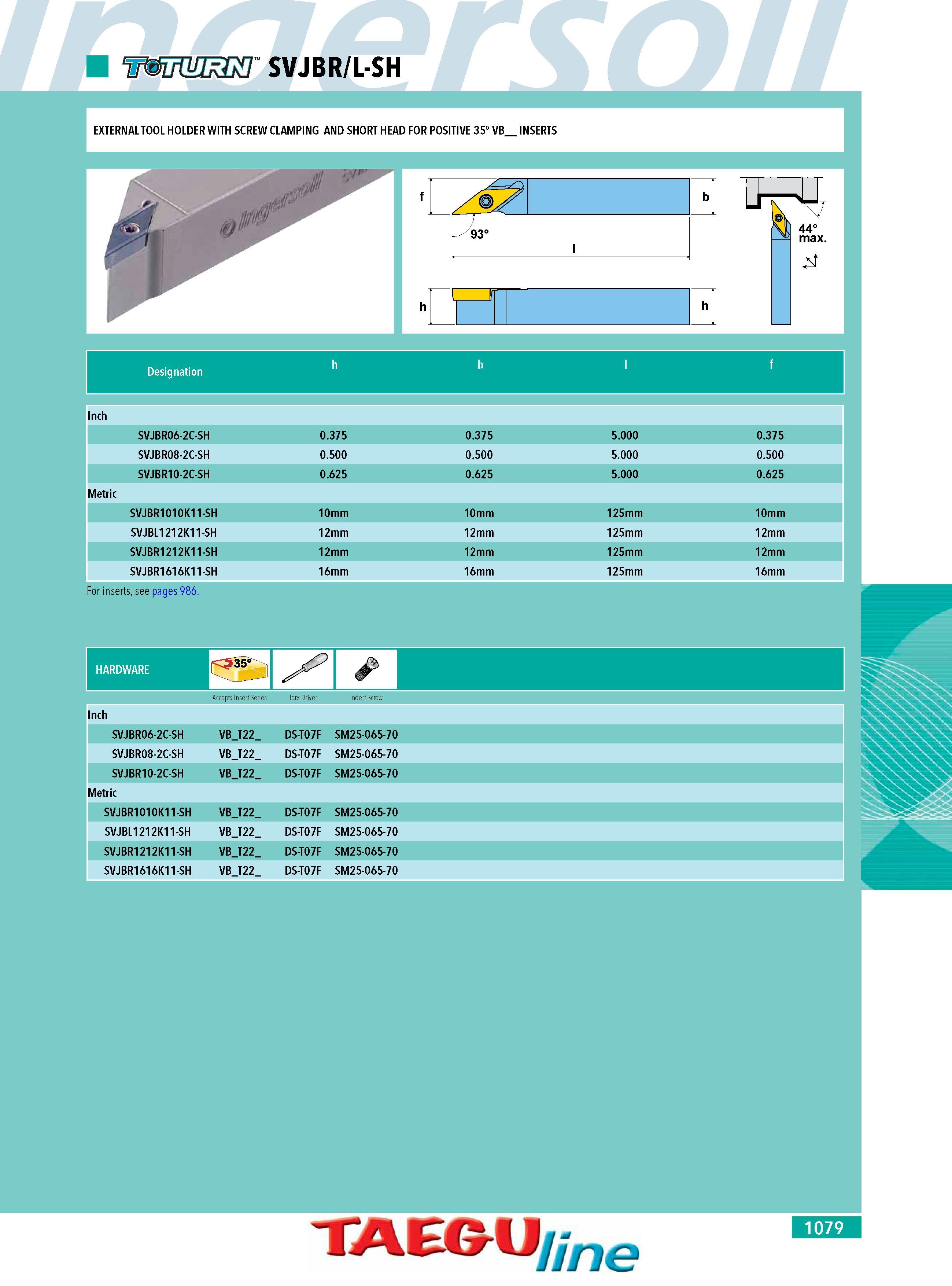

svjbr l-sh EXTERNAL TOOL HOLDER WITH SCREW CLAMPING AND SHORT HEAD FOR POSITIVE 35 VB INSERTS Designation Inch SVJBR06-2C-SH 0.375 0.375 5.000 0.375 SVJBR08-2C-SH 0.500 0.500 5.000 0.500 SVJBR10-2C-SH 0.625 0.625 5.000 0.625 Metric SVJBR1010K11-SH 10mm 10mm 125mm 10mm SVJBL1212K11-SH 12mm 12mm 125mm 12mm SVJBR1212K11-SH 12mm 12mm 125mm 12mm SVJBR1616K11-SH 16mm 16mm 125mm 16mm For inserts see pages 986. Accepts Insert Series Inch SVJBR06-2C-SH VBT22 DS-T07F SM25-065-70 SVJBR08-2C-SH VBT22 DS-T07F SM25-065-70 SVJBR10-2C-SH VBT22 DS-T07F SM25-065-70 Metric SVJBR1010K11-SH VBT22 DS-T07F SM25-065-70 SVJBL1212K11-SH VBT22 DS-T07F SM25-065-70 SVJBR1212K11-SH VBT22 DS-T07F SM25-065-70 SVJBR1616K11-SH VBT22 DS-T07F SM25-065-70 lorx Driver SJKf&Uline 1079
