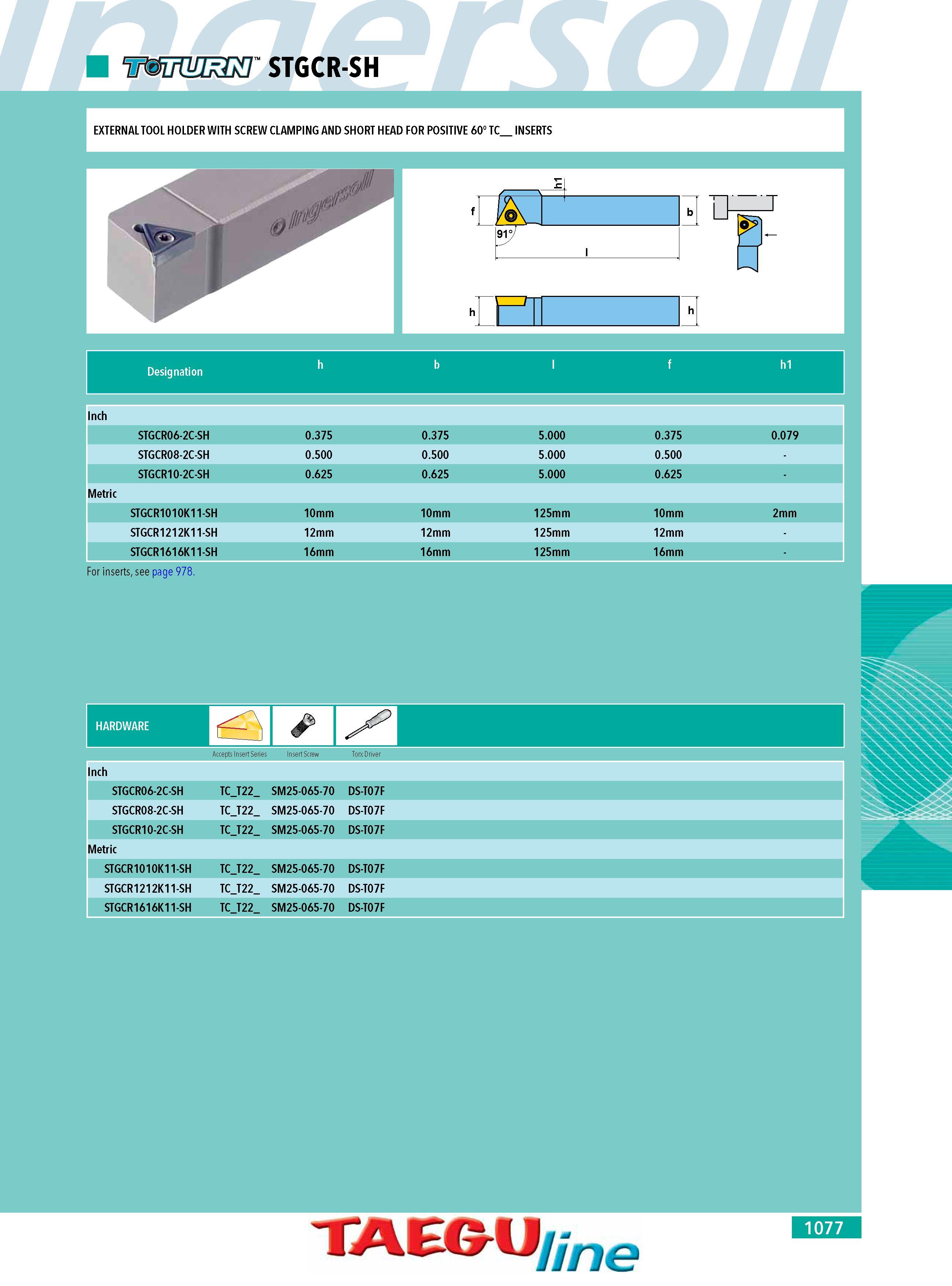

stgcr-sh EXTERNAL TOOL HOLDER WITH SCREW CLAMPING AND SHORT HEAD FOR POSITIVE 60 TC INSERTS Inch STGCR06-2C-SH 0.375 0.375 5.000 0.375 0.079 STGCR08-2C-SH 0.500 0.500 5.000 0.500 STGCR10-2C-SH 0.625 0.625 5.000 0.625 Metric STGCR1010K11-SH 10mm 10mm 125mm 10mm 2mm STGCR1212K11-SH 12mm 12mm 125mm 12mm STGCR1616K11-SH 16mm 16mm 125mm 16mm For inserts see page 978. Accepts Insert Series Insert Screw Torx Driver Inch STGCR06-2C-SH TCT22 SM25-065-70 DS-T07F STGCR08-2C-SH TCT22 SM25-065-70 DS-T07F STGCR10-2C-SH TCT22 SM25-065-70 DS-T07F Metric STGCR1010K11-SH TCT22 SM25-065-70 DS-T07F STGCR1212K11-SH TCT22 SM25-065-70 DS-T07F STGCR1616K11-SH TCT22 SM25-065-70 DS-T07F
