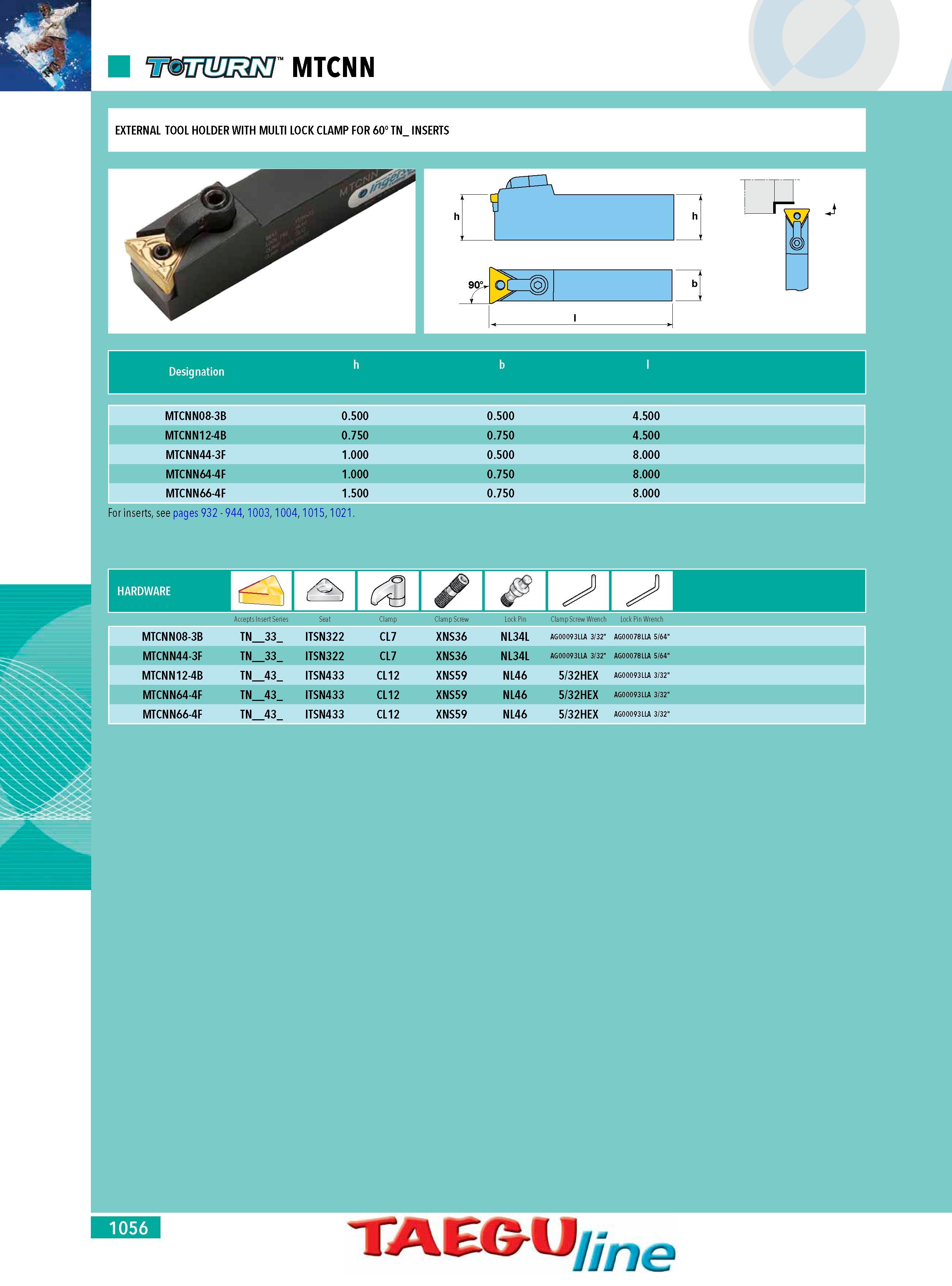

mtcnn EXTERNAL TOOL HOLDER WITH MULTI LOCK CLAMP FOR 60 TN INSERTS Designation MTCNN08-3B 0.500 0.500 4.500 MTCNN12-4B 0.750 0.750 4.500 MTCNN44-3F 1.000 0.500 8.000 MTCNN64-4F 1.000 0.750 8.000 MTCNN66-4F 1.500 0.750 8.000 For inserts see pages 932 - 944 1003 1004 1015 1021. Accepts Insert Series Clamp Clamp Screw Clamp Screw Wrench Lock Pin Wrench MTCNN08-3B TN 33 ITSN322 CL7 XNS36 NL34L AG00093LLA 3 32" AG00078LLA 5 64" MTCNN44-3F TN 33 ITSN322 CL7 XNS36 NL34L AG00093LLA 3 32" AG00078LLA 5 64" MTCNN12-4B TN 43 ITSN433 CL12 XNS59 NL46 5 32HEX AG00093LLA 3 32" MTCNN64-4F TN 43 ITSN433 CL12 XNS59 NL46 5 32HEX AG00093Lm 3 32" MTCNN66-4F TN 43 ITSN433 CL12 XNS59 NL46 5 32HEX AG00093Lm 3 32" Lock Pi 1056 'VEGU ne
