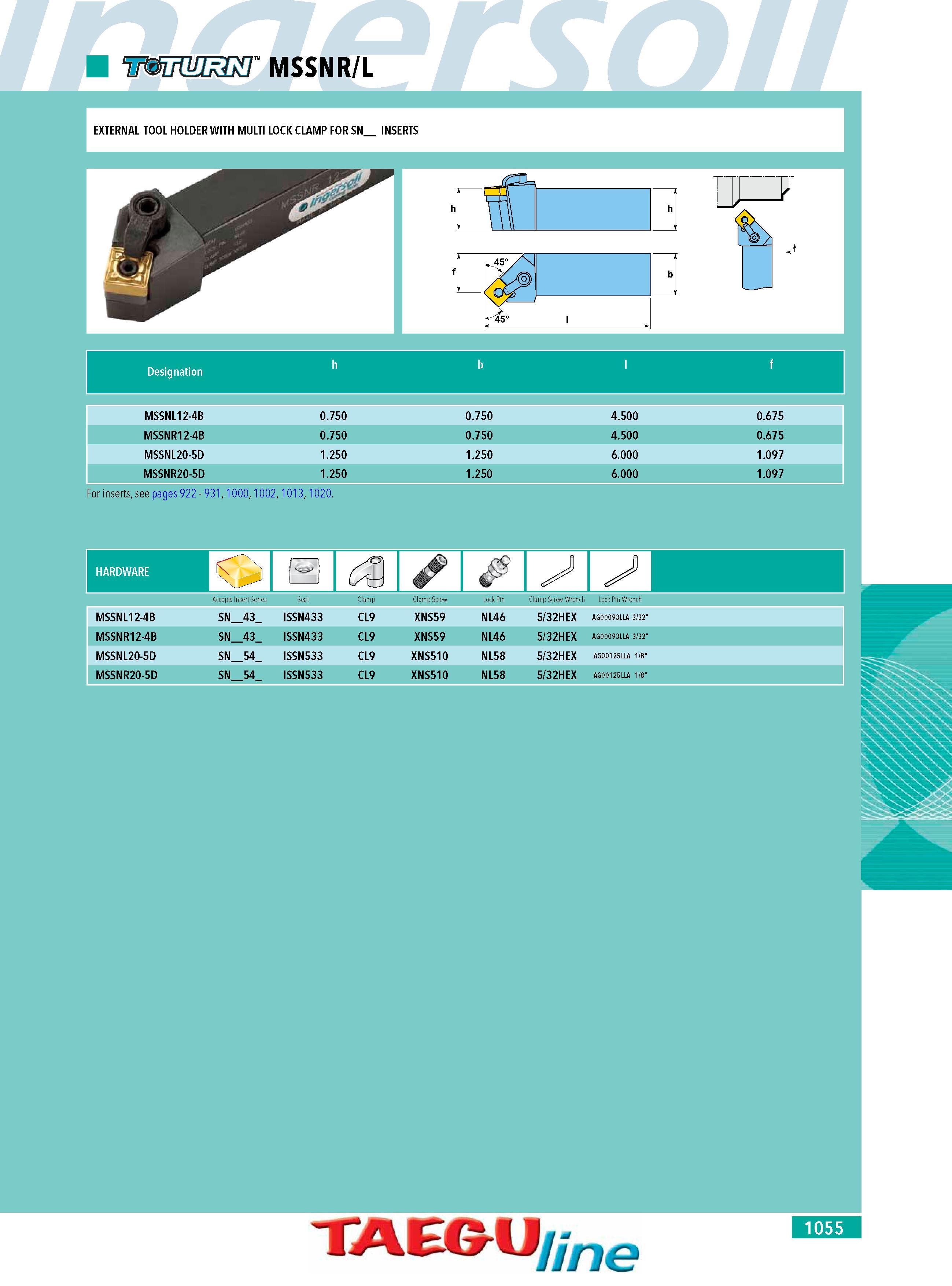

MSSNR L EXTERNAL TOOL HOLDER WITH MULTI LOCK CLAMP FOR SN INSERTS MSSNL12-4B 0.750 0.750 4.500 0.675 MSSNR12-4B 0.750 0.750 4.500 0.675 MSSNL20-5D 1.250 1.250 6.000 1.097 MSSNR20-5D 1.250 1.250 6.000 1.097 For inserts see pages 922 - 931 O 2 O 2 & Accepts Insert Series Clamp Clamp Screw Clamp Screw Wrench Lock Pin Wrench MSSNL12-4B SN 43 ISSN433 CL9 XNS59 NL46 5 32HEX AG00093LLA 3 32" MSSNR12-4B SN 43 ISSN433 CL9 XNS59 NL46 5 32HEX AG00093LLA 3 32" MSSNL20-5D SN 54 ISSN533 CL9 XNS510 NL58 5 32HEX AG00125LLA 1 8" MSSNR20-5D SN 54 ISSN533 CL9 XNS510 NL58 5 32HEX AG00125LLA 1 8" G U ne 1055
