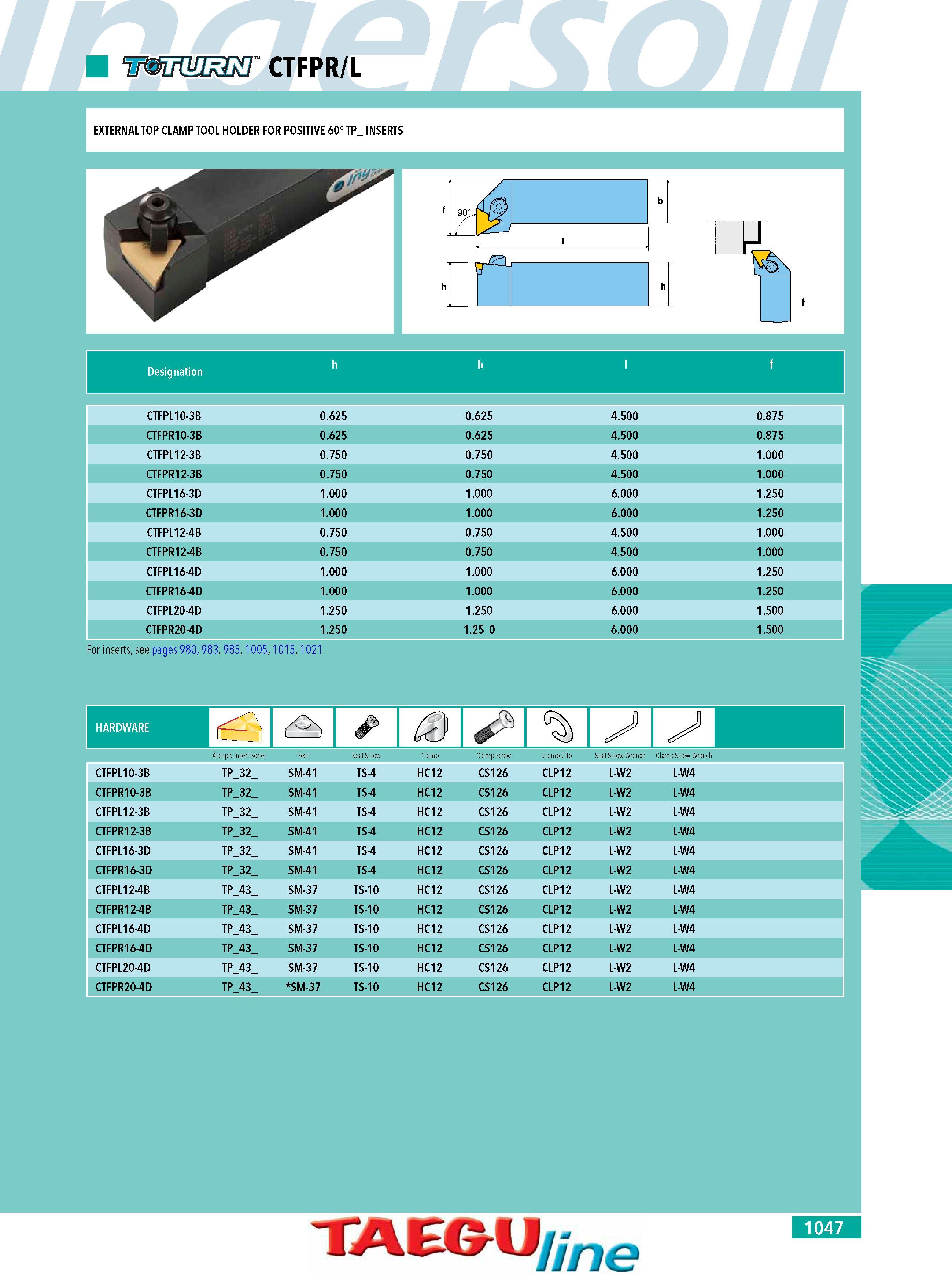

CTFPR L EXTERNAL TOP CLAMP TOOL HOLDER FOR POSITIVE 60 TP INSERTS CTFPL10-3B 0.625 0.625 4.500 0.875 CTFPR10-3B 0.625 0.625 4.500 0.875 CTFPL12-3B 0.750 0.750 4.500 1.000 CTFPR12-3B 0.750 0.750 4.500 1.000 CTFPL16-3D 1.000 1.000 6.000 1.250 CTFPR16-3D 1.000 1.000 6.000 1.250 CTFPL12-4B 0.750 0.750 4.500 1.000 CTFPR12-4B 0.750 0.750 4.500 1.000 CTFPL16-4D 1.000 1.000 6.000 1.250 CTFPR16-4D 1.000 1.000 6.000 1.250 CTFPL20-4D 1.250 1.250 6.000 1.500 CTFPR20-4D 1.250 1.25 0 6.000 1.500 For inserts see pages 980 983 985 1005 1015 1021. Accepts Insert Series Clamp Clamp Screw Clamp Clip Seat Screw Wrench Clamp Screw Wrench CTFPL10-3B TP32 SM-41 TS-4 HC12 CS126 CLP12 L-W2 L-W4 CTFPR10-3B TP32 SM-41 TS-4 HC12 CS126 CLP12 L-W2 L-W4 CTFPL12-3B TP32 SM-41 TS-4 HC12 CS126 CLP12 L-W2 L-W4 CTFPR12-3B TP32 SM-41 TS-4 HC12 CS126 CLP12 L-W2 L-W4 CTFPL16-3D TP32 SM-41 TS-4 HC12 CS126 CLP12 L-W2 L-W4 CTFPR16-3D TP32 SM-41 TS-4 HC12 CS126 CLP12 L-W2 L-W4 CTFPL12-4B TP43 SM-37 TS-10 HC12 CS126 CLP12 L-W2 L-W4 CTFPR12-4B TP43 SM-37 TS-10 HC12 CS126 CLP12 L-W2 L-W4 CTFPL16-4D TP43 SM-37 TS-10 HC12 CS126 CLP12 L-W2 L-W4 CTFPR16-4D TP43 SM-37 TS-10 HC12 CS126 CLP12 L-W2 L-W4 CTFPL20-4D TP43 SM-37 TS-10 HC12 CS126 CLP12 L-W2 L-W4 CTFPR20-4D TP43 SM-37 TS-10 HC12 CS126 CLP12 L-W2 L-W4 1047
