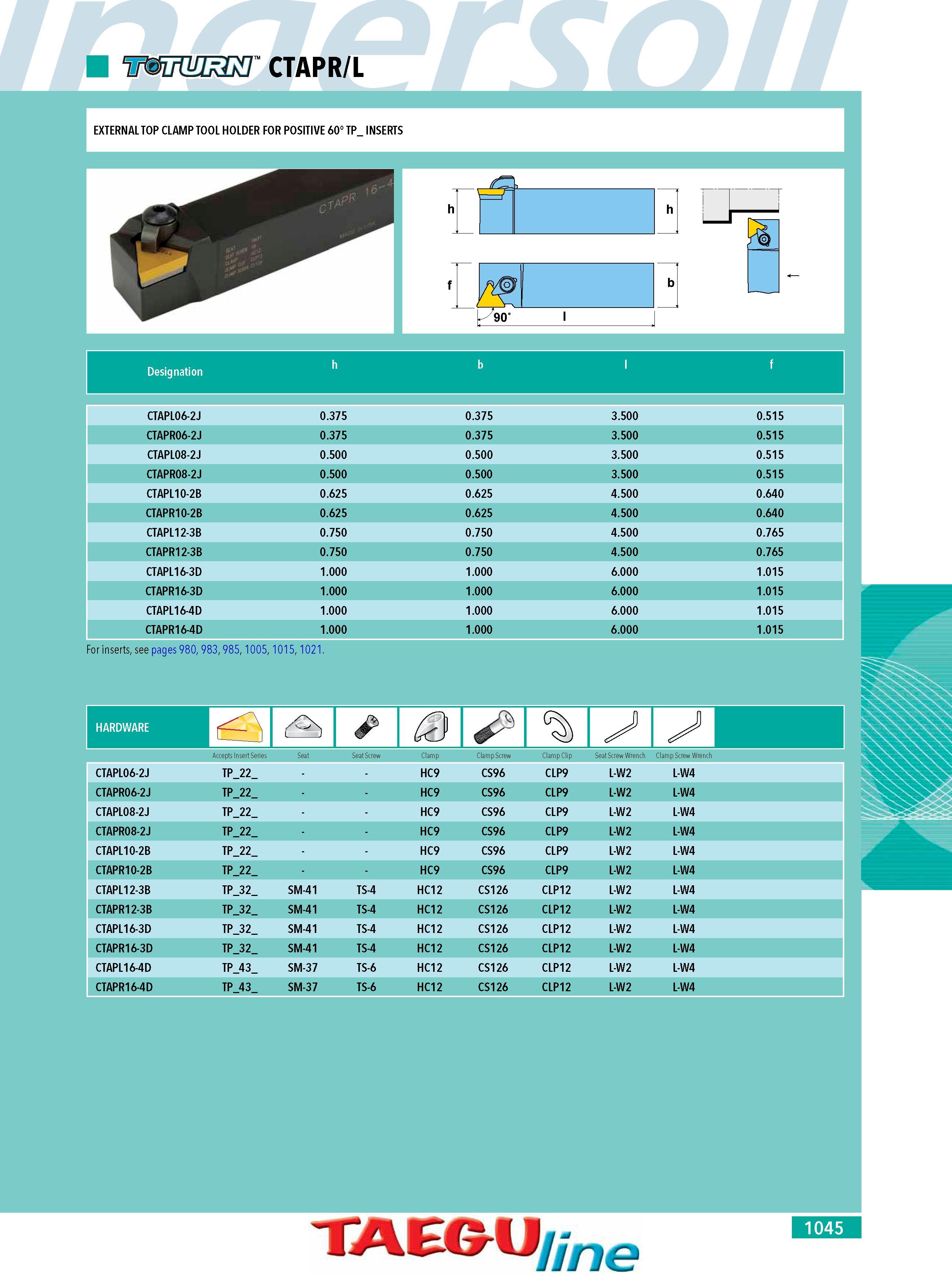

CTAPR L EXTERNAL TOP CLAMP TOOL HOLDER FOR POSITIVE 60 TP INSERTS CTAPL06-2J 0.375 0.375 3.500 0.515 CTAPR06-2J 0.375 0.375 3.500 0.515 CTAPL08-2J 0.500 0.500 3.500 0.515 CTAPR08-2J 0.500 0.500 3.500 0.515 CTAPL10-2B 0.625 0.625 4.500 0.640 CTAPR10-2B 0.625 0.625 4.500 0.640 CTAPL12-3B 0.750 0.750 4.500 0.765 CTAPR12-3B 0.750 0.750 4.500 0.765 CTAPL16-3D 1.000 1.000 6.000 1.015 CTAPR16-3D 1.000 1.000 6.000 1.015 CTAPL16-4D 1.000 1.000 6.000 1.015 CTAPR16-4D 1.000 1.000 6.000 1.015 For inserts see pages 980 983 985 1005 1015 1021. Accepts Insert Series Clamp Clamp Screw Clamp Clip Seat Screw Wrench Clamp Screw Wrench CTAPL06-2J TP22 HC9 CS96 CLP9 L-W2 L-W4 CTAPR06-2J TP22 HC9 CS96 CLP9 L-W2 L-W4 CTAPL08-2J TP22 HC9 CS96 CLP9 L-W2 L-W4 CTAPR08-2J TP22 HC9 CS96 CLP9 L-W2 L-W4 CTAPL10-2B TP22 HC9 CS96 CLP9 L-W2 L-W4 CTAPR10-2B TP22 HC9 CS96 CLP9 L-W2 L-W4 CTAPL12-3B TP32 SM-41 TS-4 HC12 CS126 CLP12 L-W2 L-W4 CTAPR12-3B TP32 SM-41 TS-4 HC12 CS126 CLP12 L-W2 L-W4 CTAPL16-3D TP32 SM-41 TS-4 HC12 CS126 CLP12 L-W2 L-W4 CTAPR16-3D TP32 SM-41 TS-4 HC12 CS126 CLP12 L-W2 L-W4 CTAPL16-4D TP43 SM-37 TS-6 HC12 CS126 CLP12 L-W2 L-W4 CTAPR16-4D TP43 SM-37 TS-6 HC12 CS126 CLP12 L-W2 L-W4 1045
