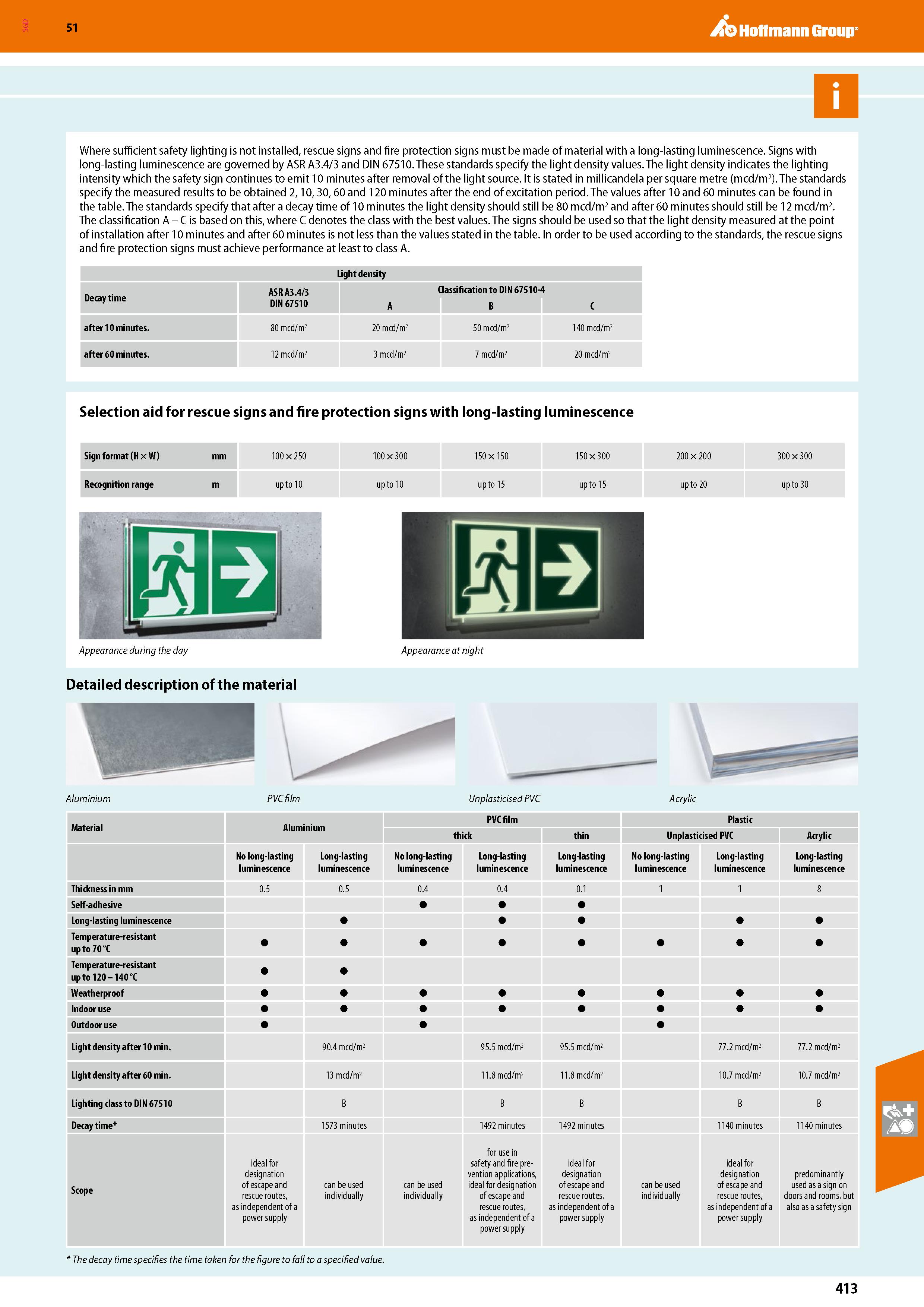

SGD Hoffmann Group 51 Where sufficient safety lighting is not installed, rescue signs and fire protection signs must be made of material with a long-lasting luminescence. Signs with long-lasting luminescence are governed by ASR A3.4/3 and DIN 67510. These standards specify the light density values. The light density indicates the lighting intensity which the safety sign continues to emit 10 minutes after removal of the light source. It is stated in millicandela per square metre (mcd/m2). The standards specify the measured results to be obtained 2, 10, 30, 60 and 120 minutes after the end of excitation period. The values after 10 and 60 minutes can be found in the table. The standards specify that after a decay time of 10 minutes the light density should still be 80 mcd/m2 and after 60 minutes should still be 12 mcd/m2. The classification A - C is based on this, where C denotes the class with the best values. The signs should be used so that the light density measured at the point of installation after 10 minutes and after 60 minutes is not less than the values stated in the table. In order to be used according to the standards, the rescue signs and fire protection signs must achieve performance at least to class A. Light density Decay time ASR A3.4/3 Classification to DIN 67510-4 DIN 67510 A B C after 10 minutes. 80 mcd/m2 20 mcd/m2 50 mcd/m2 140 mcd/m2 after 60 minutes. 12 mcd/m2 3 mcd/m2 7 mcd/m2 20 mcd/m2 Selection aid for rescue signs and fire protection signs with long-lasting luminescence Sign format (H x W) mm 100x250 100x300 150x150 150x300 200 x 200 300x300 Recognition range m up to 10 up to 10 up to 15 up to 15 up to 20 up to 30 Appearance during the day Appearance at night Detailed description of the material Aluminium PVC film Unplasticised PVC Acrylic Material Aluminium PVC film Plastic thick thin Unplasticised PVC Acrylic No long-lasting luminescence Long-lasting luminescence No long-lasting luminescence Long-lasting luminescence Long-lasting luminescence No long-lasting luminescence Long-lasting luminescence Long-lasting luminescence Thickness in mm 0.5 0.5 0.4 0.4 0.1 8 Self-adhesive Long-lasting luminescence Temperature-resistant up to 70 °C Temperature-resistant up to 120 - 140 °C Weatherproof Indoor use Outdoor use Light density after 10 min. 90.4 mcd/m2 95.5 mcd/m2 95.5 mcd/m2 77.2 mcd/m2 77.2 mcd/m2 Light density after 60 min. 13 mcd/m2 11.8 mcd/m2 11.8 mcd/m2 10.7 mcd/m2 10.7 mcd/m2 Lighting class to DIN 67510 B Decay time 1573 minutes 1492 minutes 1492 minutes 1140 minutes 1140 minutes Scope ideal for designation of escape and rescue routes, as independent of a power supply can be used individually can be used individually for use in safety and fire prevention applications, ideal for designation of escape and rescue routes, as independent of a power supply ideal for designation of escape and rescue routes, as independent of a power supply can be used individually ideal for designation of escape and rescue routes, as independent of a power supply predominantly used as a sign on doors and rooms, but also as a safety sign The decay time specifies the time taken for the figure to fall to a specified value. 413
