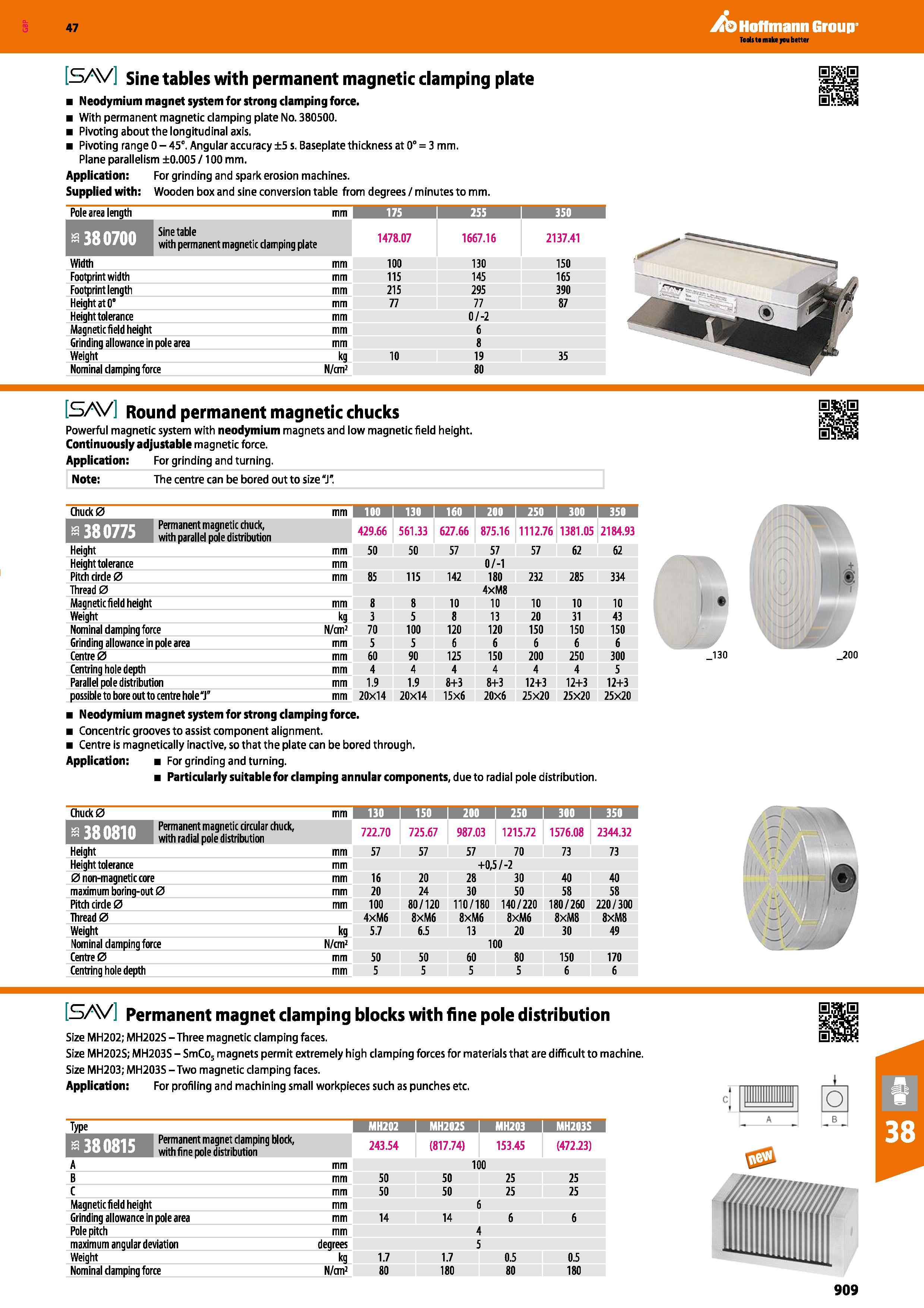

Hoffmann Group 47 S/V Sine tables with permanent magnetic clamping plate Neodymium magnet system for strong clamping force. With permanent magnetic clamping plate No. 380500. Pivoting about the longitudinal axis. Pivoting range 0 - 45°. Angular accuracy ±5 s. Baseplate thickness at 0° = 3 mm. Plane parallelism ±0.005 /100 mm. Application: For grinding and spark erosion machines. Supplied with: Wooden box and sine conversion table from degrees / minutes to mm. Pole area length mm 175 1 255 350 I Sine table with permanent magnetic damping plate 1478.07 1667.16 2137.41 Width mm 100 130 150 Footprint width mm 115 145 165 Footprint length mm 215 295 390 Height at 0° mm 77 77 87 Height tolerance mm 0/-2 Magnetic field height mm 6 Grinding allowance in pole area mm 8 Weight kg 10 19 35 Nominal clamping force N/cm2 80 S/V Round permanent magnetic chucks Powerful magnetic system with neodymium magnets and low magnetic field height. Continuously adjustable magnetic force. Application: For grinding and turning. Note: The centre can be bored out to size “J”. Chuck 0 mm MM MUM f IHn MiM KM Permanent magnetic chuck, with parallel pole distribution 429.66 561.33 627.66 875.16 1112.76 1381.05 2184.93 Height mm 50 50 57 57 57 62 62 Height tolerance mm 0/-1 Pitch circle 0 mm 85 115 142 180 232 285 334 Thread 0 4xM8 Magnetic field height mm 8 8 10 10 10 10 10 Weight kg 3 5 8 13 20 31 43 Nominal damping force N/cm2 70 100 120 120 150 150 150 Grinding allowance in pole area mm 5 5 6 6 6 6 6 Centre 0 mm 60 90 125 150 200 250 300 Centring hole depth mm 4 4 4 4 4 4 5 Parallel pole distribution mm 1.9 1.9 8+3 8+3 12+3 12+3 12+3 Neodymium magnet system for strong clamping force. Concentric grooves to assist component alignment. Centre is magnetically inactive, so that the plate can be bored through. Application: For grinding and turning. Particularly suitable for clamping annular components, due to radial pole distribution. 130 200 Chuck 0 mm 130 I 150 IKM1 250 1 300 I 350 Permanent magnetic circular chuck, with radial pole distribution 722.70 725.67 987.03 1215.72 1576.08 2344.32 Height mm 57 57 57 70 73 73 Height tolerance mm +0,5/-2 0non-magneticcore mm 16 20 28 30 40 40 maximum boring-out 0 mm 20 24 30 50 58 58 Pitch circle 0 mm 100 80/120 110/180 140/220 180/260 220/300 Thread 0 4xM6 8xM6 8xM6 8xM6 8xM8 8xM8 Weight kg 5.7 6.5 13 20 30 49 Nominal clamping force N/cm2 100 Centre 0 mm 50 50 60 80 150 170 Centring hole depth mm 5 5 5 5 6 6 S/V Permanent magnet clamping blocks with fine pole distribution Size MH202; MH202S - Three magnetic clamping faces. Size MH202S; MH203S - SmCo5 magnets permit extremely high clamping forces for materials that are difficult to machine. Size MH203; MH203S - Two magnetic clamping faces. Application: For profiling and machining small workpieces such as punches etc. Type 1 MH202 I MH2025 1 MH203 1 MH203S 1 Permanent magnet clamping block, with fine pole distribution 243.54 (817.74) 153.45 (472.23) A mm 100 B mm 50 50 25 25 C mm 50 50 25 25 Magnetic field height mm 6 Grinding allowance in pole area mm 14 14 6 6 Pole pitch mm 4 maximum angular deviation degrees 5 Weight kg 1.7 1.7 0.5 0.5 Nominal clamping force N/cm2 80 180 80 180
