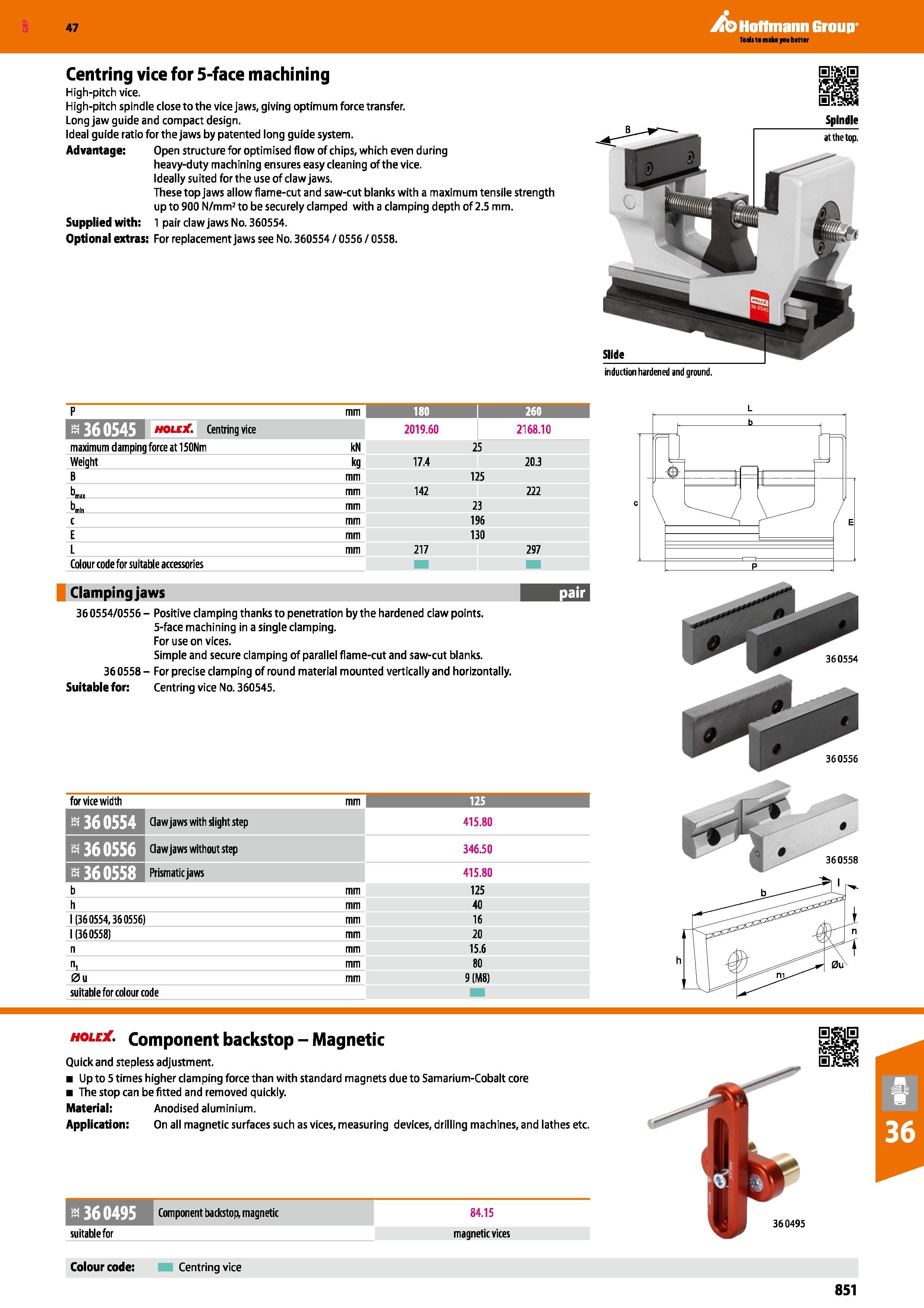

Hoffmann Group 47 Centring vice for 5-face machining High-pitch vice. High-pitch spindle close to the vice jaws, giving optimum force transfer. Long jaw guide and compact design. Ideal guide ratio for the jaws by patented long guide system. Advantage: Open structure for optimised flow of chips, which even during heavy-duty machining ensures easy cleaning of the vice. Ideally suited for the use of claw jaws. These top jaws allow flame-cut and saw-cut blanks with a maximum tensile strength up to 900 N/mm2 to be securely clamped with a clamping depth of 2.5 mm. Supplied with: 1 pair claw jaws No. 360554. Optional extras: For replacement jaws see No. 360554 / 0556 / 0558. p mm 180 1 260 i holoC. Centring vice 2019.60 2168.10 maximum damping force at 150Nm kN 25 Weight kg 17.4 20.3 B mm 125 max mm 142 222 mln mm 23 C mm 196 E mm 130 L mm 217 297 olour code for suitable accessories Clamping jaws 360554/0556 - Positive clamping thanks to penetration by the hardened claw points. 5-face machining in a single clamping. For use on vices. Simple and secure clamping of parallel flame-cut and saw-cut blanks. 36 0558 - For precise clamping of round material mounted vertically and horizontally. Suitable for: Centring vice No. 360545. 360556 for vice width 3 Ki'llWtl Claw jaws with slight step 415.80 ICfillMftl Claw jaws without step 346.50 360558 fi 415.80 b mm 125 h mm 40 I (360554,360556) mm 16 I (360558) mm 20 n mm 15.6 n, mm 80 0u mm 9(M8) suitable for colour code hole . Component backstop - Magnetic Quick and stepless adjustment. Up to 5 times higher clamping force than with standard magnets due to Samarium-Cobalt core The stop can be fitted and removed quickly. Material: Anodised aluminium. Application: On all magnetic surfaces such as vices, measuring devices, drilling machines, and lathes etc. 3 360495 Component backstop, magnetic 84.15 suitable for magnetic vices 360495 Colour code: Centring vice Slide induction hardened and ground. at the top. 360558 851
