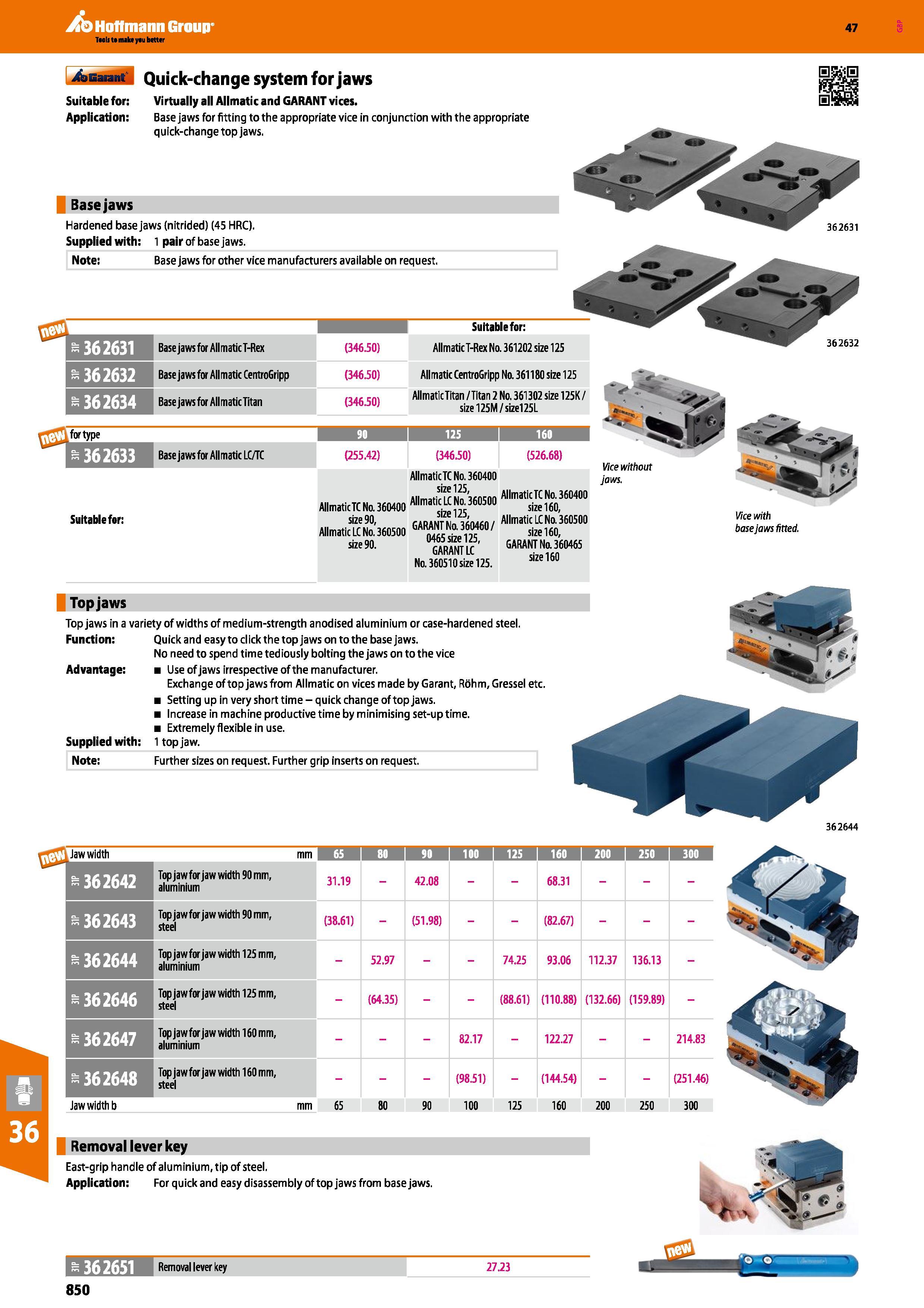

Hoffmann Group 47 Quick-change system for jaws Suitable for: Virtually all Allmatic and GARANT vices. Application: Base jaws for fitting to the appropriate vice in conjunction with the appropriate quick-change top jaws. Base jaws Hardened base jaws (nitrided) (45 HRC). Supplied with: 1 pair of base jaws. Note: Base jaws for other vice manufacturers available on request. 0 Suitablefor: -362631 Base jaws for All matic T-Rex (346.50) Allmatic T-Rex No. 361202 size 125 -362632 Base jaws for All matic CentroGripp (346.50) All matic CentroGripp No. 361180 size 125 -362634 Base jaws for All matic Titan (346.50) Allmatic Titan /Titan 2 No. 361302 size 125K/ size 125M / size125L for type 90 i 125 i 160 Base jaws for All matic LC/TC (255.42) (346.50) (526.68) Suitablefor: Allmatic TC No. 360400 size 90, Allmatic LC No. 360500 size 90. Allmatic TC No. 360400 size 125, Allmatic LC No. 360500 size 125, GARANT No. 360460/ 0465 size 125, GARANT LC No. 360510 size 125. Allmatic TC No. 360400 size 160, Allmatic LC No 360500 size 160, GARANT No. 360465 size 160 Vice with base jaws fitted. Top jaws Top jaws in a variety of widths of medium-strength anodised aluminium or case-hardened steel. Function: Quick and easy to cl ick the top jaws on to the base jaws. No need to spend time tediously bolting the jaws on to the vice Advantage: Use of jaws irrespective of the manufacturer. Exchange of top jaws from Allmatic on vices made by Garant, Rohm, Gressel etc. Setting up in very short time-quick change of top jaws. Increase in machine productive time by minimising set-up time. Extremely flexible in use. Supplied with: 1 top jaw. Note: Further sizes on request. Further grip inserts on request. 362644 22 Jaw width mm 65 80 i 90 i 100 1 125 1 160 w 250 I 300 I - 362642 Top jawfor jaw width 90 mm, aluminium 31.19 - 42.08 68.31 - -362643 Top jawfor jaw width 90 mm, steel (38.61) - (51.98) (82.67) - -362644 Top jaw for jaw width 125 mm, aluminium - 52.97 74.25 93.06 112.37 136.13 - -362646 Top jawfor jaw width 125 mm, steel - (64.35) (88.61) (110.88) (132.66) (159.89) - -362647 Top jawfor jaw width 160 mm, aluminium - 82.17 - 122.27 214.83 -362648 Top jawfor jaw width 160 mm, steel - (98.51) - (144.54) (251.46) Jaw width b mm 65 80 90 100 125 160 200 250 300 Removal lever I East-grip handle of aluminium, tip of steel. Application: Forquickand easydisassemblyoftopjawsfrom base jaws. 362651 Removal lever key 27.23 850
