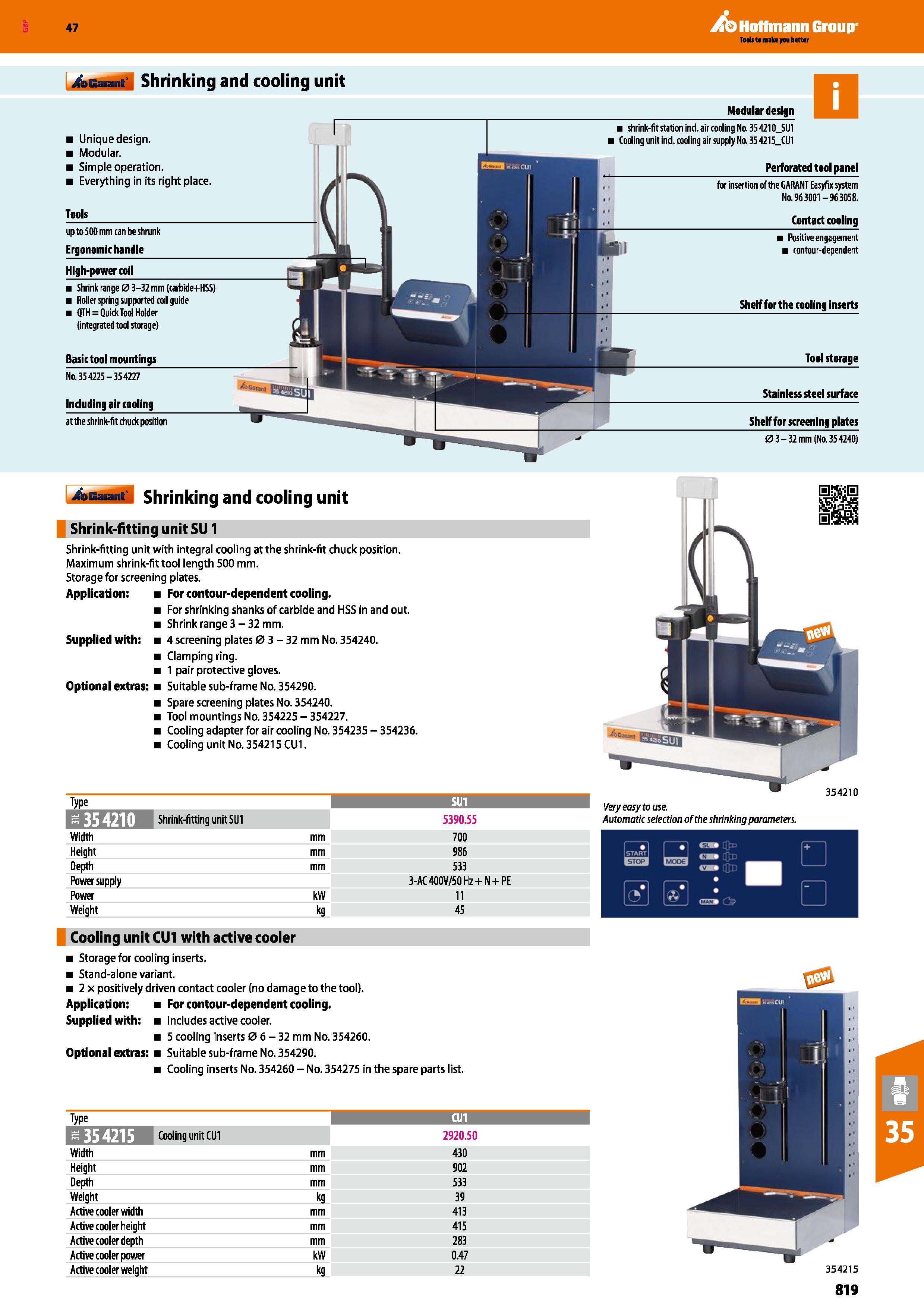

Hoffmann Group 47 4as m Shrinking Unique design. Modular. Simple operation. Everything in its right place. Tools up to500 nm can be shrank Ergonomic handle High-power coll Shrink range 03-32 mm (carbide+HSS) Roller spring supported coil guide QTH = Quick Tool Holder (integrated tool storage) Basic tool mountings No. 354225 - 354227 Including air cooling at the shrink-fit chuck position bGaiant Shrinking and cooling unit Shrink-fitting unitSU 1 Shrink-fitting unit with integral cooling at the shrink-fit chuck position. Maximum shrink-fit tool length 500 mm. Storage for screening plates. Application: For contour-dependent cooling. For shrinking shanks of carbide and MSS in and out. Shrink range 3-32 mm. Supplied with: 4 screening plates 0 3 - 32 mm No. 354240. Clamping ring. 1 pair protective gloves. Optional extras: Suitable sub-frame No. 354290. Spare screening plates No. 354240. Tool mountings No. 354225 - 354227. Cooling adapter for air cooling No. 354235 - 354236. Cooling unit No. 354215 CU1. Type SU1 Shrink-fitting unit SU1 5390.55 Width mm 700 Height mm 986 Depth mm 533 Power supply 3-AC400V/50 Hz + N + PE Power kW 11 Weight kg 45 Cooling unit CU1 with active cooler Storage for cooling inserts. Stand-alone variant. 2 x positively driven contact cooler (no damage to the tool). Application: For contour-dependent cooling. Supplied with: Includes active cooler. 5 cooling inserts 0 6 - 32 mm No. 354260. Optional extras: Suitable sub-frame No. 354290. Cooling inserts No. 354260 - No. 354275 in the spare parts list. Type CU1 1 1-354215 M 2920.50 Width mm 430 Height mm 902 Depth mm 533 Weight kg 39 Active cooler width mm 413 Active cooler height mm 415 Active cooler depth mm 283 Active cooler power kW 0.47 Active cooler weight kg 22 354215 819 and cooling unit Modular design 03-32mm (No.354240) shrink-fit station ind. air cooling No. 35 4210_SU1 Cooling unit ind. cooling air supply No. 35 4215_CU1 for insertion of the GARANT Easyfix system No. 96 3001 -963058. Contact cooling Tool storage Stainless steel surface Shelf for screening plates Perforated tool panel Positive engagement contour-dependent Shelf for the cooling inserts Very easy to use. Automatic selection of the shrinking parameters.
