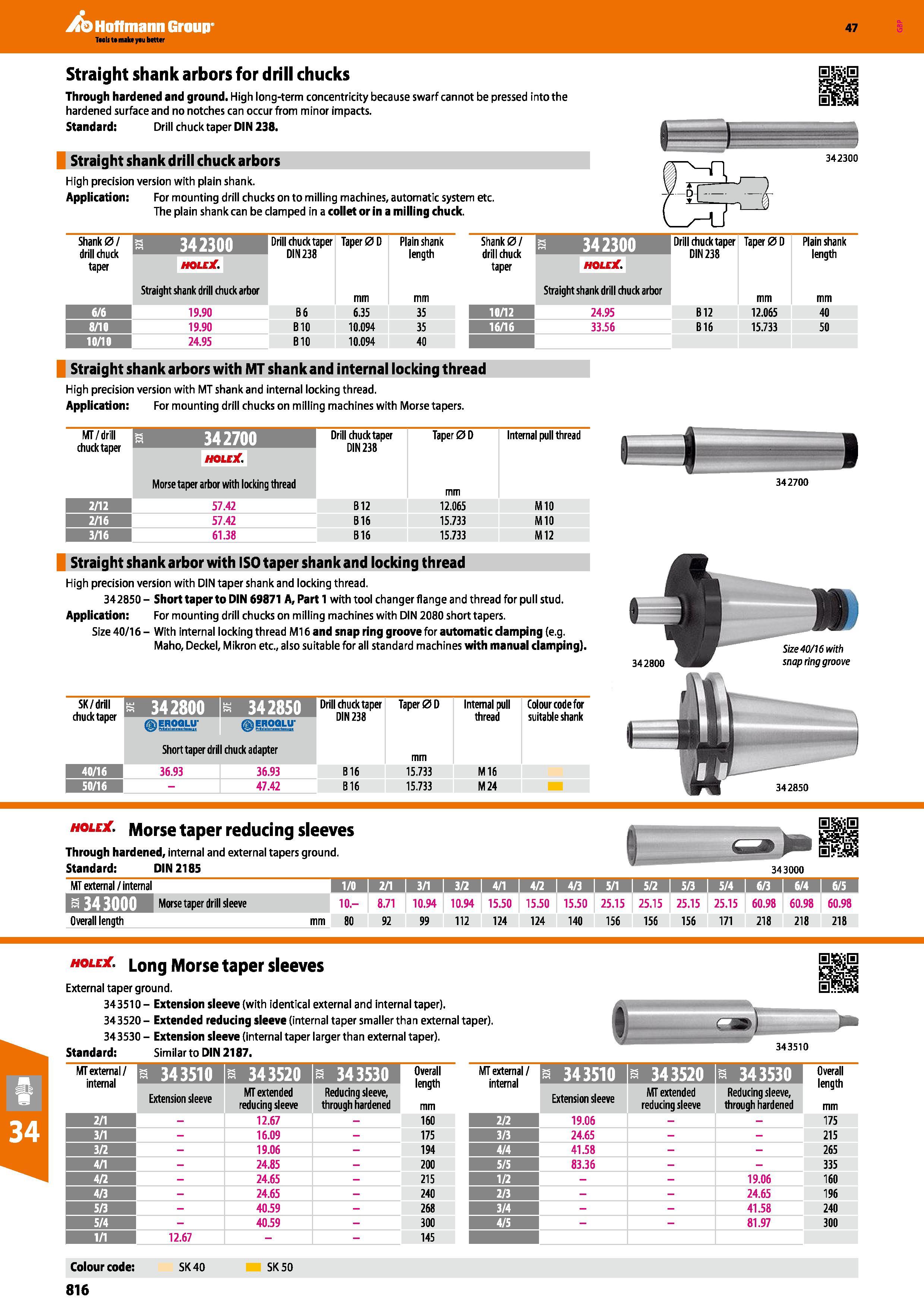

816 Каталог HOFFMANN GROUP 2016 Станочный режущий и вспомогательный инструмент Вер. 47 Стр.816

Каталог HOFFMANN GROUP 2016 Режущий инструмент и оснастка Стр. 816 0816 ENG Lab2u

Hoffmann Group 47 Straight shank arbors for drill chucks Through hardened and ground. High long-term concentricity because swarf cannot be pressed into the hardened surface and no notches can occur from minor impacts. Standard: Drill chuck taper DIN 238. Straight shank drill chuck arbors High precision version with plain shank. Application: For mounting drill chucks on to milling machines, automatic system etc. The plain shank can be clamped in a collet or in a milling chuck. Shank 0/ drill chuck taper 3 342300 Drill chuck taper DIN 238 Taper 0 D Plain shank length Shank 0/ drill chuck taper 342300 Drill chuck taper DIN 238 Taper 0 D Plain shank length mu/. HOLClC. Straight shank drill chuck arbor mm Straight shank drill chuck arbor mm 6/6 19.90 B6 6.35 35 10/12 24.95 B12 12.065 40 8/10 19.90 B10 10.094 35 16/16 33.56 B16 15.733 50 10/10 24.95 B10 10.094 40 Straight shank arbors with MT shankand internal locking thread High precision version with MT shank and internal locking thread. Application: For mounting drill chucks on milling machines with Morse tapers. MT/drill chuck taper a 342700 Drill chuck taper DIN 238 Taper 0 D Internal pull thread HOLE/. Morse taper arbor with locking thread mm 2/12 57.42 B12 12.065 M10 2/16 j 57.42 B16 15.733 M10 3/16 61.38 B16 15.733 M12 Straight shank arbor with ISO taper shank and locking thread High precision version with DIN taper shank and locking thread. 342850- Short taper to DIN 69871 A, Parti with tool changer flange and thread for pull stud. Application: For mounting drill chucks on milling machines with DIN 2080 short tapers. Size 40/16 - With internal locking thread Ml 6 and snap ring groove for automatic clamping (e.g. Maho, Deckel, Mikron etc., also suitable for all standard machines with manual clamping). 342700 SK/drill chuck taper Drill chuck taper DIN 238 Taper 0 D Internal pull Colour code for thread suitable shank (J EROQLU EROQLU' Short taper drill chuck adapter mm 40/16 36.93 36.93 B16 15.733 M16 50/16 47.42 B16 15.733 M24 hole . Morse taper reduci ng sleeves Through hardened, internal and external tapers ground. Standard: DIN 2185 343000 MT external / internal Morse taper drill sleeve 10.- 8.71 10.94 10.94 15.50 15.50 15.50 25.15 25.15 25.15 25.15 60.98 60.98 60.98 Overall length mm 80 92 99 112 124 124 140 156 156 156 171 218 218 218 hole . Long Morse taper sleeves External taper ground. 343510 - Extension sleeve (with identical external and internal taper). 343520 - Extended reducing sleeve (internal taper smaller than external taper). 343530 - Extension sleeve (internal taper larger than external taper). Standard: Similar to DIN 2187. 343510 MT external/ internal a 343510 s 34 3530 Overall MT external / length internal mm s 343510 a 343520 a 343530 Overall length mm Extension sleeve MT extended reducing sleeve Reducing sleeve, through hardened Extension sleeve MT extended reducing sleeve Reducing sleeve, through hardened 2/1 - 12.67 - 160 2/2 19.06 - - 175 3/1 - 16.09 - 175 3/3 24.65 215 3/2 - 19.06 - 194 4/4 41.58 265 4/1 - 24.85 - 200 5/5 83.36 335 4/2 - 24.65 - 215 1/2 19.06 160 4/3 - 24.65 - 240 2/3 24.65 196 5/3 - 40.59 - 268 3/4 41.58 240 5/4 - 40.59 - 300 4/5 81.97 300 1/1 12.67 145 Colour code: SK40 SK50 342850 Size 40/16 with snap ring groove 342800 816
