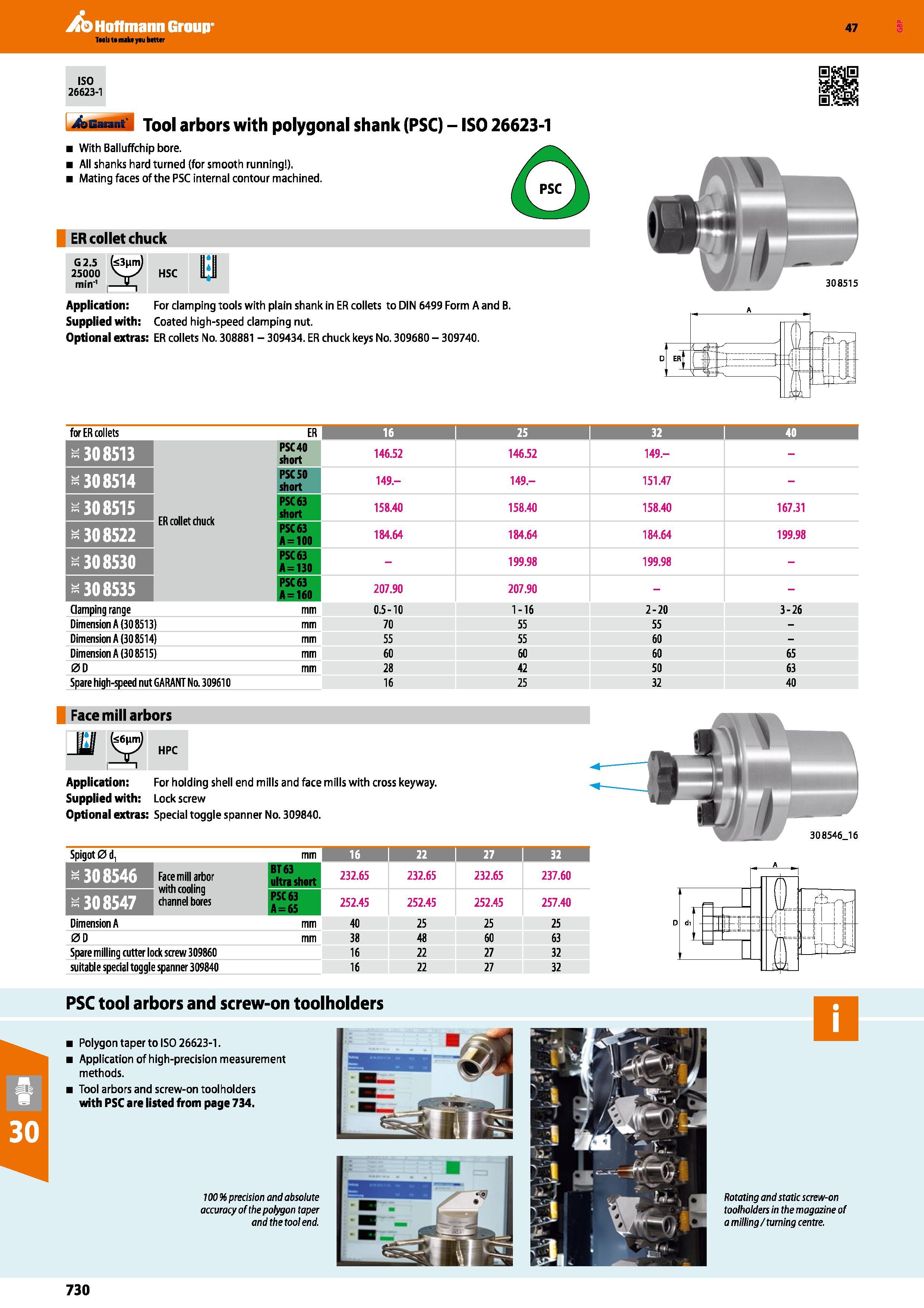

730 Каталог HOFFMANN GROUP 2016 Станочный режущий и вспомогательный инструмент Вер. 47 Стр.730

Каталог HOFFMANN GROUP 2016 Режущий инструмент и оснастка Стр. 730 0730 ENG Lab2u

Hoffmann Group 47 ISO 26623-1 4asat M Tool arbors with polygonal shank (PSC) - ISO 26623-1 With Balluffchip bore. All shanks hard turned (for smooth running ). Mating faces of the PSC internal contour machined. ERcolletchuck G2.5 (<3nmJ 25000 V/ HSC min'1 x-, Application: For clamping tools with plain shank in ER collets to DIN 6499 Form A and B. Supplied with: Coated high-speed clamping nut. Optional extras: ER collets No. 308881 - 309434. ER chuck keys No. 309680 - 309740. , 4 +- B.( f +- 308515 for ER collets ER 16 25 32 40 308513 PSC 40 short 146.52 146.52 149.- - -30 8514 PSC 50 short 149 149- 151.47 - 308515 ERcolletchuck PSC 63 short 158.40 158.40 158.40 167.31 -308522 PSC 63 A = 100 184.64 184.64 184.64 199.98 -308530 PSC 63 A = 130 - 199.98 199.98 - -308535 PSC 63 A = 160 207.90 207.90 Clamping range mm 0.5-10 1-16 2-20 3-26 Dimension A (308513) mm 70 55 55 - Dimension A (308514) mm 55 55 60 - Dimension A (30 8515) mm 60 60 60 65 0D mm 28 42 50 63 Spare high-speed nut GARANT No. 309610 16 25 32 40 Face mill arbors HPC HI _Bl Application: For holding shell end mills and face mills with Supplied with: Lock screw Optional extras: Special toggle spanner No. 309840. cross keyway. Spigot 0 d1 mm 16 22 27 32 Face mill arbor BT63 ultra short 232.65 232.65 232.65 237.60 -30 8547 with cooling channel bores PSC 63 A = 65 252.45 252.45 252.45 257.40 Dimension A mm 40 25 25 25 0D mm 38 48 60 63 Spare milling cutter lock screw 309860 16 22 27 32 suitable special toggle spanner 309840 16 22 27 32 PSC tool arbors and screw-on toolholders Polygon taper to ISO 26623-1. Application of high-precision measurement methods. Tool arbors and screw-on toolholders with PSC are listed from page 734. 100 % precision and absolute accuracy of the polygon taper and the tool end. Rotating and static screw-on toolholders in the magazine of a milling/turning centre. 730
