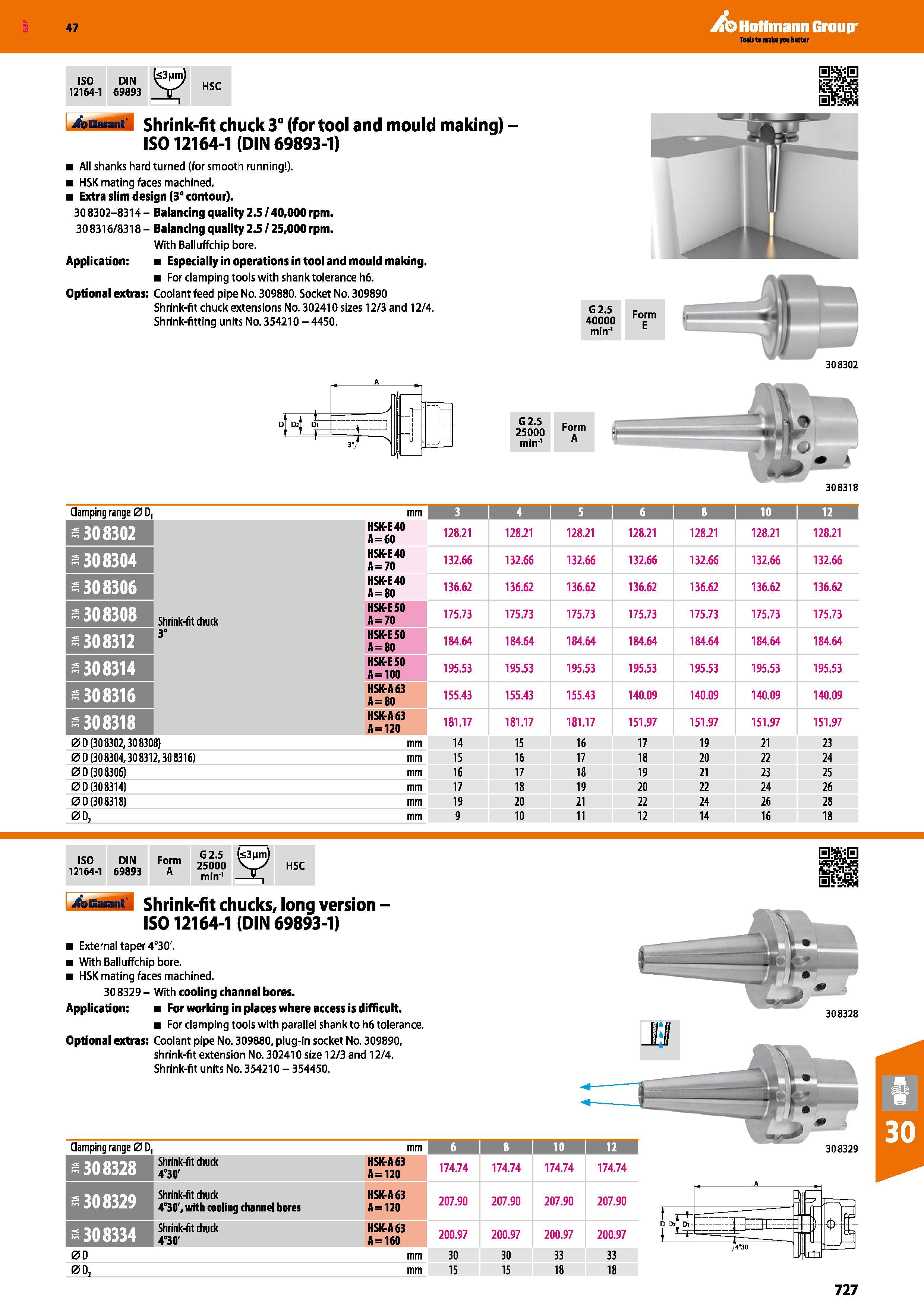

727 Каталог HOFFMANN GROUP 2016 Станочный режущий и вспомогательный инструмент Вер. 47 Стр.727

Каталог HOFFMANN GROUP 2016 Режущий инструмент и оснастка Стр. 727 0727 ENG Lab2u

47 ISO DIN 12164-1 69893 Hoffmann Group HSC 4aBM id Shrink-fit chuck 3° (for tool and mould making) IS012164-1 (DIN 69893-1) All shanks hard turned (for smooth running ). HSK mating faces machined. Extra slim design (3° contour). 30 8302-8314 - Balancing quality 2.5 / 40,000 rpm. 308316/8318 - Balancing quality 2.5 / 25,000 rpm. With Balluffchip bore. Application: Especially in operations in tool and mould making. For clamping tools with shank tolerance h6. Optional extras: Coolant feed pipe No. 309880. Socket No. 309890 Shrink-fit chuck extensions No. 302410 sizes 12/3 and 12/4. Shrink-fitting units No. 354210 -4450. G 2.5 40000 min'1 Form E G 2.5 25000 . min-1 Form Si- 308318 Clamping range 0 D. mm 3 1 4 1 5 1 6 10 I 12 1 -308302 Shrink-fit chuck HSK-E40 A = 60 128.21 128.21 128.21 128.21 128.21 128.21 128.21 3 308304 HSK-E40 A = 70 132.66 132.66 132.66 132.66 132.66 132.66 132.66 3 308306 HSK-E40 A = 80 136.62 136.62 136.62 136.62 136.62 136.62 136.62 3 308308 HSK-E50 A = 70 175.73 175.73 175.73 175.73 175.73 175.73 175.73 3 308312 3“ HSK-E50 A = 80 184.64 184.64 184.64 184.64 184.64 184.64 184.64 3 308314 HSK-E50 A = 100 195.53 195.53 195.53 195.53 195.53 195.53 195.53 3 308316 HSK-A 63 A = 80 155.43 155.43 155.43 140.09 140.09 140.09 140.09 3 308318 HSK-A 63 A = 120 181.17 181.17 181.17 151.97 151.97 151.97 151.97 0D (30 8302,30 8308) mm 14 15 16 17 19 21 23 0 D (308304,308312,308316) mm 15 16 17 18 20 22 24 0D (308306) mm 16 17 18 19 21 23 25 0D (308314) mm 17 18 19 20 22 24 26 0D (30 8318) mm 19 20 21 22 24 26 28 0D2 mm 9 10 11 12 14 16 18 ISO 12164-1 DIN 69893 Form A G 2.5 25000 min-1 fe3iim) HSC I j&Gaiant' Shrink-fit chucks, long version -IS012164-1 (DIN 69893-1) External taper 4°30'. With Balluffchip bore. HSK mating faces machined. 308329- With cooling channel bores. Application: For working in places where access is difficult. For clamping tools with parallel shank to h6 tolerance. Optional extras: Coolant pipe No. 309880, plug-in socket No. 309890, shrink-fit extension No. 302410 size 12/3 and 12/4. Shrink-fit units No. 354210 - 354450. 308328 Clamping range 0 D. mm 6 8 10 1 12 3 308328 Shrink-fit chuck 4°30' HSK-A 63 A = 120 174.74 174.74 174.74 174.74 3 308329 Shrink-fit chuck 4°3(r,with cooling channel bores HSK-A 63 A = 120 207.90 207.90 207.90 207.90 3 308334 Shrink-fit chuck 4°3(T HSK-A 63 A = 160 200.97 200.97 200.97 200.97 0D mm 30 30 33 33 0D2 mm 15 15 18 18 727
