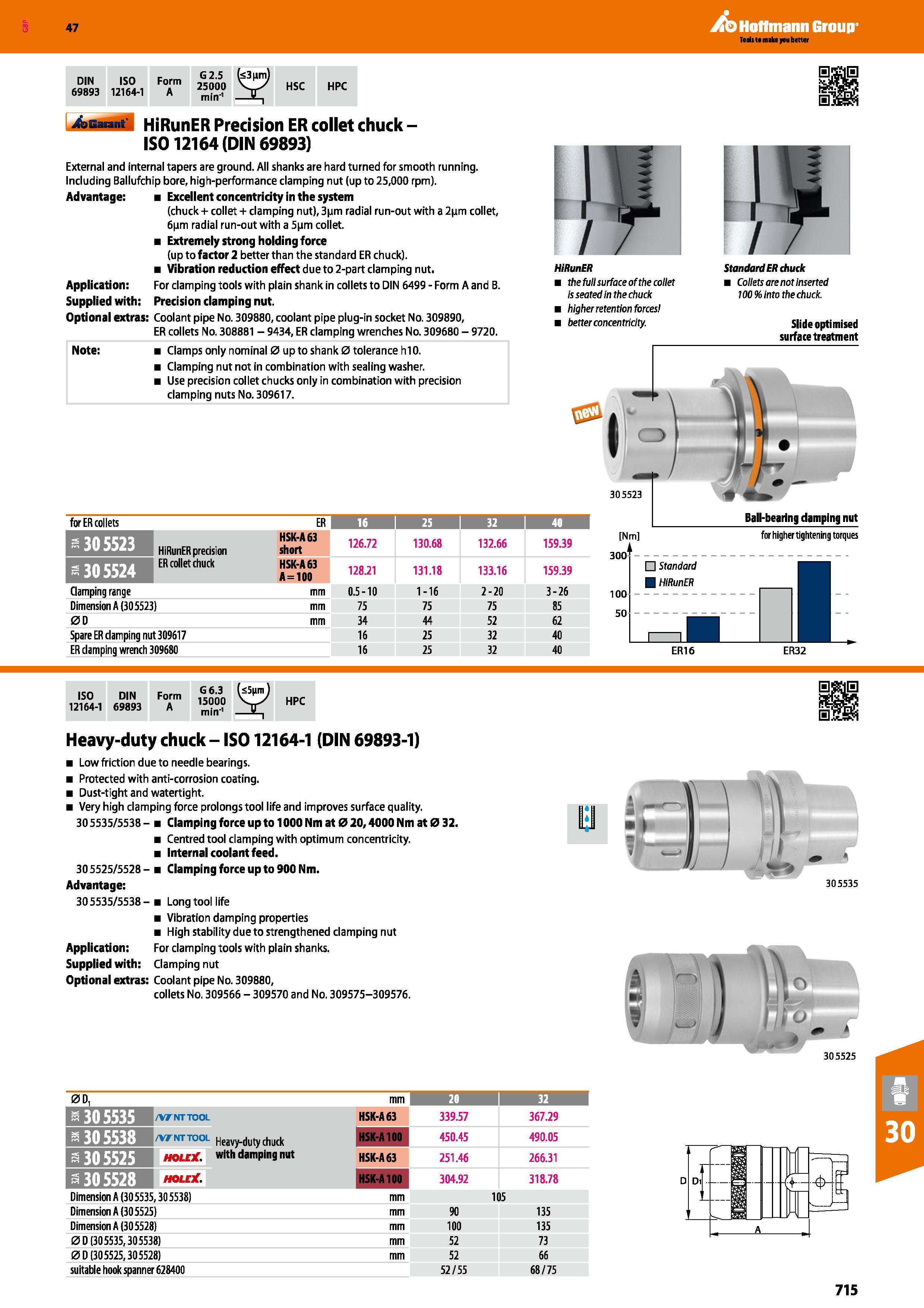

715 Каталог HOFFMANN GROUP 2016 Станочный режущий и вспомогательный инструмент Вер. 47 Стр.715

Каталог HOFFMANN GROUP 2016 Режущий инструмент и оснастка Стр. 715 0715 ENG Lab2u

Hoffmann Group 47 DIN ISO 69893 12164-1 Form A G 2,5 (<3nm) 25000 V-X min'1 JLj HSC HPC 4aBM id HiRunER Precision ER collet chuck -IS012164 (DIN 69893) External and internal tapers are ground. All shanks are hard turned for smooth running. Including Ballufchip bore, high-performance clamping nut (up to 25,000 rpm). Advantage: Excellent concentricity in the system (chuck + collet + clamping nut), 3(jm radial run-out with a 2(jm collet, 6 jm radial run-out with a 5 im collet. Extremely strong holding force (up to factor 2 better than the standard ER chuck). Vibration reduction effect due to 2-part clamping nut. Application: For clamping tools with plain shank in collets to DIN 6499 - Form A and B. Supplied with: Precision clamping nut. Optional extras: Coolant pipe No. 309880, coolant pipe plug-in socket No. 309890, ER collets No. 308881 - 9434, ER clamping wrenches No. 309680 - 9720. Clamps only nominal 0 up to shank 0 tolerance hi 0. Clamping nut not in combination with sealing washer. Use precision collet chucks only in combination with precision clamping nuts No. 309617. HiRunER m the full surface of the collet Is seated In the chuck m higher retention forces m better concentricity. Standard ER chuck m Collets are not inserted 100% into the chuck. Slide optimised surface treatment I C3 for ER collets ER 16 1 25 1 32 i 40 I -305523 HiRunER precision HSK-A63 short 126.72 130.68 132.66 159.39 a 30 5524 ER collet chuck HSK-A63 A = 100 128.21 131.18 133.16 159.39 Clamping range mm 0.5-10 1-16 2-20 3-26 Dimension A (305523) mm 75 75 75 85 0D mm 34 44 52 62 Spare ER clamping nut 309617 16 25 32 40 ER clamping wrench 309680 16 25 32 40 305523 Ball-bearing damping nut Nm 300 100 50 Standard HiRunER I II for higher tightening torques ER16 jL ER32 ISO 12164-1 DIN 69893 Form A 6.3 (s5nm) Q00 V-X in'1 S-, G6. 15000 min HPC Heavy-duty chuck - IS012164-1 (DIN 69893-1) Low friction due to needle bearings. Protected with anti-corrosion coating. Dust-tight and watertight. Very high clamping force prolongs tool life and improves surface quality. 305535/5538- Clamping force upto 1000 Nm at 0 20,4000 Nm at 0 32. Centred tool clamping with optimum concentricity. Internal coolant feed. 305525/5528- Clamping force up to 900 Nm. Advantage: 305535/5538- Long tool life Vibration damping properties High stability due to strengthened clamping nut Application: For clamping tools with plain shanks. Supplied with: Clamping nut Optional extras: Coolant pipe No. 309880, collets No. 309566 - 309570 and No. 309575-309576. V\ \ Y\ 305535 tiro 0, 305525 0D. mm 20 32 305535 /Vy NT TOOL HSK-A63 339.57 367.29 3 305538 /vy nt tool Heavy-duty chuck HSK-A100 450.45 490.05 pj 305525 holeX, wKh damping nut HSK-A63 251.46 266.31 pi 305528 holeX. HSK-A100 304.92 318.78 Dimension A (305535 ,305538) mm 105 Dimension A (305525 ) mm 90 135 Dimension A (305528 ) mm 100 135 00(305535,305538) mm 52 73 0D (305525,305528) mm 52 66 suitable hook spanner 628400 52/55 68/75 Di Jfl 4-Kfz 1 715
