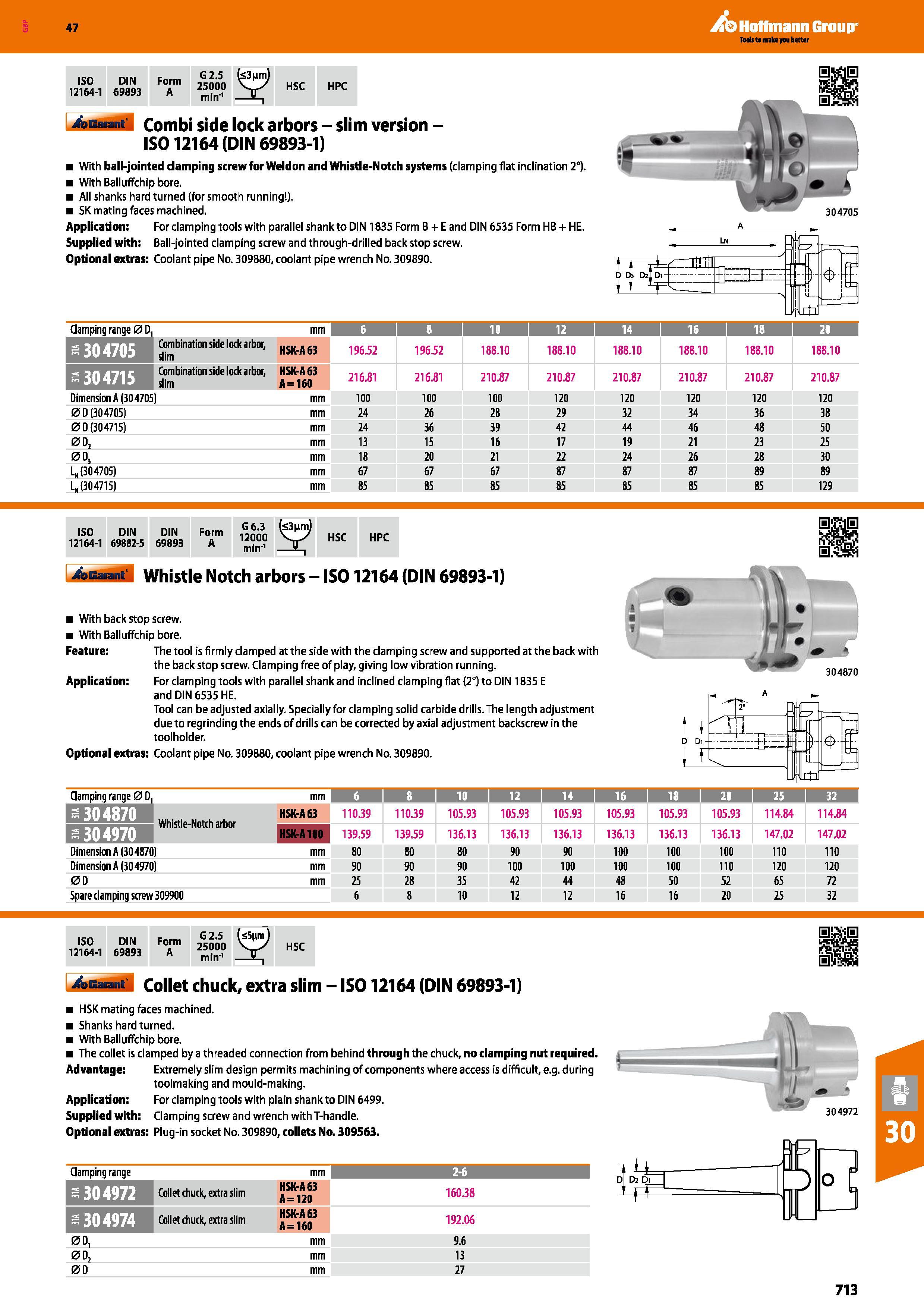

713 Каталог HOFFMANN GROUP 2016 Станочный режущий и вспомогательный инструмент Вер. 47 Стр.713

Каталог HOFFMANN GROUP 2016 Режущий инструмент и оснастка Стр. 713 0713 ENG Lab2u

Hoffmann Group 47 ISO 12164-1 DIN 69893 Form A G 2.5 25000 min'1 b3nm) HSC HPC I 4sbu M Combi side lock arbors - slim version -IS012164 (DIN 69893-1) With ball-jointed damping screw for Weldon and Whistle-Notch systems (clamping flat inclination 2°). With Balluffchip bore. All shanks hard turned (for smooth running ). SK mating faces machined. Application: For clamping tools with parallel shank to DIN 1835 Form B + E and DIN 6535 Form HB + HE. Supplied with: Ball-jointed clamping screw and through-drilled back stop screw. Optional extras: Coolant pipe No. 309880, coolant pipe wrench No. 309890. Clamping range 0 D. mm 6 1 B ; ii 1 12 I 14 16 ; is 20 - 30 4705 Combination side lock arbor, slim HSK-A63 196.52 196.52 188.10 188.10 188.10 188.10 188.10 188.10 s 304715 Combination side lock arbor, slim HSK-A63 A = 160 216.81 216.81 210.87 210.87 210.87 210.87 210.87 210.87 Dimension A (304705 i) mm 100 100 100 120 120 120 120 120 0D (304705) mm 24 26 28 29 32 34 36 38 00(304715) mm 24 36 39 42 44 46 48 50 0D2 mm 13 15 16 17 19 21 23 25 0D3 mm 18 20 21 22 24 26 28 30 L„ (304705) mm 67 67 67 87 87 87 89 89 L„ (304715) mm 85 85 85 85 85 85 85 129 ISO 12164-1 DIN 69882-5 DIN 69893 Form A G6.3 12000 min-1 (<3nm) vjy hsc HPC Whistle Notch arbors - IS012164 (DIN 69893-1) With back stop screw. With Balluffchip bore. Feature: The tool is firmly clamped at the side with the clamping screw and supported at the back with the back stop screw. Clamping free of play, giving low vibration running. Application: For clamping tools with parallel shank and inclined clamping flat (2°) to DIN 1835 E and DIN 6535 HE. Tool can be adjusted axially. Specially for clamping solid carbide drills. The length adjustment due to regrinding the ends of drills can be corrected by axial adjustment backscrew in the toolholder. Optional extras: Coolant pipe No. 309880, coolant pipe wrench No. 309890. % Clamping range 0 D. mm 6 8 10 12 14 16 18 20 25 32 -304870 HSK-A63 110.39 110.39 105.93 105.93 105.93 105.93 105.93 105.93 114.84 114.84 -304970 wnisiie-noicn aruor HSK-A100 139.59 139.59 136.13 136.13 136.13 136.13 136.13 136.13 147.02 147.02 Dimension A (304870) mm 80 80 80 90 90 100 100 100 110 110 Dimension A (304970) mm 90 90 90 100 100 100 100 110 120 120 0D mm 25 28 35 42 44 48 50 52 65 72 Spare clamping screw 309900 6 8 10 12 12 16 16 20 25 32 ISO 12164-1 DIN 69893 Form A G 2.5 25000 min'1 (s5nm) HSC I XbGarant Collet chuck, extra slim - IS012164 (DIN 69893-1) HSK mating faces machined. Shanks hard turned. With Balluffchip bore. The collet is clamped by a threaded connection from behind through the chuck, no clamping nut required. Advantage: Extremely slim design permits machining of components where access is difficult, e.g. during toolmaking and mould-making. Application: For clamping tools with plain shank to DIN 6499. Supplied with: Clamping screw and wrench with T-handle. Optional extras: Plug-in socket No. 309890, collets No. 309563. 304972 Clamping range mm 2-6 I s 30 4972 Collet chuck, extra slim HSK-A63 A = 120 160.38 -304974 Collet chuck, extra slim HSK-A63 A = 160 192.06 0D, mm 9.6 0D2 mm 13 0D mm 27 D Di Di -F 304705 304870 713
